11.

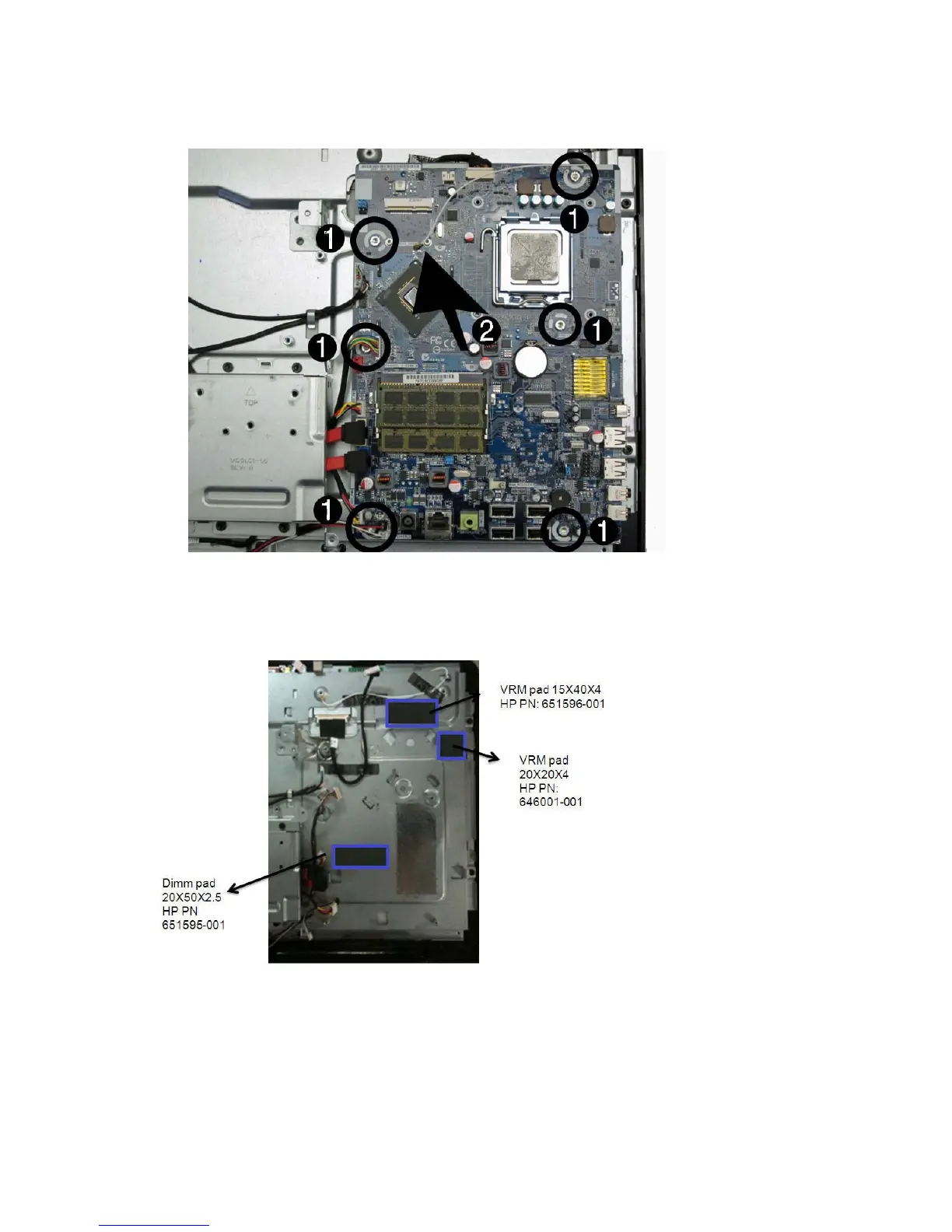

Lift the system board straight up and out of the computer (2).
Figure 7-27 Removing the system board
To install the system board, reverse the removal procedures.
When replacing the system board, note that there are three thermal pads under the board. Use the
following image to determine thermal pad locations and spare part numbers.
58 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
