10.
Remove the six screws that secure the bezel to the computer.

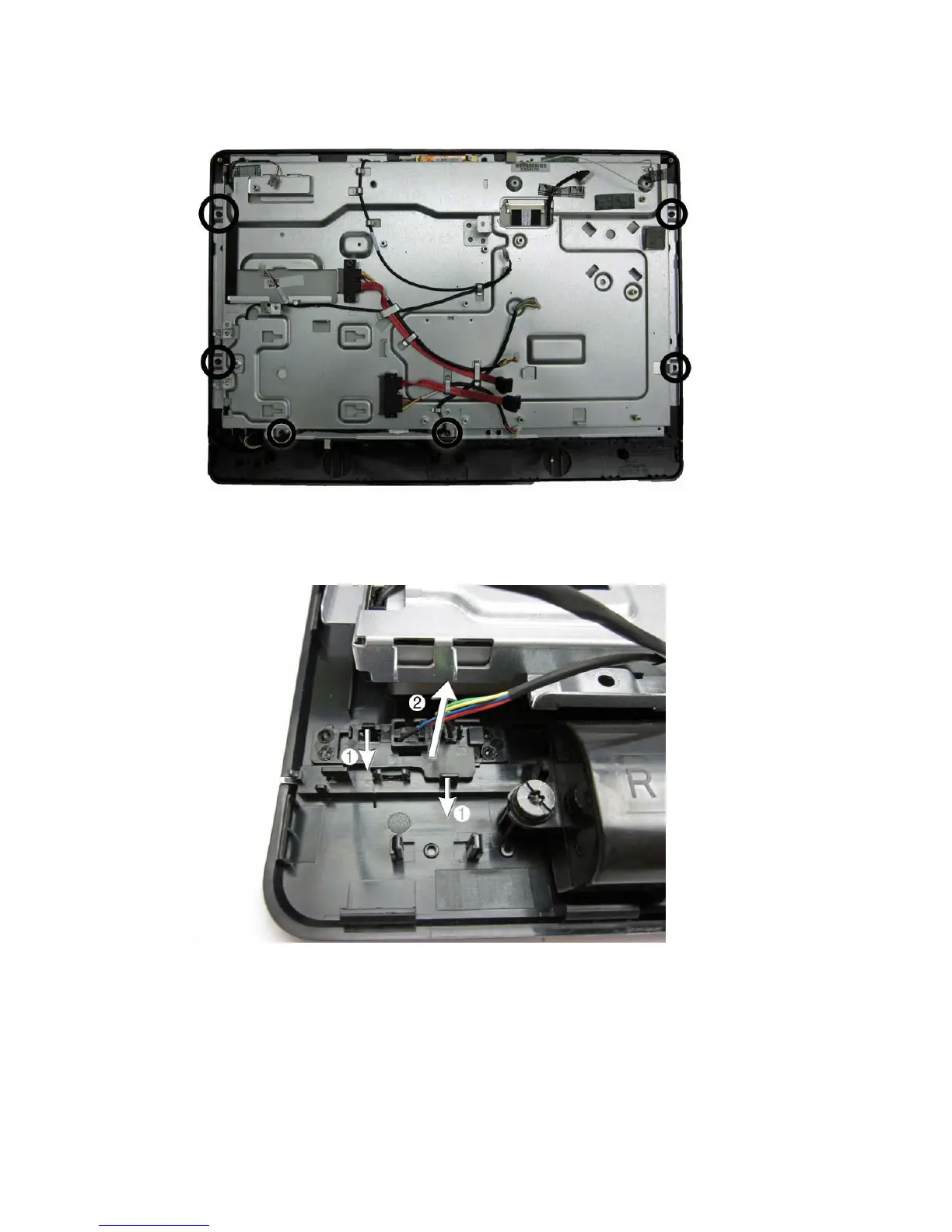

Figure 7-30 Removing the front bezel
11. Disconnect the power button assembly from the bezel by flexing the tabs (1) that secure it to the
bezel and lifting it off the bezel (2).
Figure 7-31 Removing the power button assembly from the bezel
62 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
