Internal components

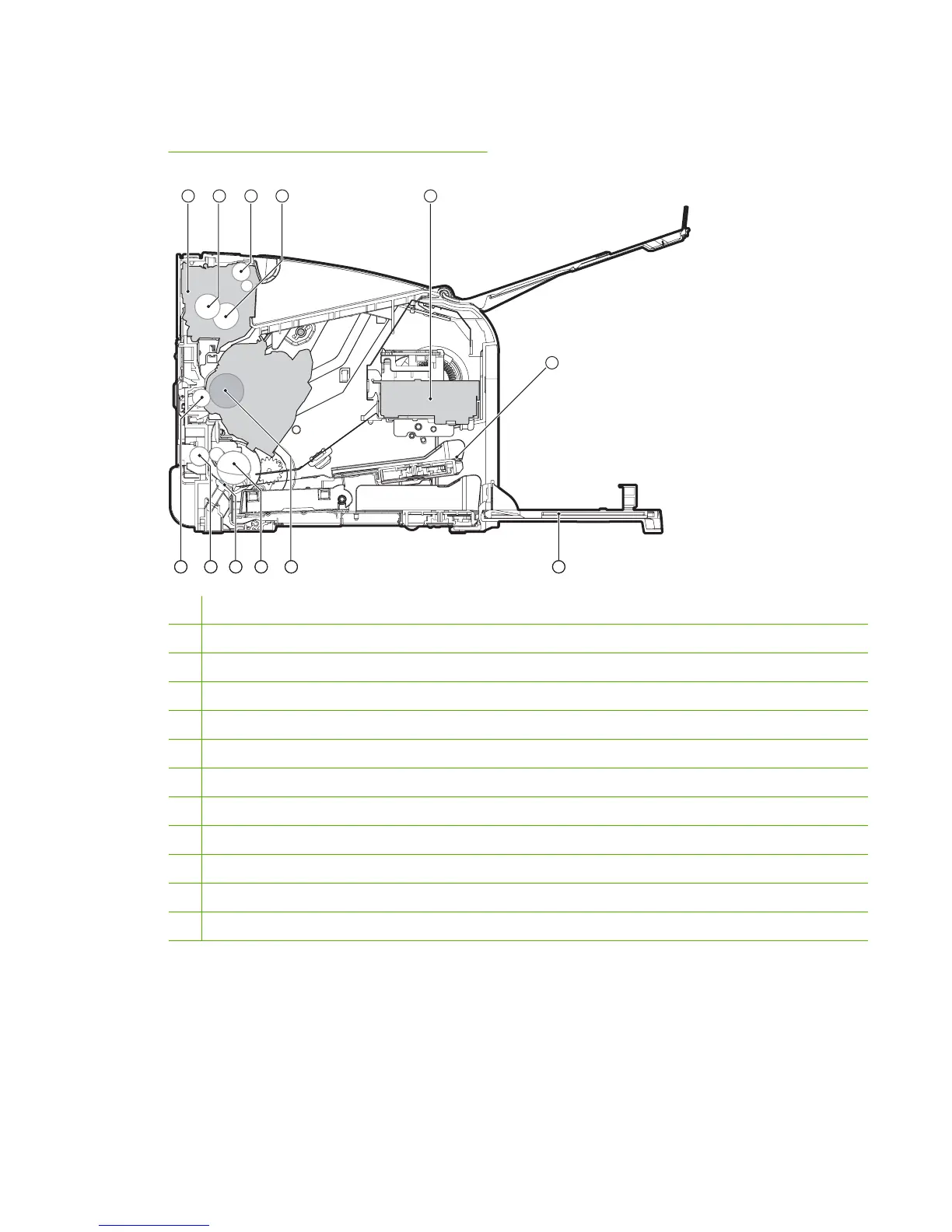

Figure 3-2 Cross-section of printer on page 27 highlights the major internal components.
Figure 3-2 Cross-section of printer
1 2 3 4 5
6
789101112
1 Fusing unit
2 Pressure roller
3 Delivery roller
4 Fusing film
5 Laser/scanner unit
6 Single-sheet-feed slot (HP LaserJet P1006/P1008 only)
7 Multi-purpose tray
8 Photosensitive drum
9 Pickup roller
10 Separation pad
11 Feed roller
12 Transfer roller
ENWW Internal components 27
