Page 2 of 5

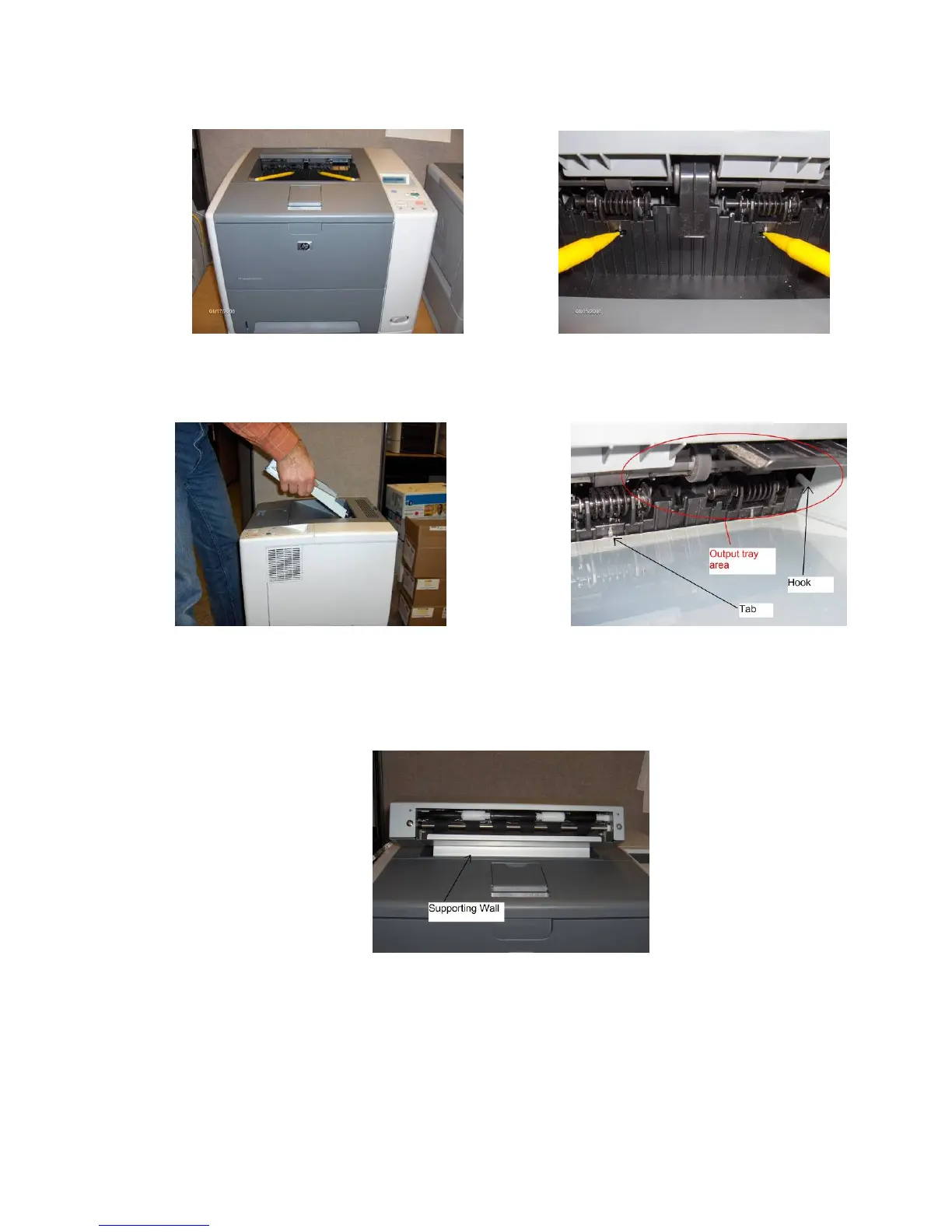

2. Locate the slots on the black plastic near the back of the output tray on top of the printer. In this
photo, two yellow pencils are pointing at the two center slots. There are four slots in the output tray,
but only two are used with the Paper Presenter.
3. Grasping it on both sides, angle the presenter into the output tray as shown, aligning its tabs into
the slots in the output tray. Insure that the hooks on both sides of the Presenter fit snugly over the
black plastic. The photo on the right shows the right side tab in its slot and the right hook, properly
installed.
4. When the Presenter is properly installed, the supporting wall on the bottom of the presenter rests
on the top of the printer, as shown. The Presenter should fit snugly.
