Formatter
1. Remove the right-side cover. See Right-side cover on page 69.
2. Open the formatter cover, and then lift the cover off of the hinges (callout 1) at the back of the cover.
1

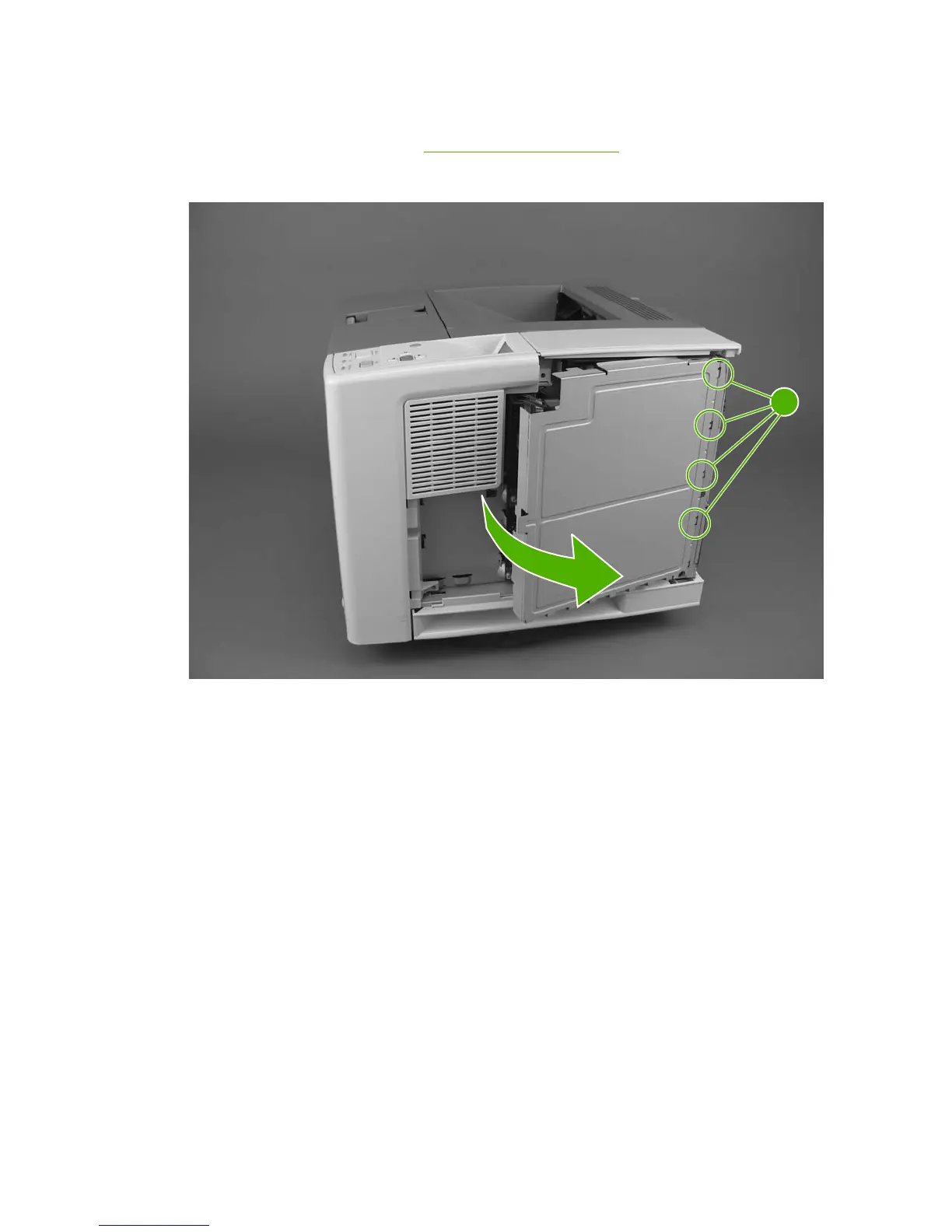

Figure 5-13 Removing the formatter (1 of 3)
80 Chapter 5 Removal and replacement ENWW
