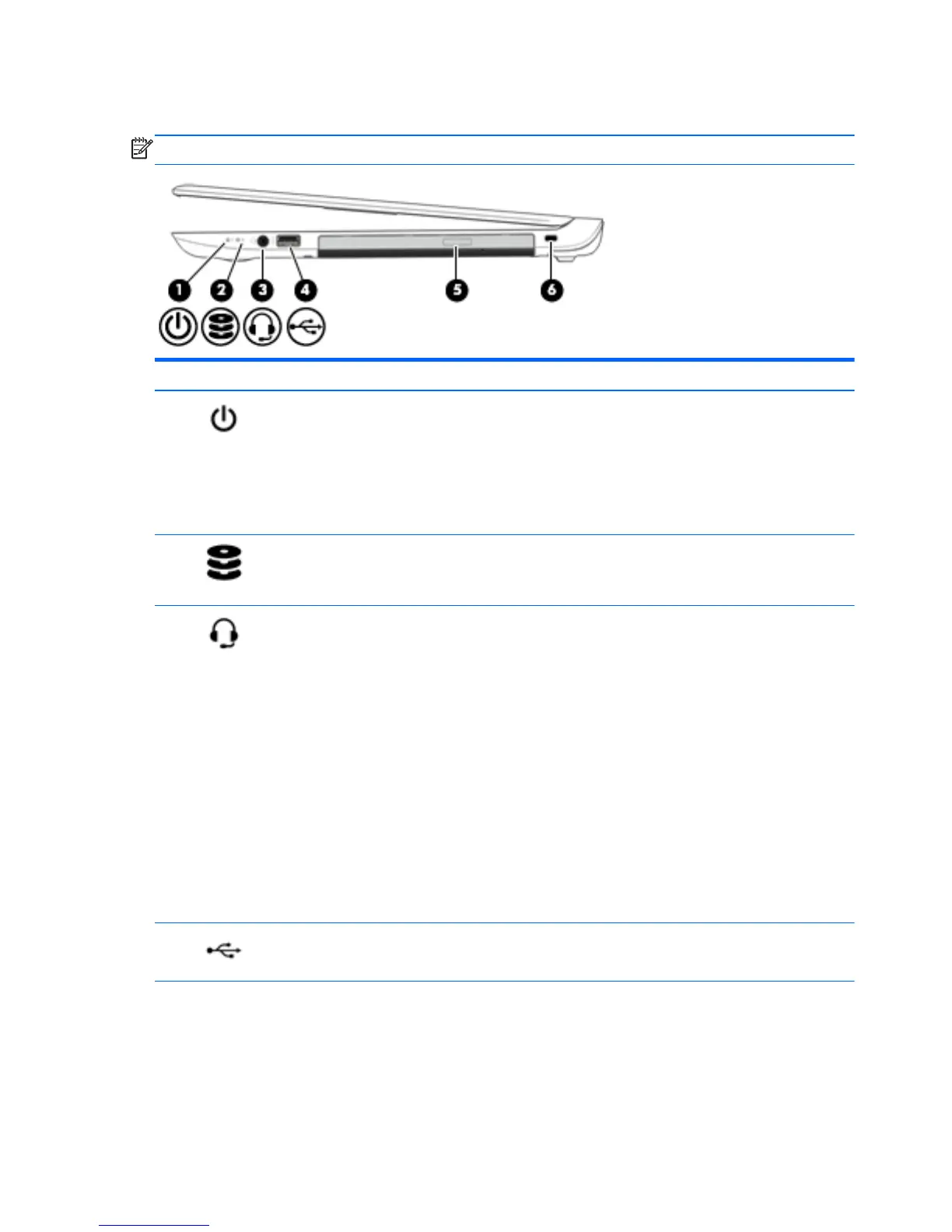

Right side
NOTE: Refer to the illustration that most closely matches your computer.
Component Description
(1)
Power light
On: The computer is on.
Blinking: The computer is in the Sleep state, a power-
saving state. The computer shuts off power to the
display and other unneeded components.
Off: The computer is off or in Hibernation. Hibernation
is a power-saving state that uses the least amount of
power.
(2)
Hard drive light
Blinking white: The hard drive is being accessed.
Amber: HP 3D DriveGuard has temporarily parked the
hard drive.
(3)
Audio-out (headphone)/Audio-in
(microphone) jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety, and Environmental Notices
. To access
this guide, from the Start screen, type support, and then
select the HP Support Assistant app.
For Windows 7, to access the user guides, select Start >
Help and Support > User Guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
(4)
USB 2.0 port Connects an optional USB device, such as a keyboard,
mouse, external drive, printer, scanner or USB hub.
(5) Optical drive Depending on your computer model, reads an optical disc
or reads and writes to an optical disc.
8 Chapter 2 External component identification
