HP Pavilion 23xi

EL-MF877-00 Page 5
Template Revision B
PSG instructions for this template are available at EL-MF877-01

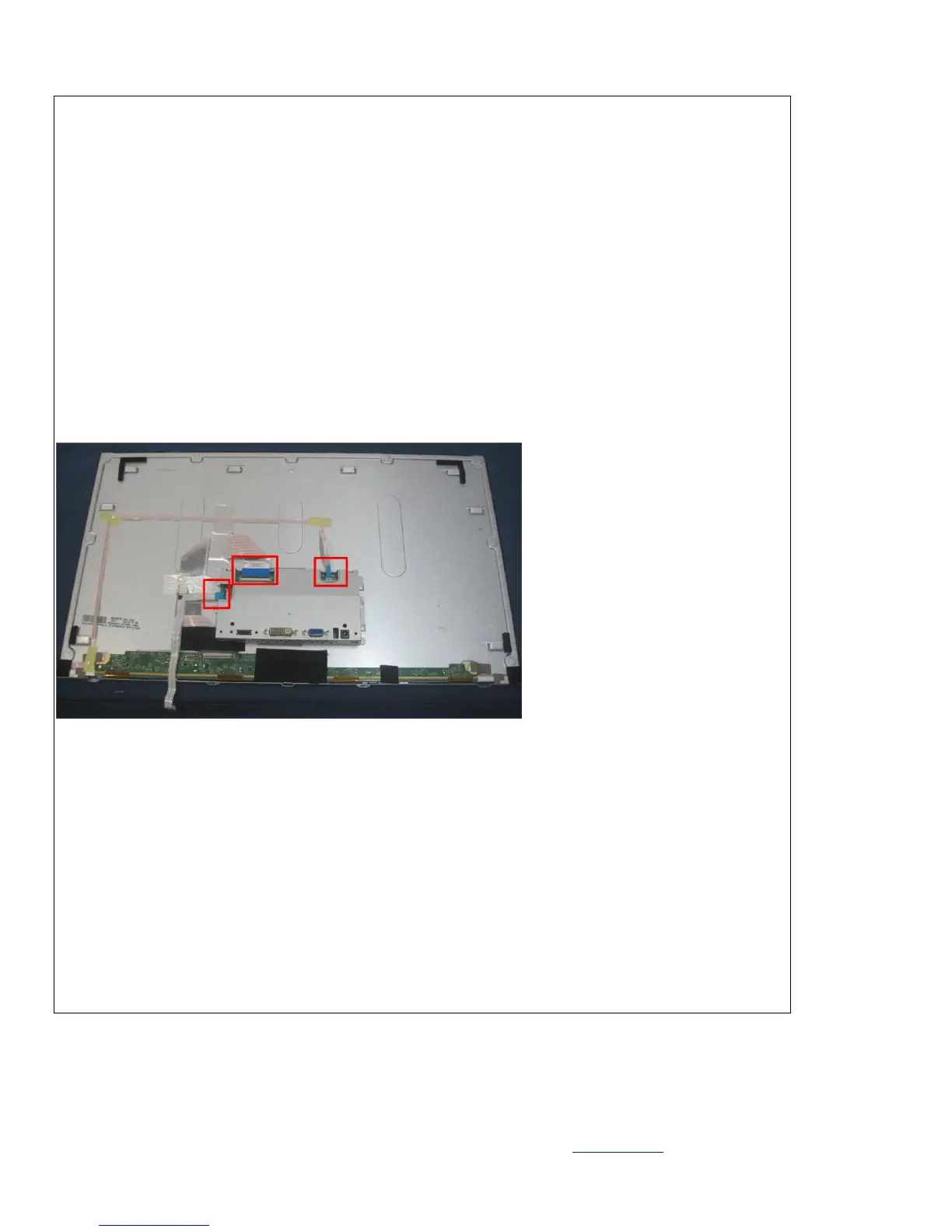

Step 5: To remove the shielding(contain the other material );
(4.1) Remove the acetate tapes covering the LVDS/ LED FFCs;
(4.2) Pull out the LVDS/ LED FFCs to separate the base assembly from the unit;
