4 Getting Started (features vary by model)

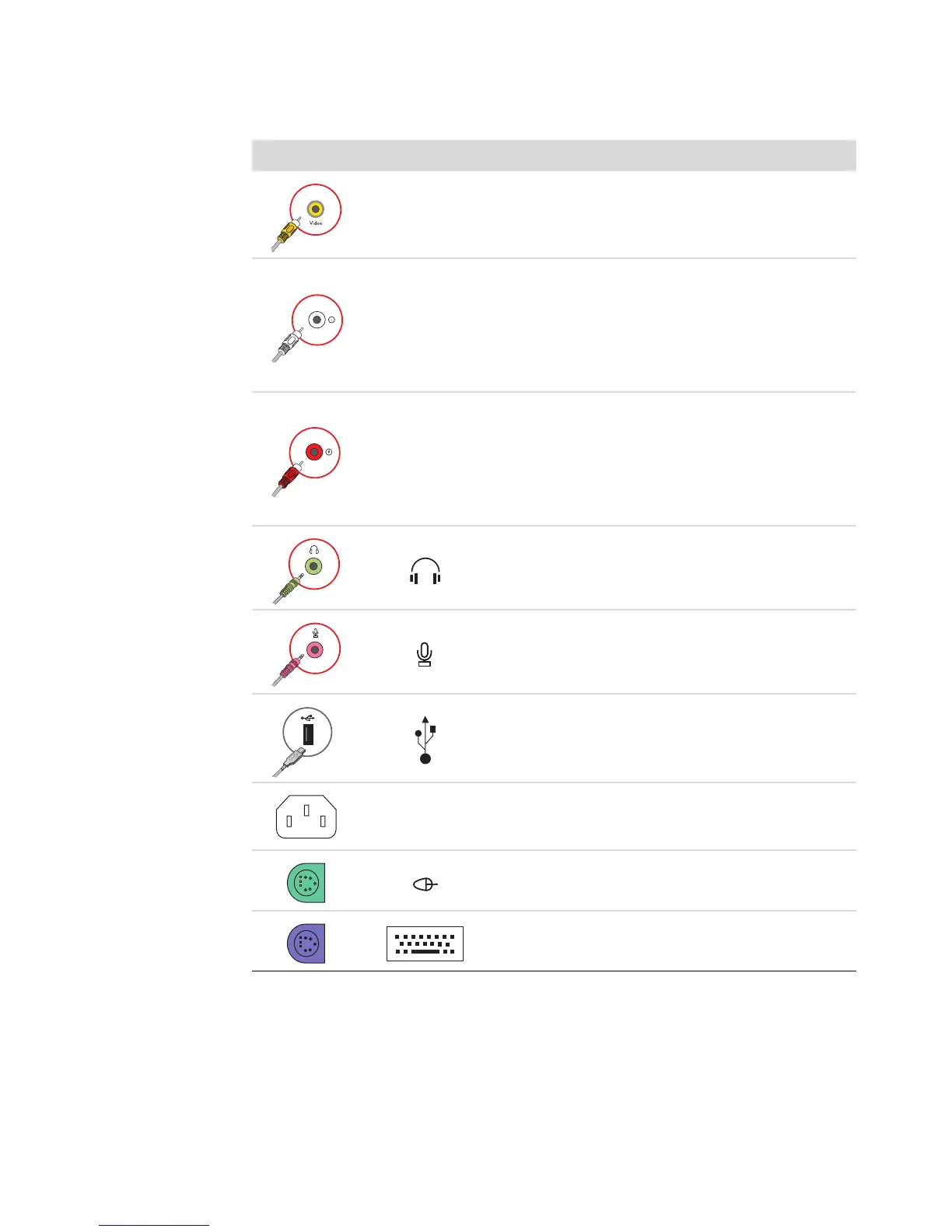

Composite
Video 2
Secondary Composite video connector (yellow) to
connect to a VCR, video camera, or other analog
source to the computer.
A/V In
Audio 2
L
Secondary Left audio input connector (white).
NOTE: This Audio In connector is connected to the
TV tuner. You must use the Audio In connector,
which is connected to the motherboard and located
on the back of the computer, to record audio only
(select models only).
A/V In
Audio 2
R
Secondary Right audio input connector (red).
NOTE: This Audio In connector is connected to the
TV tuner. You must use the Audio In connector,
which is connected to the motherboard and located
on the back of the computer, to record audio only
(select models only).
Headphones Out connector (green) to connect to
headphones.
Microphone In connector (pink) to connect to a
microphone.
Universal Serial Bus (USB) 2.0 connector to connect
to a mouse, keyboard, digital camera, or another
device with a USB connector.
Power connector.
Mouse connector to connect a mouse.
Keyboard connector to connect a keyboard.
