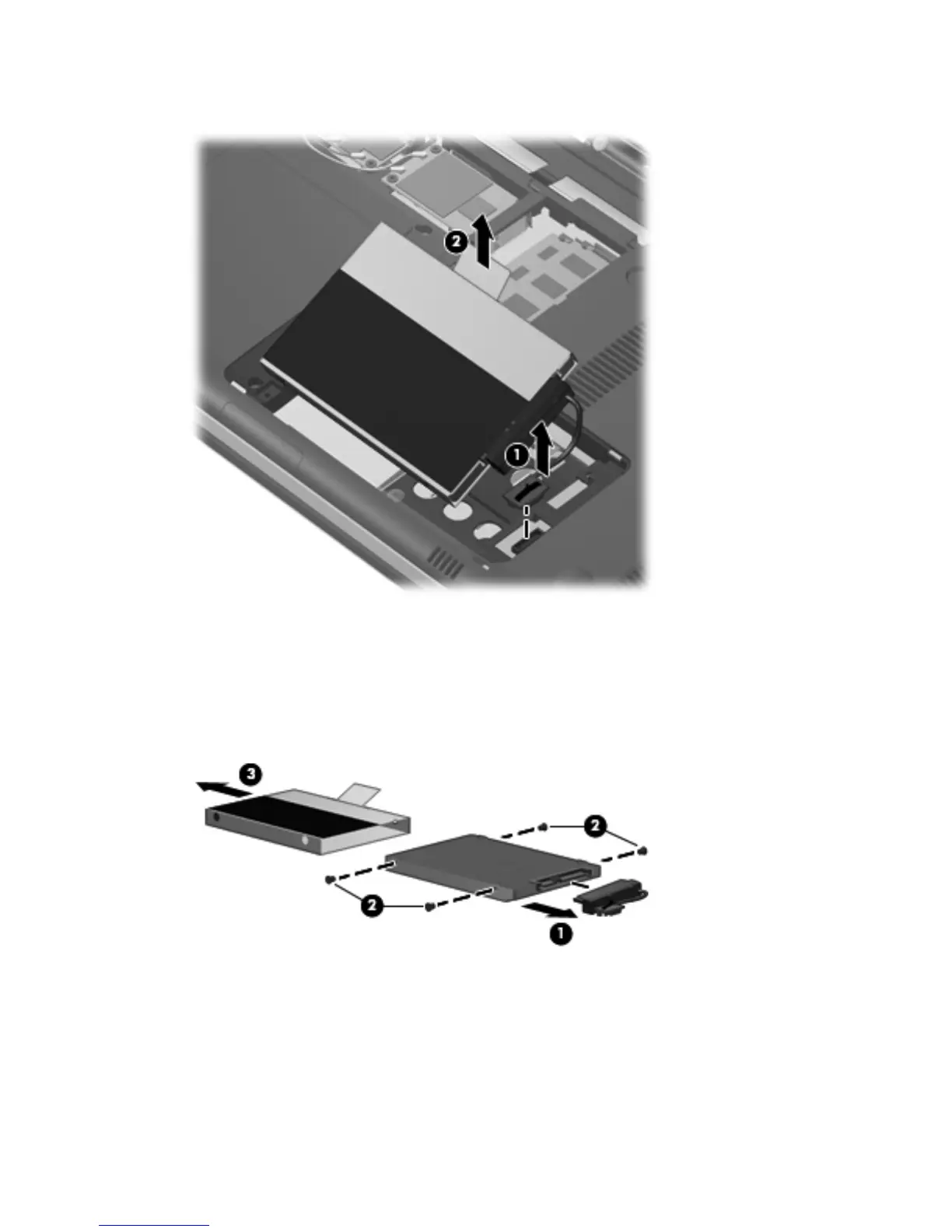

5. Lift the hard drive out of the hard drive bay (2).
6. If it is necessary to replace the hard drive bracket, disconnect the hard drive cable from the hard
drive (1).
7. Remove the four Phillips PM3.0×3.0 screws (2) that secure the hard drive bracket to the hard
drive.
8. Slide the bracket (3) straight off the hard drive.
Reverse this procedure to reassemble and install the hard drive.
