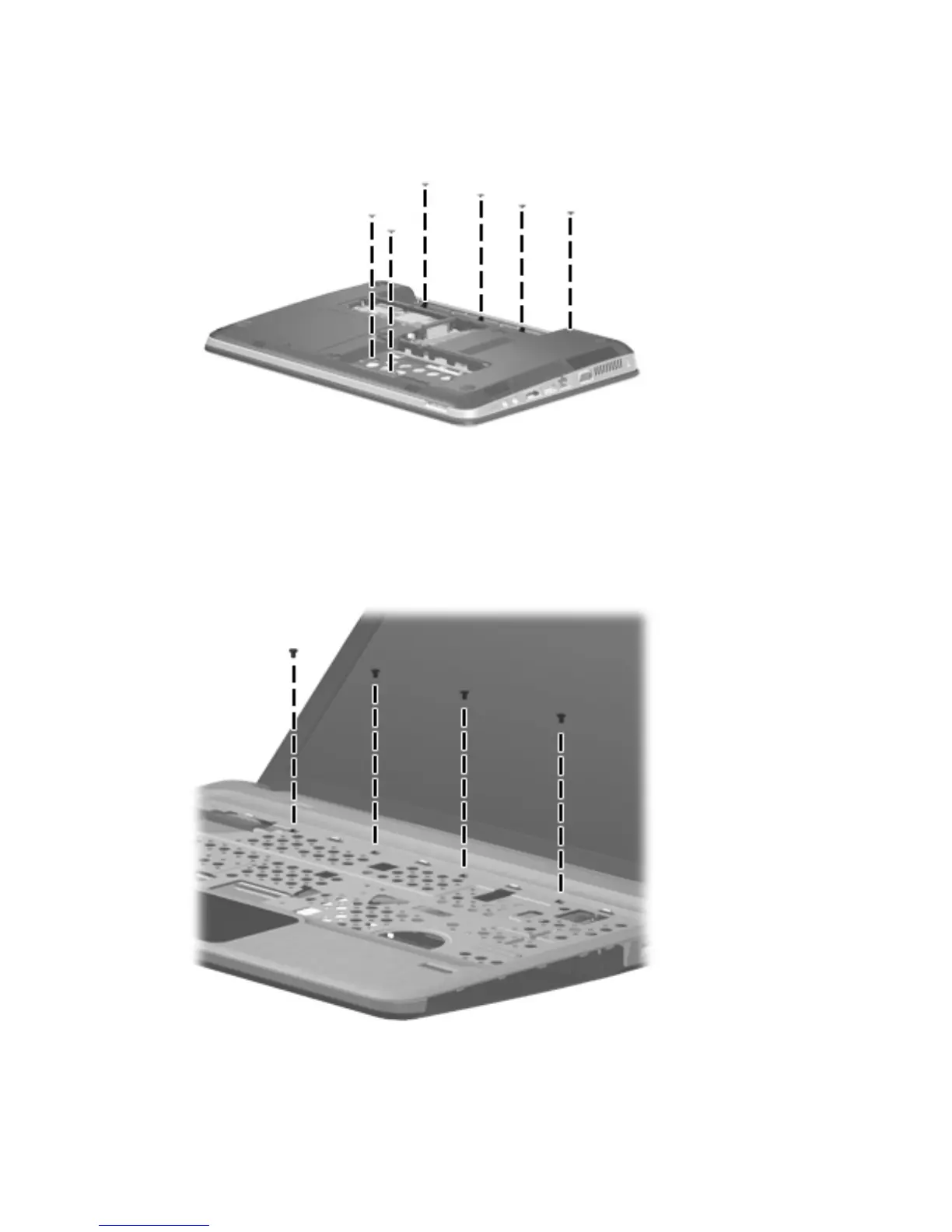

3. Remove the six Phillips PM2.0x2.0 broadhead screws that secure the top cover to the base
enclosure.
4. Turn the computer right-side up with the front toward you.
5. Open the computer as far as possible.
6. Remove the four Phillips PM2.0×4.0 screws that secure the top cover to the base enclosure, and
then disengage the top cover from the base enclosure and lift the top cover up enough to gain
access to the cables.
7. Release the ZIF connector to which the power button board is connected and disconnect the
cable from the system board (1).
60 Chapter 4 Removal and replacement procedures
