The display cable is available in the Display Cable Kit, spare part number 608211-001.

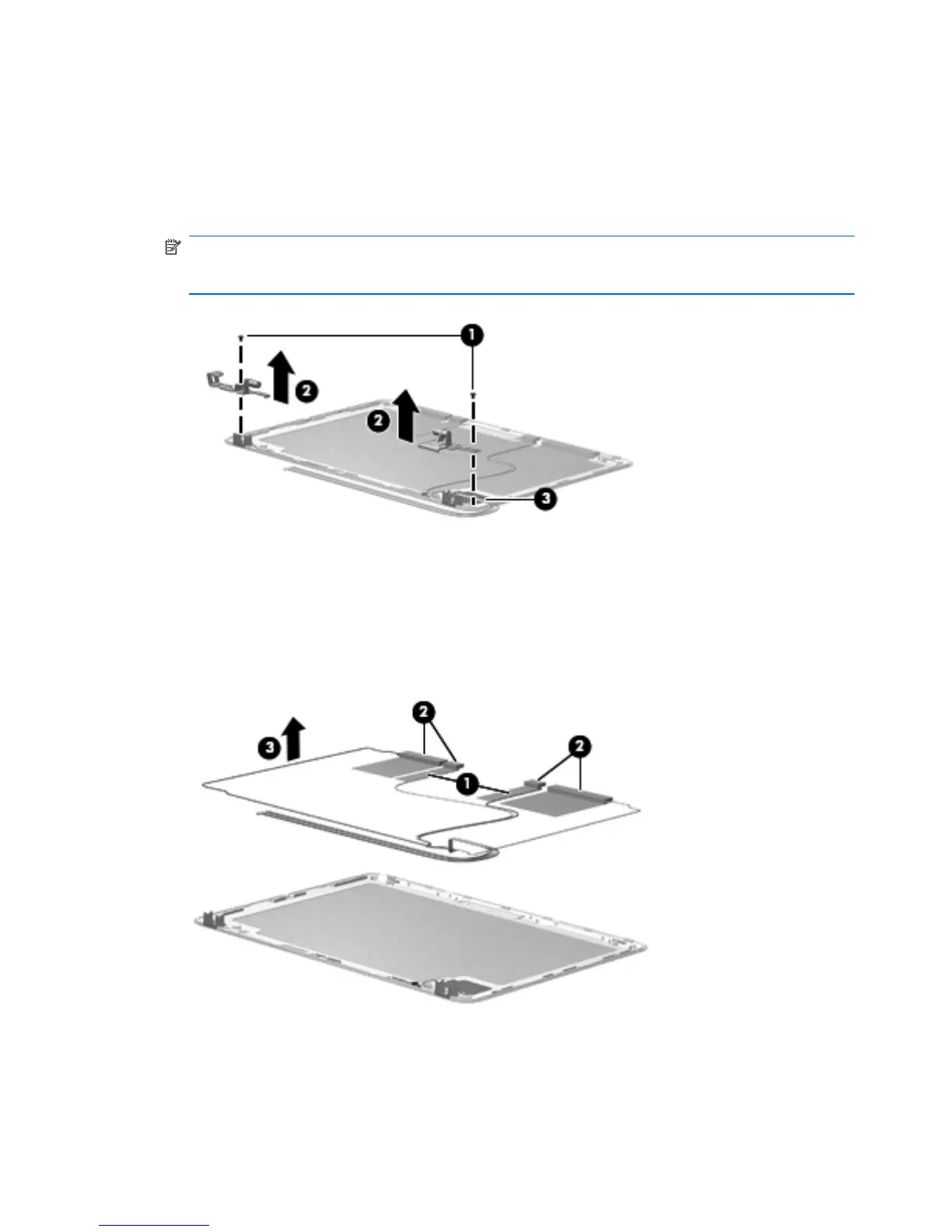

15. If it is necessary to replace the display bracket and hinges, remove the two Phillips PM2.5×5.0
screws (1) that secure the brackets to the display.
16. Remove the display hinges (2) from the display. The display bracket and hinge set is available
using spare part number 608214-001.
NOTE: Note the WLAN antenna routing path through the right hinge (3).
NOTE: The silver screws go on the outside of the hinges.
17. If it is necessary to replace the wireless antennas and cables, remove the adhesive strip (1) that
secures each antenna to the display back cover.
18. Remove the antennas from the clips (2) built into the top of the display enclosure.
19. Remove the wireless antennas and cables (3) from the display enclosure. The wireless
antennas and cables are included in the Display Cable Kit, spare part number 608211-001.
Reverse this procedure to reassemble and install the display assembly.
70 Chapter 4 Removal and replacement procedures
