Remove the ExpressCard assembly:
1. Press the ExpressCard slot bezel (1) to release the bezel from the ExpressCard slot.
2. Remove the ExpressCard slot bezel (2). The ExpressCard slot bezel is included in the Plastics Kit,
spare part number 438368-001.

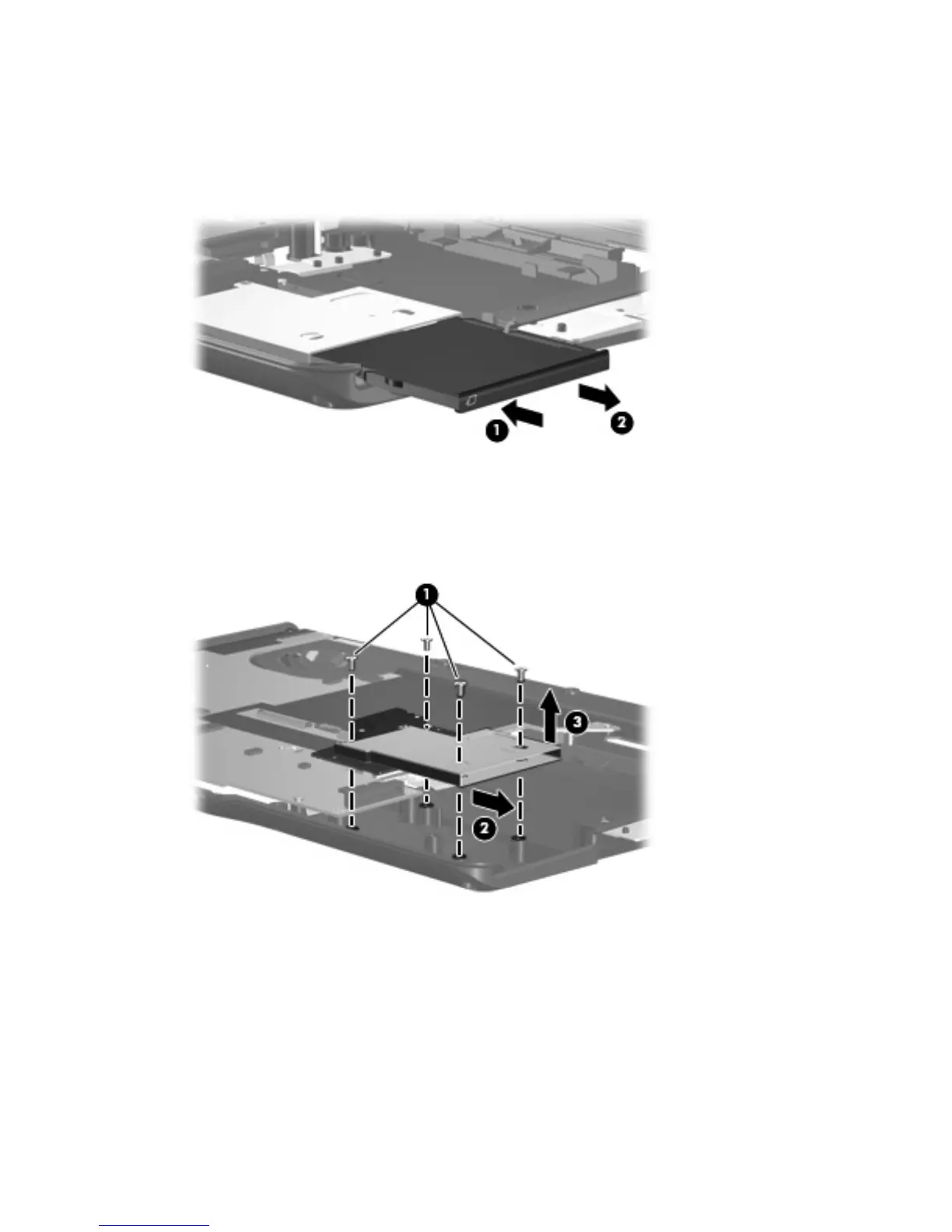

3. Remove the four Phillips PM2.5×4.0 screws (1) that secure the ExpressCard assembly to the system
board.
4. Disconnect the ExpressCard assembly (2) from the system board by sliding to the right.
5. Remove the ExpressCard assembly (3).
Reverse this procedure to install the ExpressCard assembly.
80 Chapter 4 Removal and replacement procedures
