Removal and replacement procedures
Maintenance and Service Guide 4–7

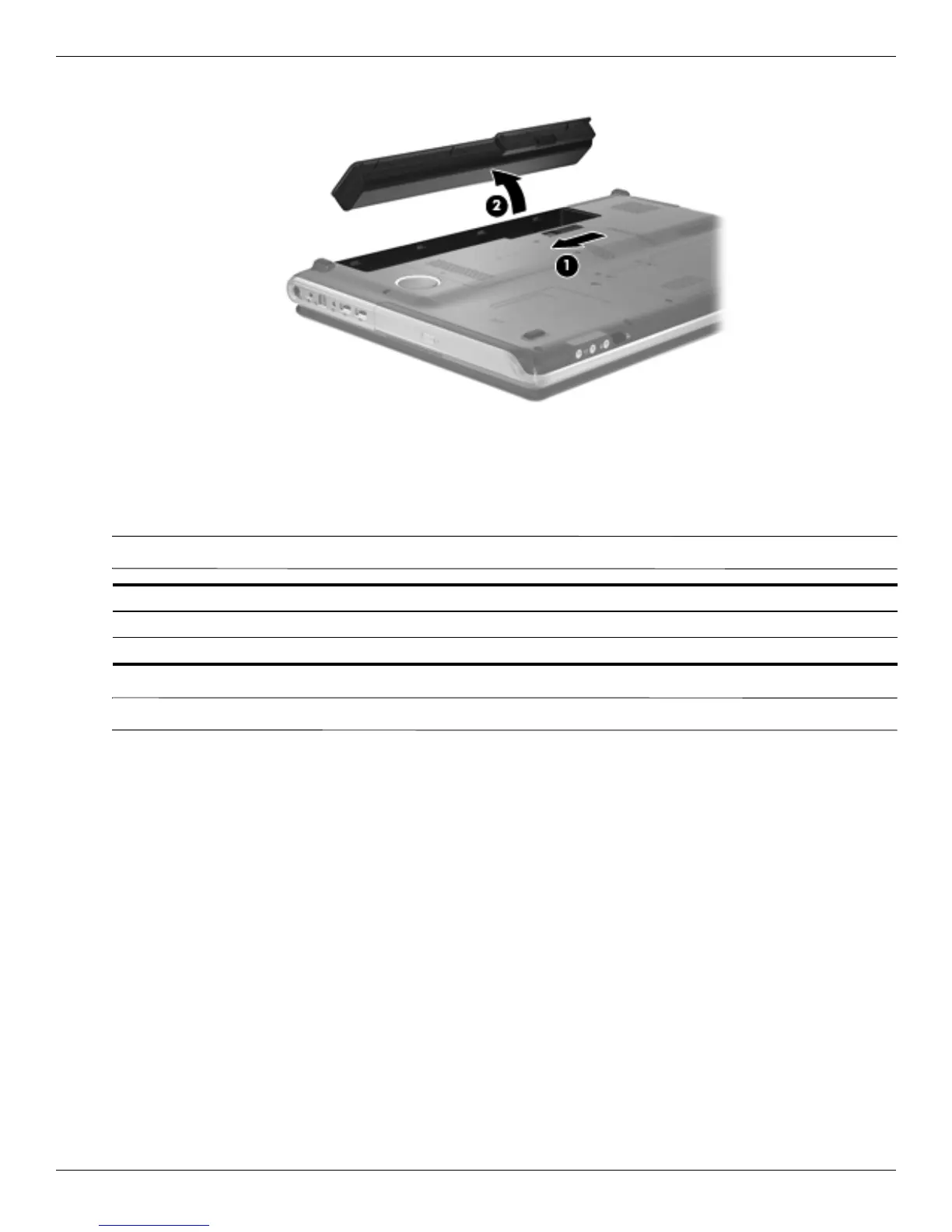

To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge of the battery
downward until it is seated. The battery release latch automatically locks the battery into place.
Optical drive
✎
The optical drive spare part kit includes an optical drive bezel and bracket.
✎
If it is necessary to remove the optical drive board, see “System board” on page 4-37.
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-6).
Remove the optical drive:
1. Position the computer with the front toward you.
2. Remove the Phillips PM2.5×7.0 screw 1 that secures the optical drive to the computer.
3. Remove the optical drive 2 from the computer.
Description Spare part number
Blu-ray ROM DVD±R/RW SuperMulti DL Drive with LightScribe 516352-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 516353-001
