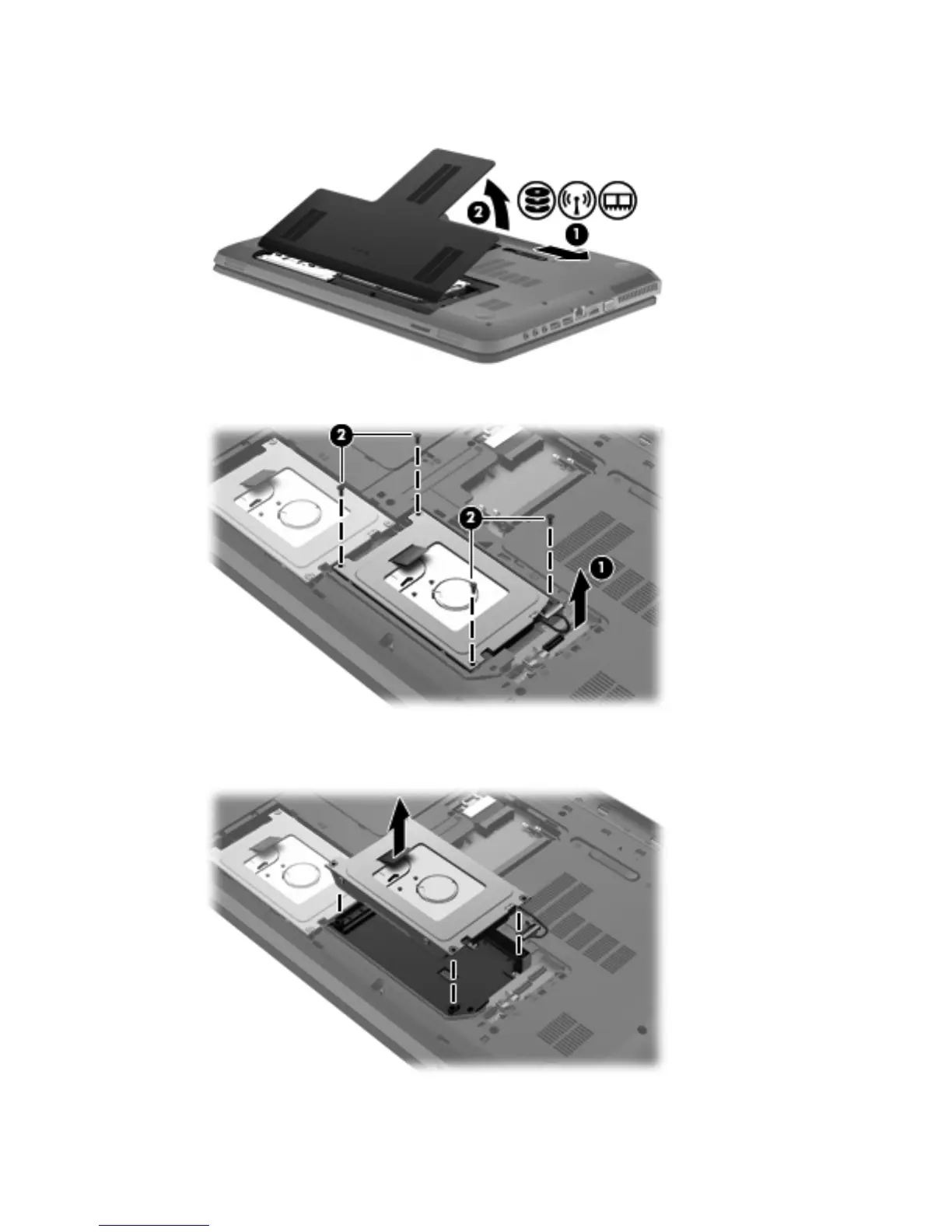

4. Slide the battery release latch (1) until the cover is released, and then lift up and remove the
cover (2).
5. Disconnect the hard drive cable (1), and then remove the 4 screws (2) from the hard drive.
6. Pull the hard drive tab upward to release the hard drive, and then lift the hard drive out of the
hard drive bay.
Adding or replacing a hard drive 59
