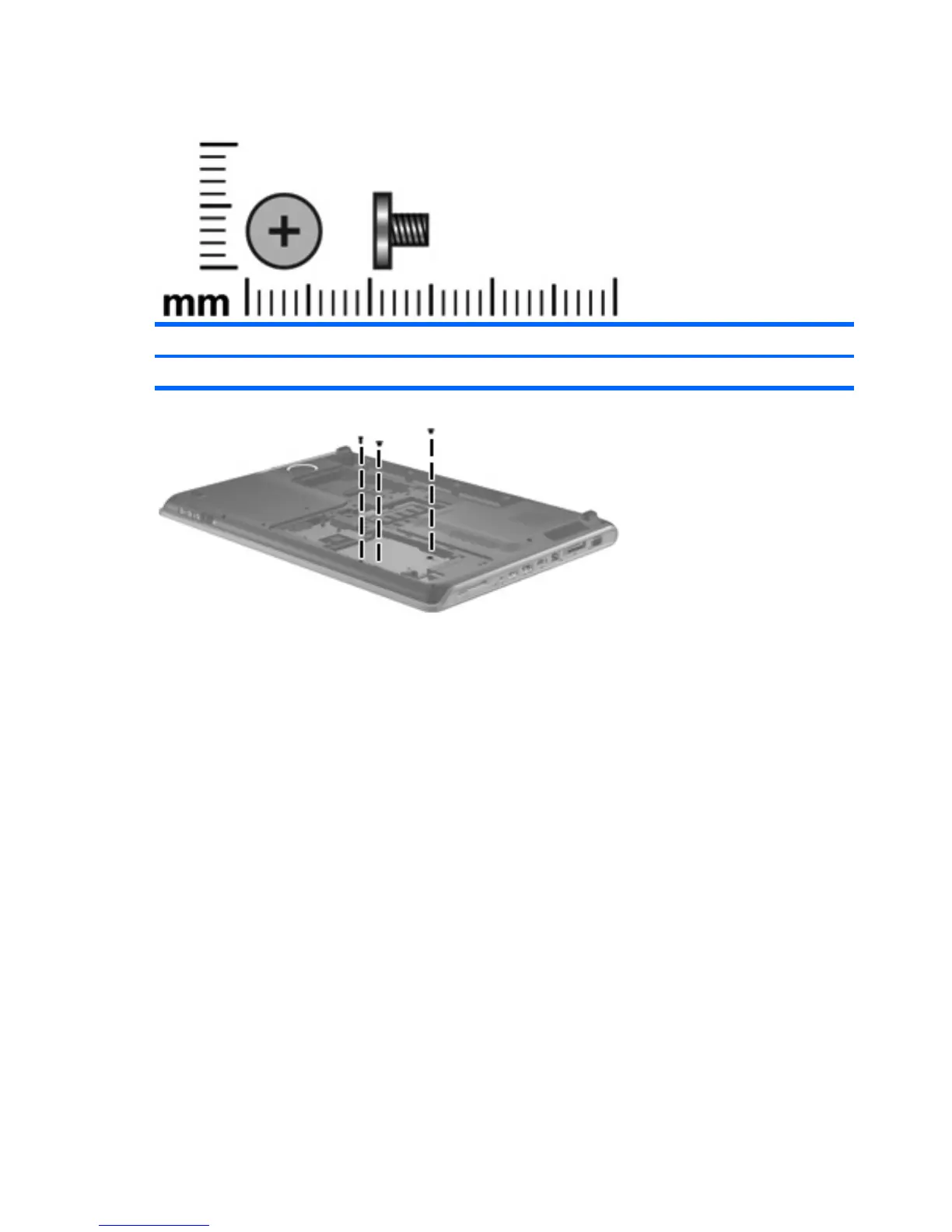

Phillips PM2.5×4.0 broadhead screw
Color
Qua
ntity
Length
Thread
Head diameter
Silver
3
4.0 mm
2.5 mm
8.0 mm
Where used:
3 screws, located inside the
hard d
rive bay, th
at secure the top cove
r to the computer
126
Chapter 7 Screw listing
133
135
Table of Contents
Main Page
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 Components
14
Top Components
14
Touchpad
14
Lights
15
Buttons and Fingerprint Reader (Select Models Only)
17
Keys
19
Front Components
20
Rear Component
21
Right-Side Components
21
Left-Side Components
22
Bottom Components
23
Display Components
24
3 Illustrated Parts Catalog
25
Service Tag
25
Computer Major Components
26
Display Assembly Components
32
Flush Glass Display Assembly Spare Parts
32
Brightview Panel
33
Mass Storage Devices
34
Miscellaneous Parts
35
Sequential Part Number Listing
36
4 Removal and Replacement Procedures
44
Preliminary Replacement Requirements
44
Tools Required
44
Service Considerations
44
Plastic Parts
44
Cables and Connectors
45
Drive Handling
45
Grounding Guidelines
46
Electrostatic Discharge Damage
46
Packaging and Transporting Guidelines
47
Workstation Guidelines
47
Equipment Guidelines
48
Component Replacement Procedures
49
Service Tag
49
Computer Feet
50
Battery
51
Optical Drive
52
Primary Hard Drive Cover
53
Secondary Hard Drive Cover
54
Hard Drive
56
WLAN Module
58
RTC Battery
61
Memory Module
62
TV Tuner Module
63
Switch Cover and Keyboard
65
Power Button Board
69
Speaker Assembly
70
Bluetooth Module
71
Display Assembly
72
Top Cover
82
Modem Module
85
System Board
87
Audio/Infrared Board
90
USB Board
91
Subwoofer
92
TV Tuner Module Cable
94
Modem Module Cable
95
Power Connector Cable
96
Fan/Heat Sink Assembly
97
Processor
101
5 Setup Utility
103
Starting the Setup Utility
103
Using the Setup Utility
104
Changing the Language of the Setup Utility
104
Display System Information
104
Restoring Default Settings in the Setup Utility
105
Exiting the Setup Utility
105
Setup Utility Menus
106
Main Menu
106
Security Menu
106
System Configuration Menu
106
Diagnostics Menu
107
6 Specifications
108
Computer Specifications
108
Inch, HD+ Flush Glass Antiglare Display Specifications
109
Inch HD+ Brightview Display Specifications
110
Hard Drive Specifications
111
Blu-Ray ROM DVD±R/RW Supermulti DL Drive
112
DVD±RW and CD-RW Supermulti Double-Layer Combo Drive Specifications
113
System DMA Specifications
113
System Interrupt Specifications
115
System I/O Address Specifications
116
System Memory Map Specifications
118
7 Screw Listing
119
Phillips PM2.5×3.0 Screw (Black)
119
Phillips PM2.5×3.0 Screw (Silver)
120
Phillips PM2.5×7.0 Screw
122
Phillips PM2.5×6.0 Captive Screw
125
Phillips PM2.0×4.0 Screw (Black)
127
Phillips PM2.0×4.0 Screw (Silver)
130
Phillips PM2.5×4.0 Screw (Silver)
132
Phillips PM2.5×4.0 Screw (Black)
133
Phillips PM2.5×4.0 Broadhead Screw
134
Phillips PM2.5×5.0 Screw
135
Phillips PM2.5×5.0 Broadhead Screw
137
Phillips PM2.5×6.5 Screw
138
Phillips PM2.5×14.0 Captive Screw
139
8 Backup and Recovery
141
Recovering System Information
141
Creating Recovery Discs
142
Backing up Your Information
143
When to Back up
143
Backup Suggestions
143
Using System Restore Points
143
When to Create Restore Points
144
Create a System Restore Point
144
Restore to a Previous Date and Time
144
Performing a Recovery
145
Recovering from the Recovery Discs
145
Recovering from the Dedicated Recovery Partition (Select Models Only)
145
9 Connector Pin Assignments
146
Audio-In (Microphone)
146
Audio-Out (Headphone)
147
External Monitor
147
Hdmi
148
Modem)
149
Network)
149
Universal Serial Bus
150
10 Power Cord Set Requirements
151
Requirements for All Countries or Regions
151
Requirements for Specific Countries or Regions
152
11 Recycling
153
Battery
153
Display
153
Index
