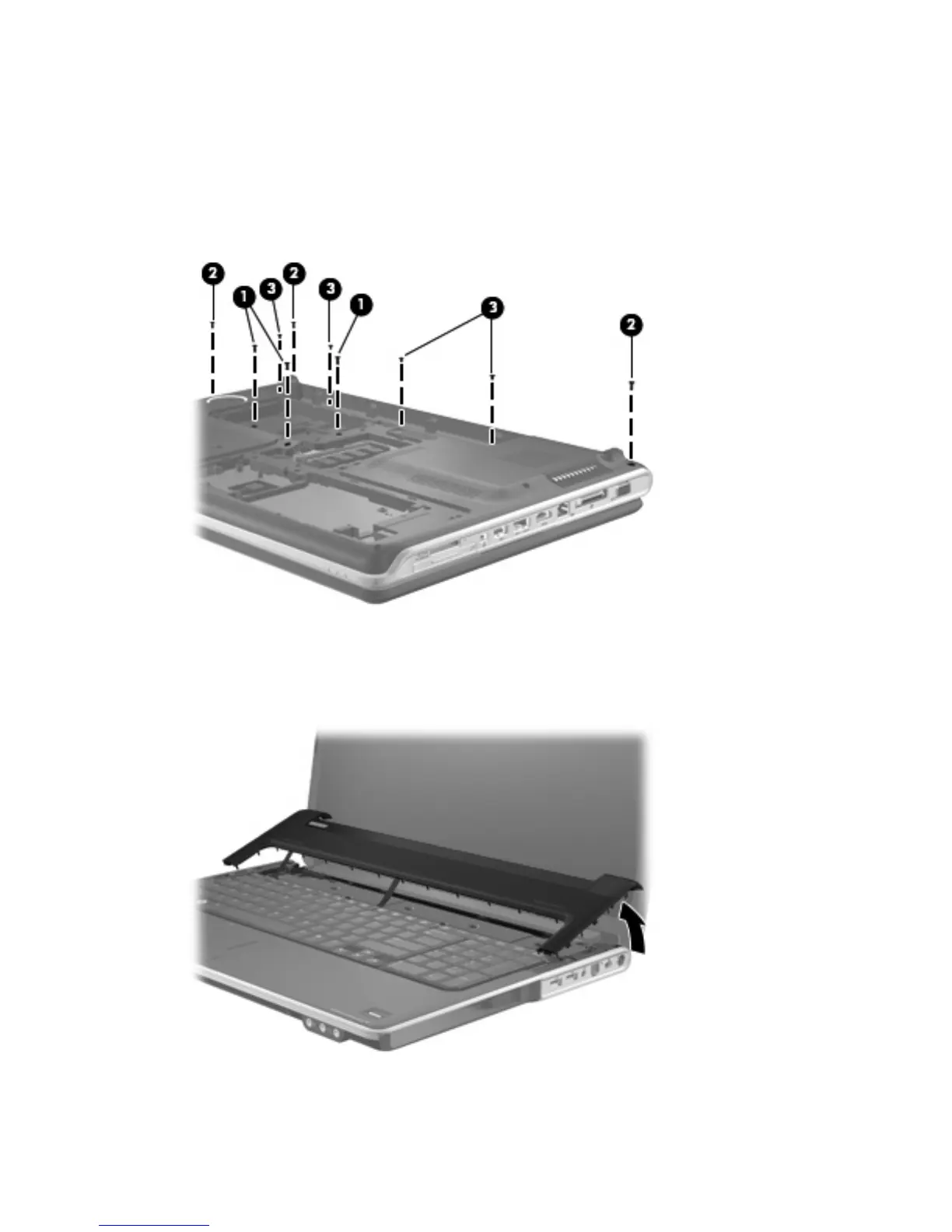

Remove the switch cover and keyboard:
1. Remove the following screws:
(1) Three Phillips PM2.5×7.0 screws that secure the keyboard to the computer
(2) Three Phillips PM2.5×7.0 screws that secure the switch cover to the computer
(3) Four Phillips PM2.5×3.0 screws that secure the switch cover to the computer
2. Turn the computer display-side up, with the front toward you.
3. Open the computer as far as possible.
4. Lift the rear edge of the switch cover until it detaches from the computer.
5. Lift the switch cover (1) to access the keyboard screws.
58 Chapter 4 Removal and replacement procedures
