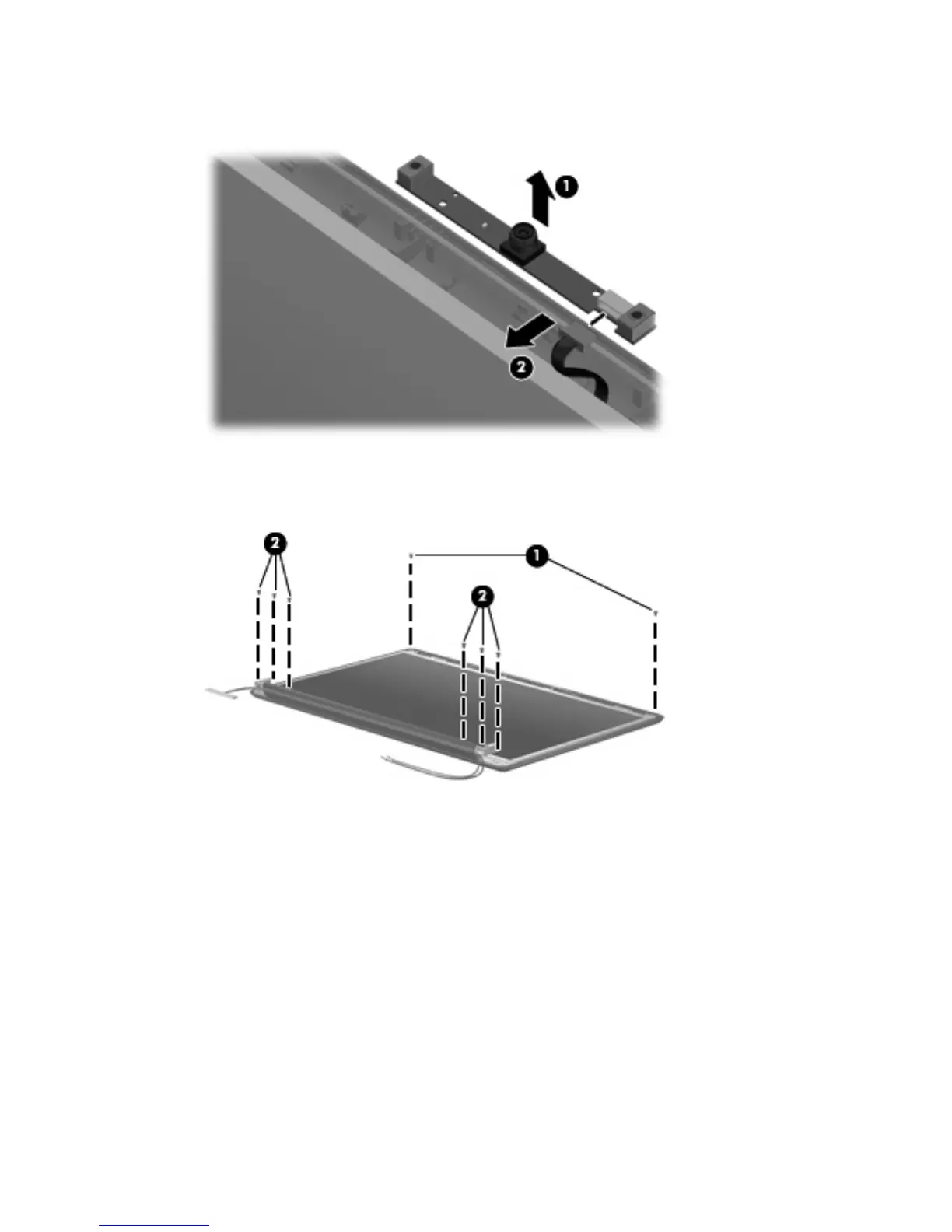

23. Disconnect the webcam/microphone module cable (2) and remove the webcam/microphone
module. The webcam/microphone module is available using spare part number 516312-001.
24. If it is necessary to replace the display panel, remove the two Phillips PM2.5×5.0 screws (1) from
the top corners and the six Phillips PM2.5×5.0 screws (2) from the display hinges. The display
panel is available using spare part number 516303-001.
Component replacement procedures 71
