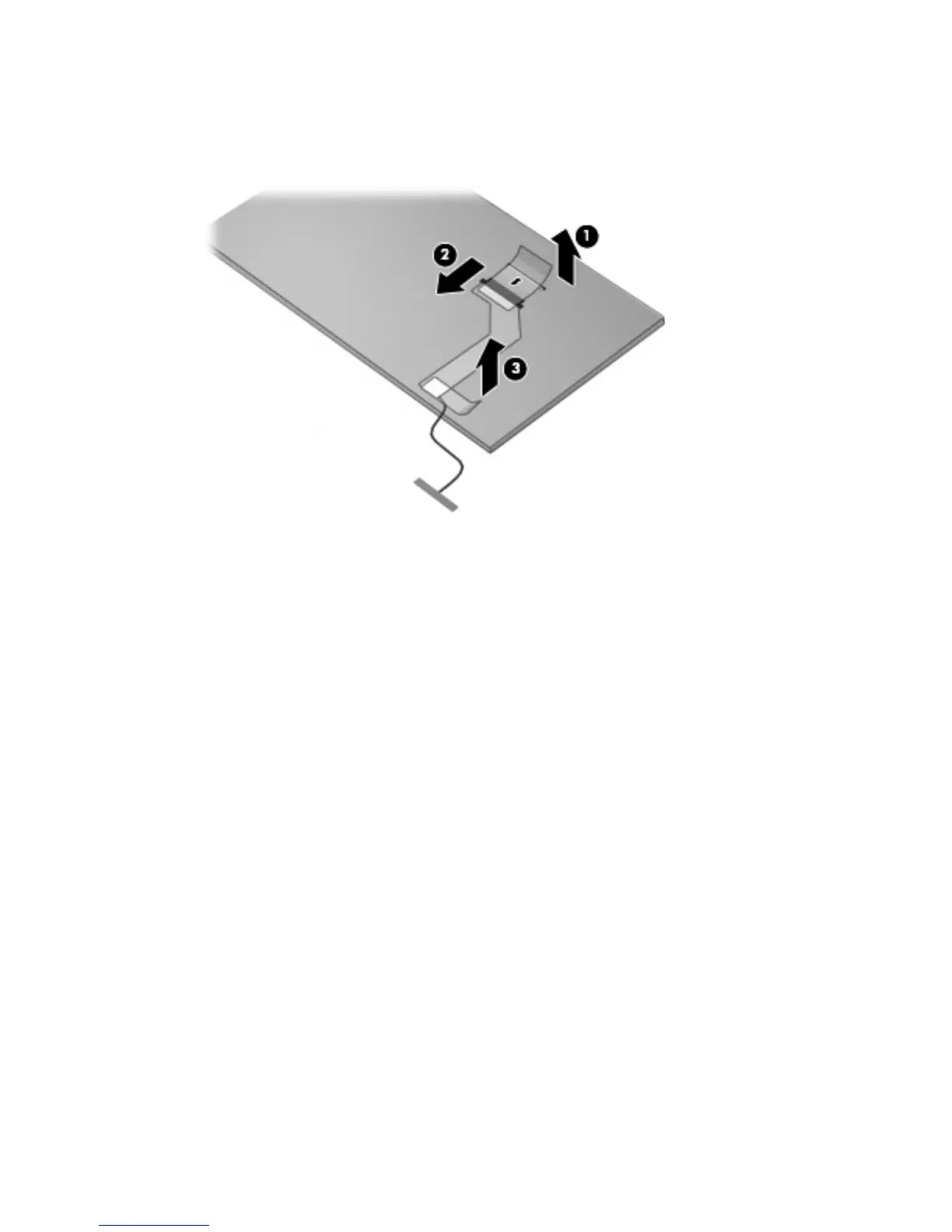

28. If it is necessary to remove the display panel cable, remove the adhesive plastic strip (1) from the
display panel cable, and lift up the display panel cable (2). Remove the tape (3) that secures the
cable to the display panel. The display panel cable is available using spare part number
516307-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 73
