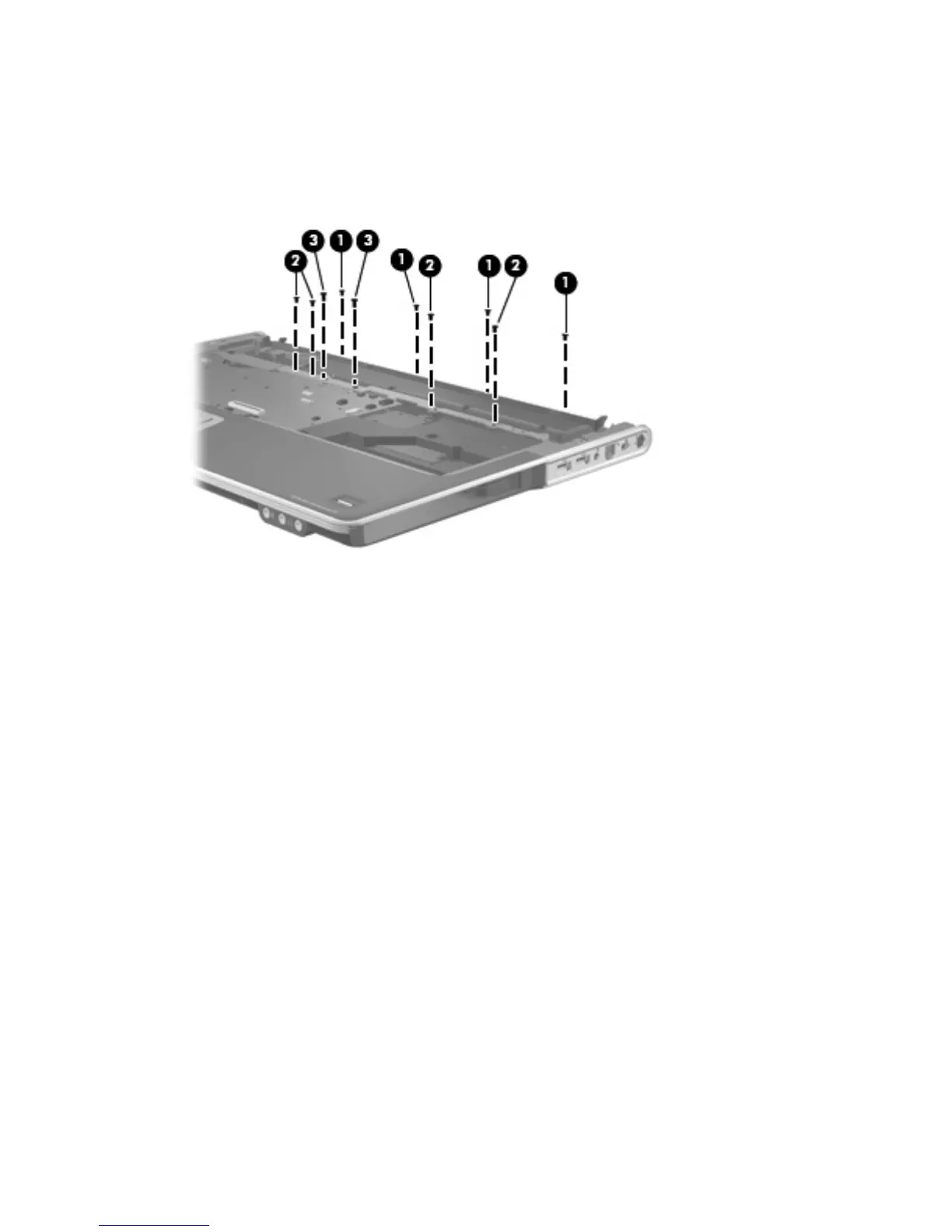

4. Remove the following screws that secure the top cover to the computer:
(1) 4 black PM2.0×4.0 screws
(2) 4 silver PM2.0×4.0 screws
(3) 2 black PM2.5×7.0 screws
5. Remove the top cover by lifting it straight up.
Reverse this procedure to install the top cover.
76 Chapter 4 Removal and replacement procedures
