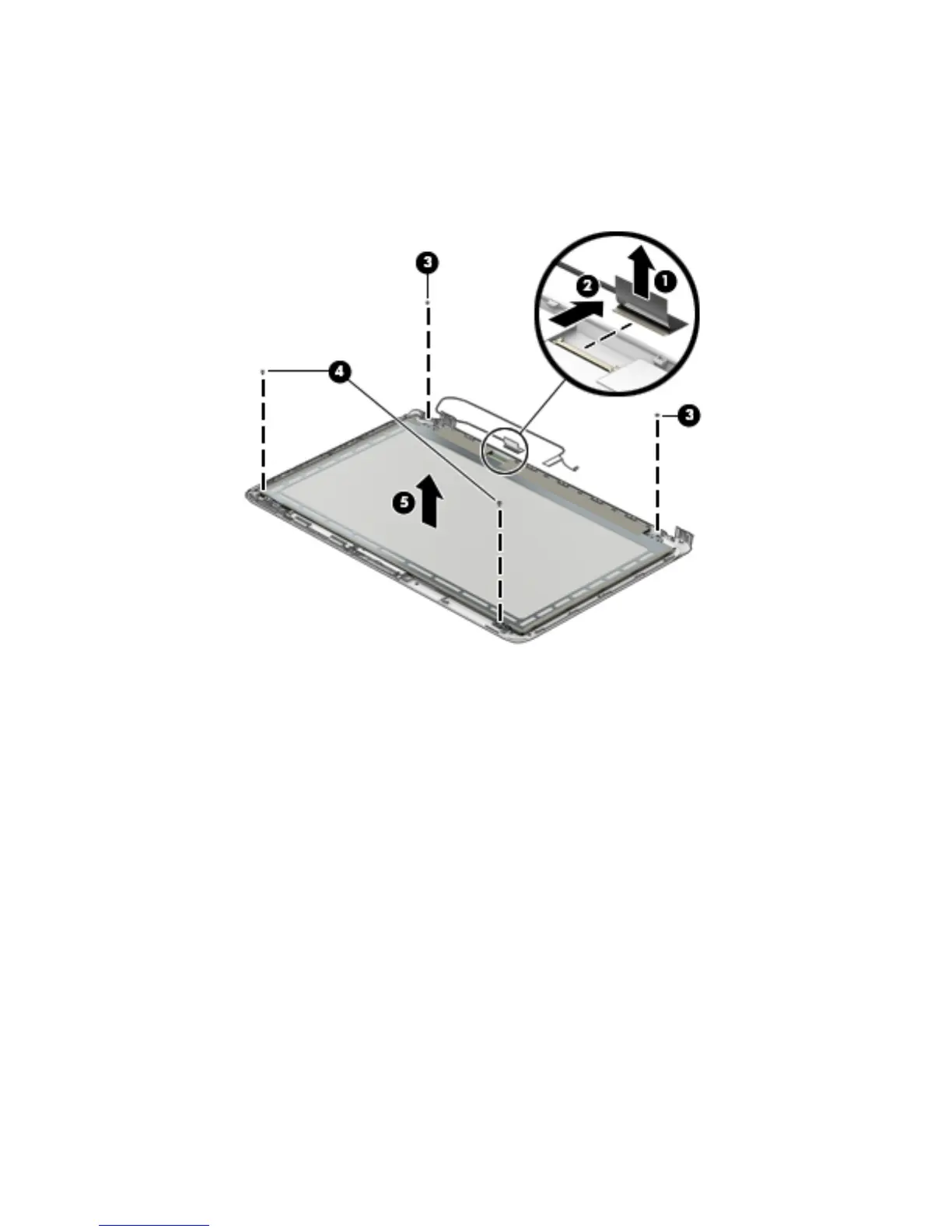

d. Lift the top of the panel (5).
The display panel is available using spare part numbers:
809341-001: AntiGlare, FHD,SVA, touch
819998-001: AntiGlare, FHD, UWVA, touch
e. Rotate the display panel until it is upside-down next to the display enclosure (1).
f. On the back of the display panel, release the adhesive strip (2) that secures the display panel cable
to the display panel, and then disconnect the cable (3).
Component replacement procedures 83
