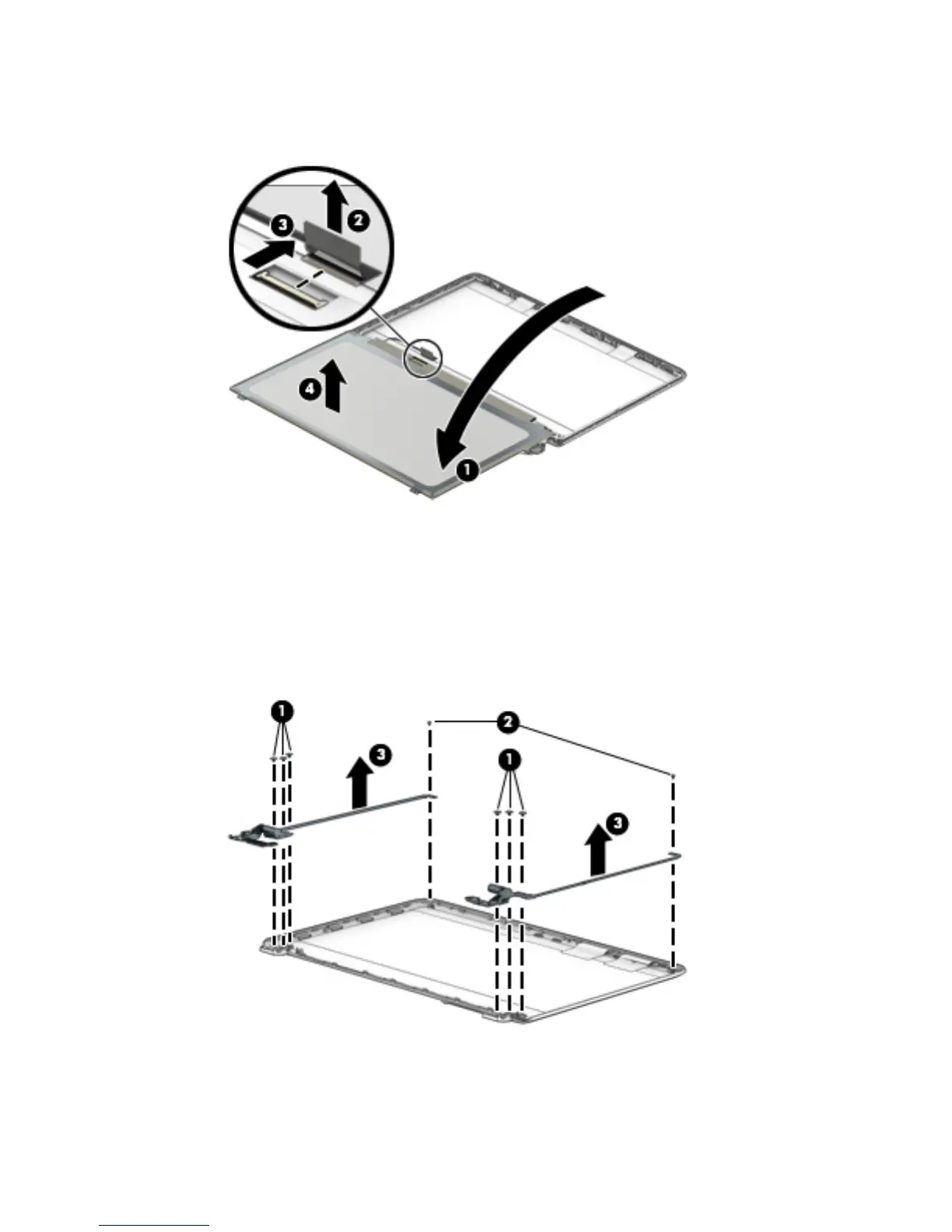

g. Remove the display panel from the enclosure (4).
The display panel is available using spare part number 809341-001.
4. To remove the display hinges:
a. Remove the six Phillips PM2.5×2.0 screws (1) from the bottom of the hinges, and the two Phillips
PM2.0×2.5 screws (2) from the top of the hinges that secure the display hinges to
the display enclosure.
b. Remove the display hinges (3).
The display hinges are available using spare part number 813345-001.
84 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
