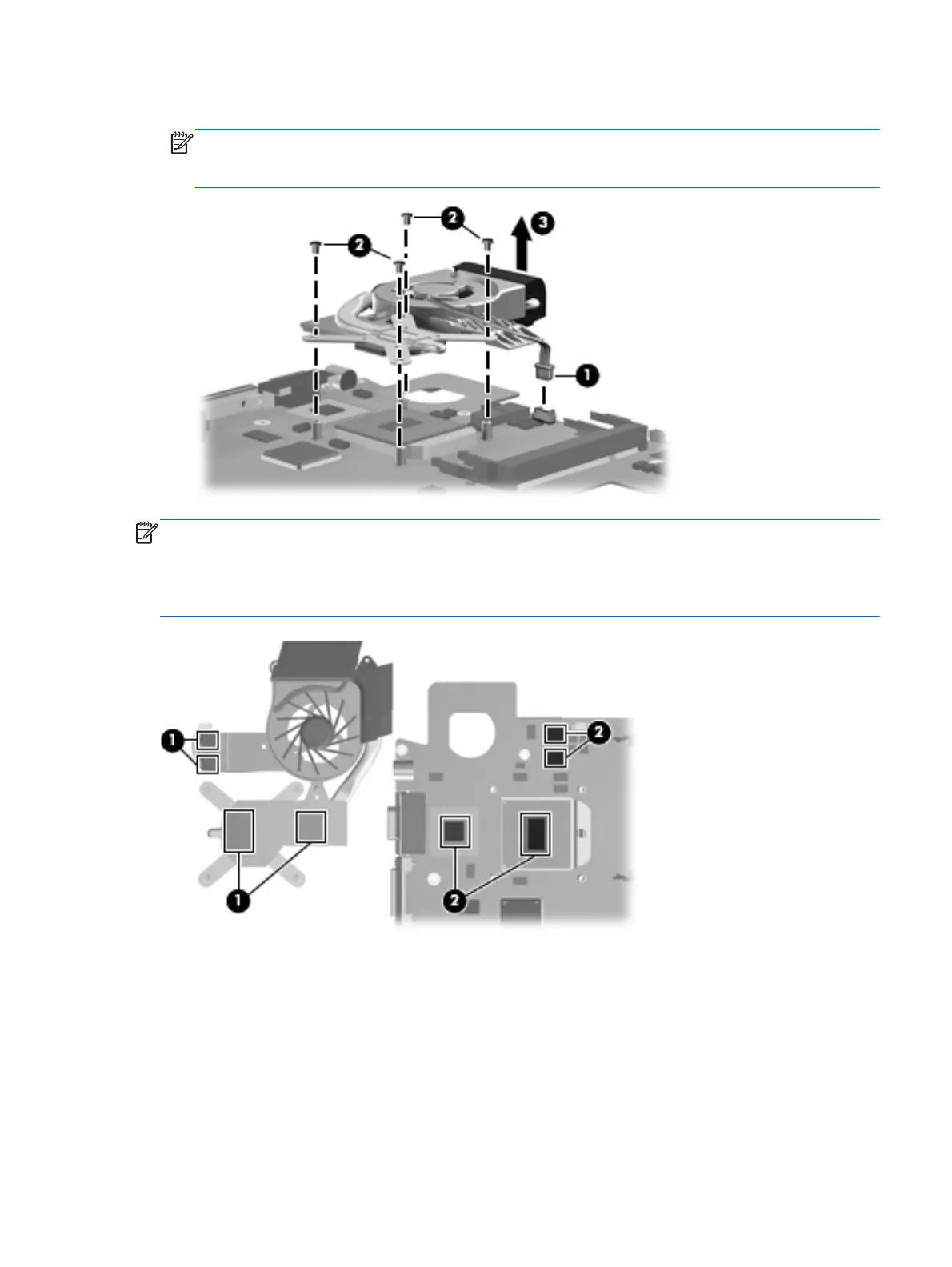

3. Remove the fan/heat sink assembly (3).
NOTE: Due to the adhesive quality of the thermal paste and thermal pads located between the
fan/heat sink assembly and system board components, it may be necessary to move the fan/
heat sink assembly from side to side to detach the assembly.
NOTE: The thermal paste and thermal pads should be thoroughly cleaned from the surfaces of the
fan/heat sink assembly (1) and the system board components (2) each time the fan/heat sink
assembly is removed. Thermal paste and thermal pads are included with all system board, fan/heat
sink assembly, and processor spare part kits. A separate thermal pad kit is available using spare part
number 634256-001.
Reverse this procedure to install the fan/heat sink assembly.
Component replacement procedures 69
