38. Remove camera cable
39. Remove camera module
40. Remove antenna cable
41. Remove base rubber
42. Release base screw *4 pcs
43. Remove base mylar *2 pcs
44. Release base screw *2 pcs
45. Disassemble the base cover from docking ass'y
46. Release docking pogo cable connecter *2 pcs from docking DB
47. Release the KB membrane from docking DB
48. Releae ffc connecter on docking DB & TP module
49. Remove TP module ffc
50. Release docking DB screw *2 pcs
51. Remove docking DB
52. Release TP bracket screw *3 pcs
53. Remove TP bracket
54. Release TP holder screw *3 pcs
55. Remove TP ass'y
56. Remove TP mylar
57. Remove TP module
58. Release hinge bracket L&R screw *4 pcs
59. Disassemble the hinge bar ass'y from top ass'y
60. Disassemble the hinge bar bezel from hinge bar cover ass'y
61. Release docking pogo cable connecter screw *2 pcs
62. Remove docking pogo cable
63. Release hinge L&R screw *4 pcs
64. Remove hinge L&R from hinge bar cover ass'y
65. END
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

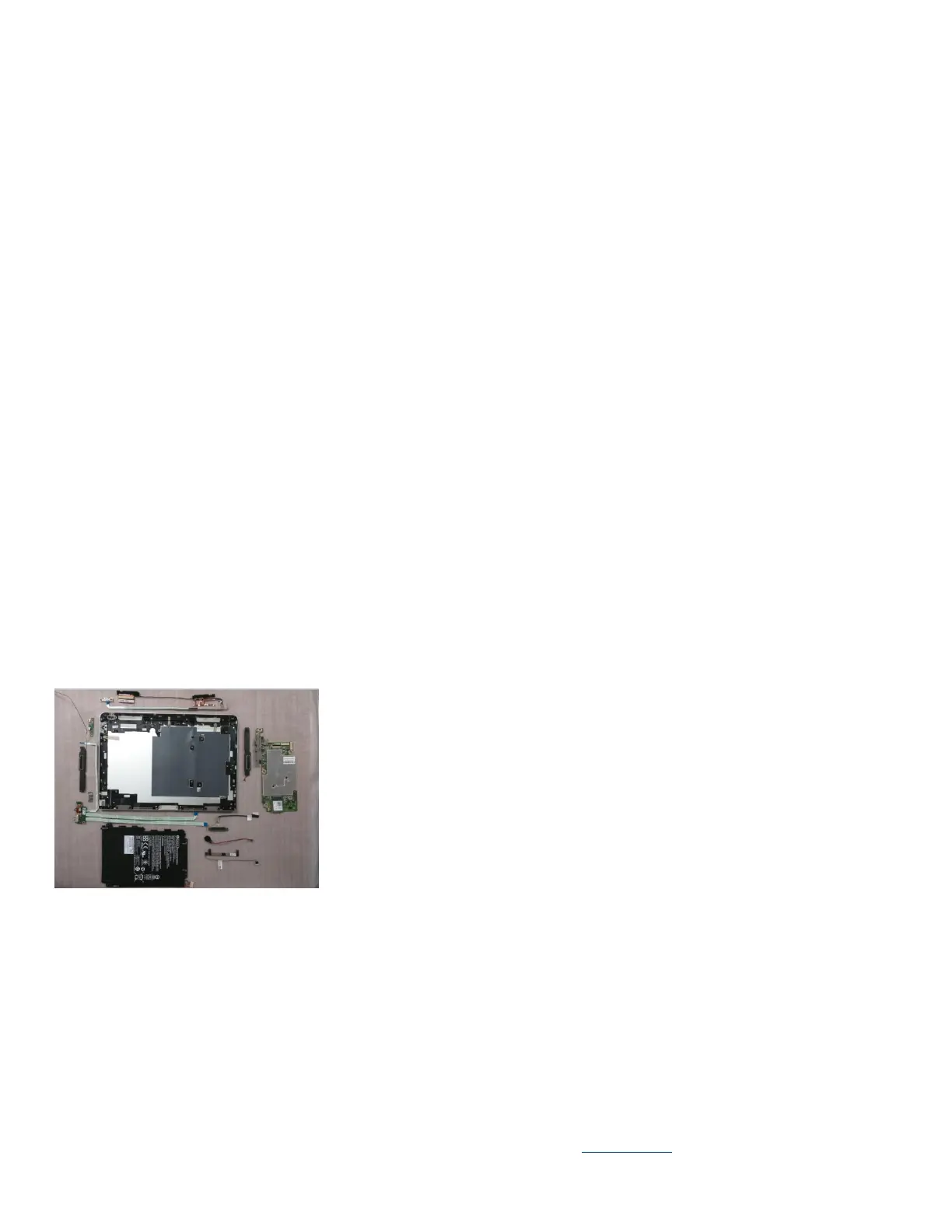

3.21 Total part disassembly
3.22 Remove battery module
To Next Page
