Hardware Upgrades and Replacements
Hardware and Software Guide 7–21
To insert a memory module:
a. Align the keyed (notched) edge of the module with the
keyed area in the memory slot 1.
If you are inserting a single memory module into a vacant
memory compartment, insert the module into the lower

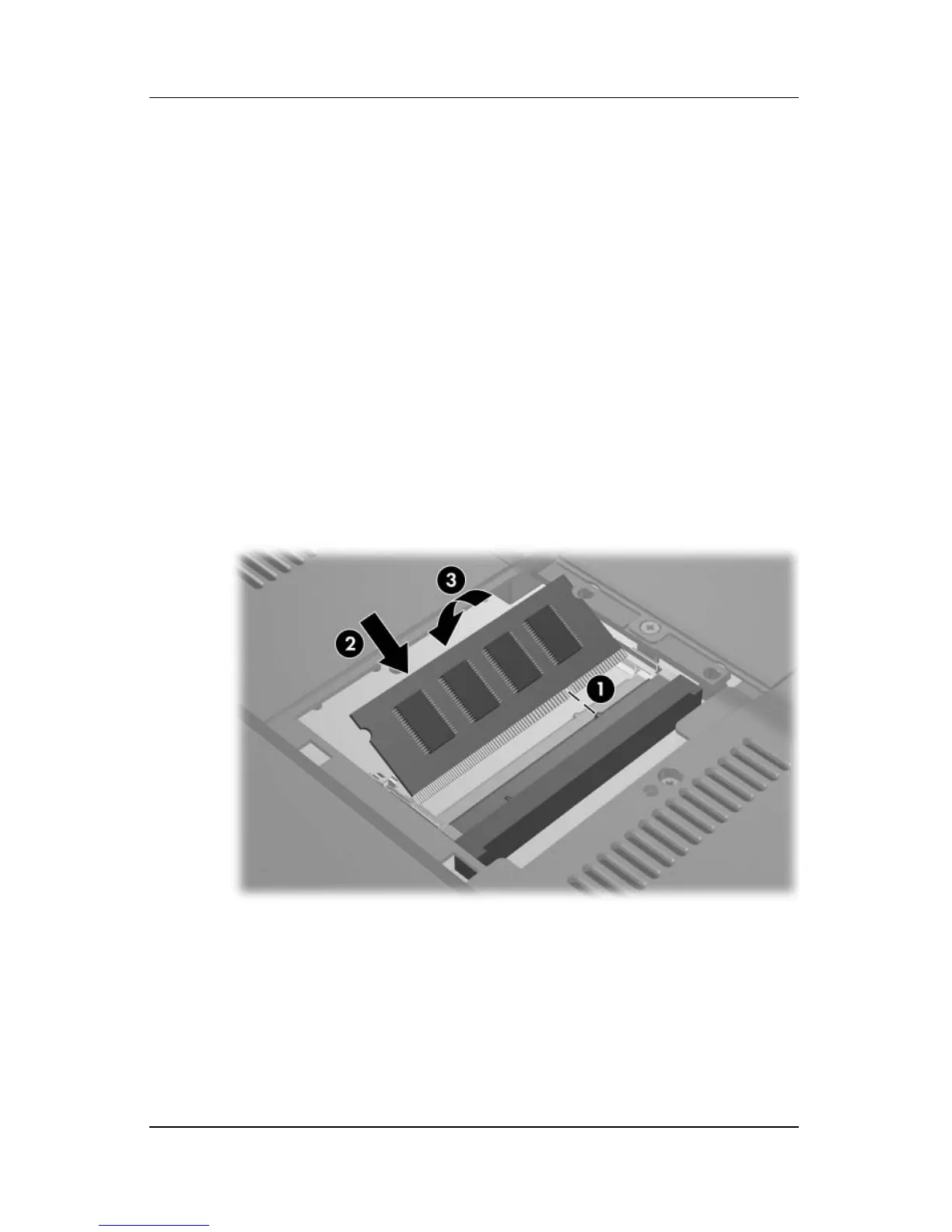

slot. (The following illustration shows a memory module
being inserted into the second slot of a memory
compartment that already contains a memory module.)
b. With the module at a 45-degree angle from the surface of
the memory compartment, press the module into the
memory slot until it is seated 2.
c. Push the module downward until the retention clips snap
into place 3.
