418 Hardware Guide
Drives
Connecting an Optional Digital Drive to the
USB Port
The optional Digital Drive can be connected to the USB port with
the USB cable either retracted or extended.
To connect the Digital Drive with the USB cable retracted:
1. Ensure that you have installed an SD Memory Card into
the Digital Drive.
2. Insert the USB connector on the Digital Drive into the
USB port on your notebook.

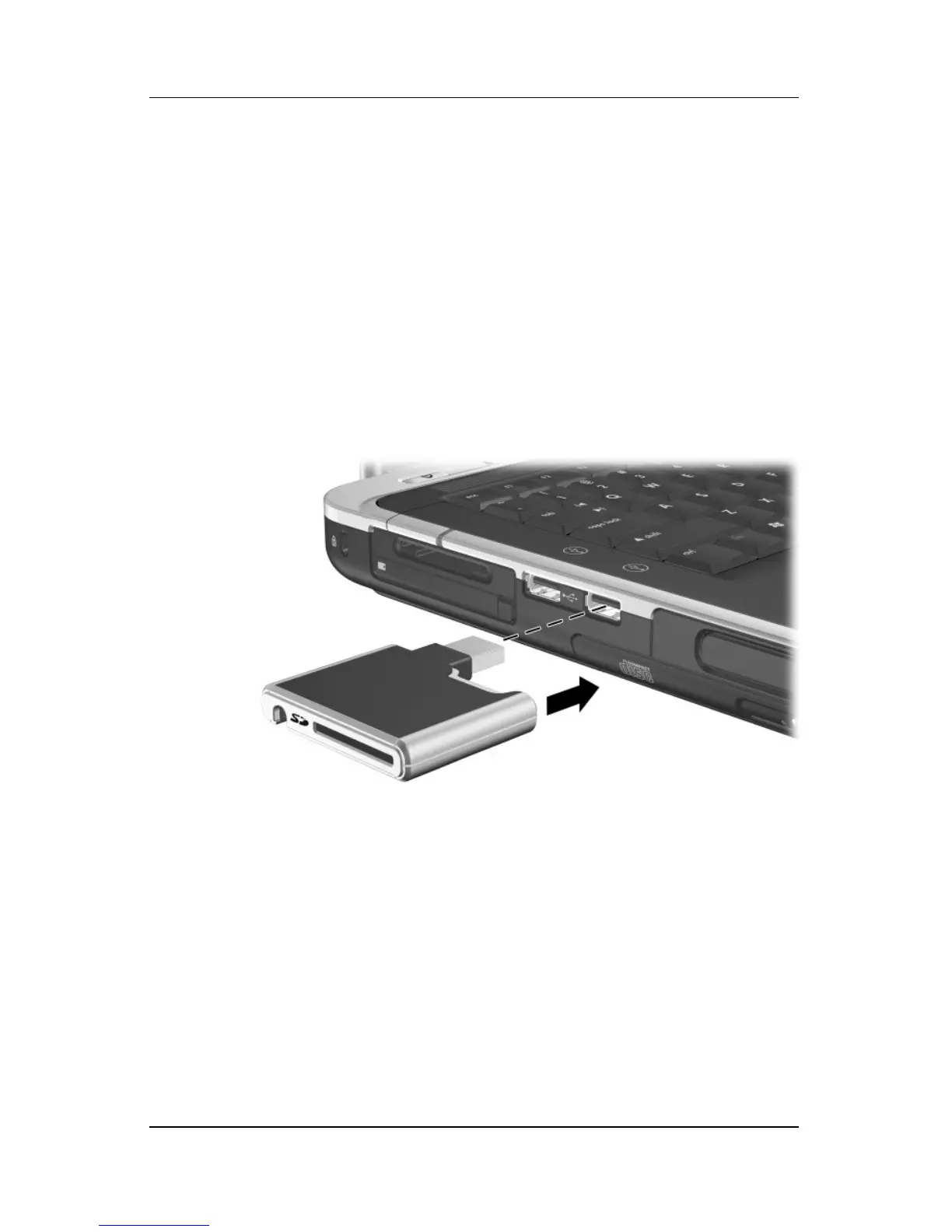

Connecting the Digital Drive to the USB port

Table of Contents

Other manuals for HP Pavilion zt3000 - Notebook PC

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP Pavilion zt3000 - Notebook PC and is the answer not in the manual?

HP Pavilion zt3000 - Notebook PC Specifications

General IconGeneral
ProcessorIntel Pentium M
RAMUp to 2GB DDR SDRAM
Storage40GB to 80GB HDD
Display15.4-inch WXGA TFT
GraphicsATI Mobility Radeon 9200
Operating SystemMicrosoft Windows XP Home or Professional
WeightApprox. 6.5 lbs (2.95 kg)
Battery6-cell Lithium-Ion battery
ChipsetIntel 855PM
Optical DriveDVD-ROM/CD-RW Combo Drive
Wireless802.11b/g
Networking10/100 Ethernet
PortsVGA, S-Video, RJ-11, RJ-45, headphone, microphone, IEEE 1394
Dimensions10.6 inches
