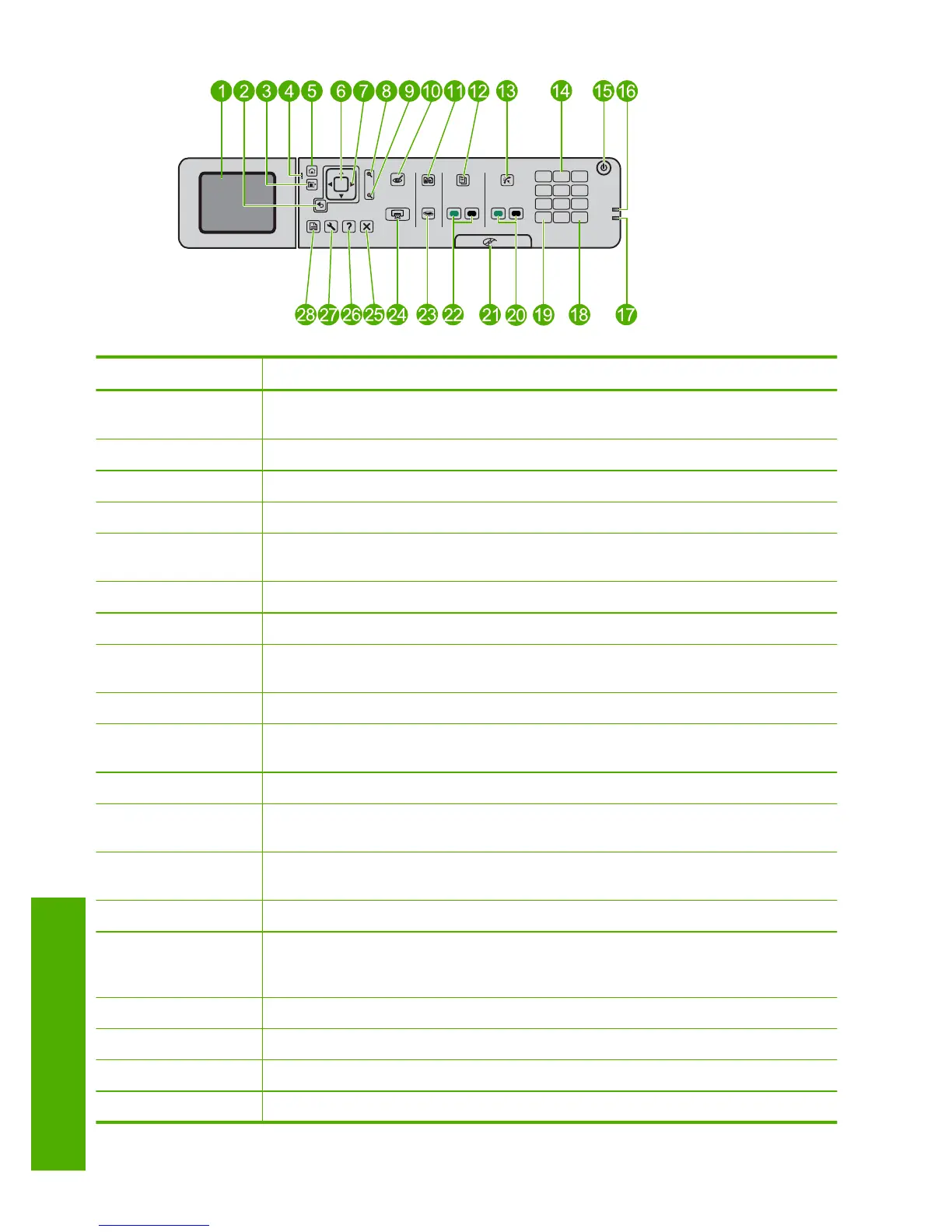

Label Name and Description
1 Color graphics display (also referred to as the display): Displays menus, photos, and
messages. The display can be pulled up and angled for better viewing.
2 Back: Returns to the previous screen.
3 Menu: Presents a set of options related to the current display.
4 Attention light: Indicates a problem occurred. See the display for more information.
5 Home: Returns to the Home screen (the default screen when you turn on the
product).
6 OK: Selects a menu setting, value, or photo.
7 Directional pad: Navigates through photos and menu options.
8 Zoom In: Zooms in on a photo. Use this button together with the arrows on the
directional pad to crop the photo before printing.
9 Zoom Out: Zooms out to show more of a photo.
10 Red-Eye Removal: Turns the Red-eye Removal feature on or off. The setting applies
to all the photos in the print queue.
11 Photo Reprints: Makes a copy of an original photo placed on the glass.
12 Quick Forms: Prints a variety of blank forms, such as school paper, music paper,
mazes, and checklists.
13 Auto Answer: Turns the Auto Answer feature on or off. The recommended setting
varies depending on the services and equipment on your phone line.
14 Keypad: Enters fax numbers, values, or text.
15 On: Turns the product on or off. When the product is off, a minimal amount of power
is still used. To completely remove power, turn off the product, then unplug the power
cord.
16 Wireless network indicator light: Indicates that the Wireless Radio is on.
17 Bluetooth indicator light: Indicates that the Bluetooth Radio is on.
18 Space: Enters spaces and pound signs for fax-related tasks.
19 Symbols: Enters symbols and asterisks for fax-related tasks.
