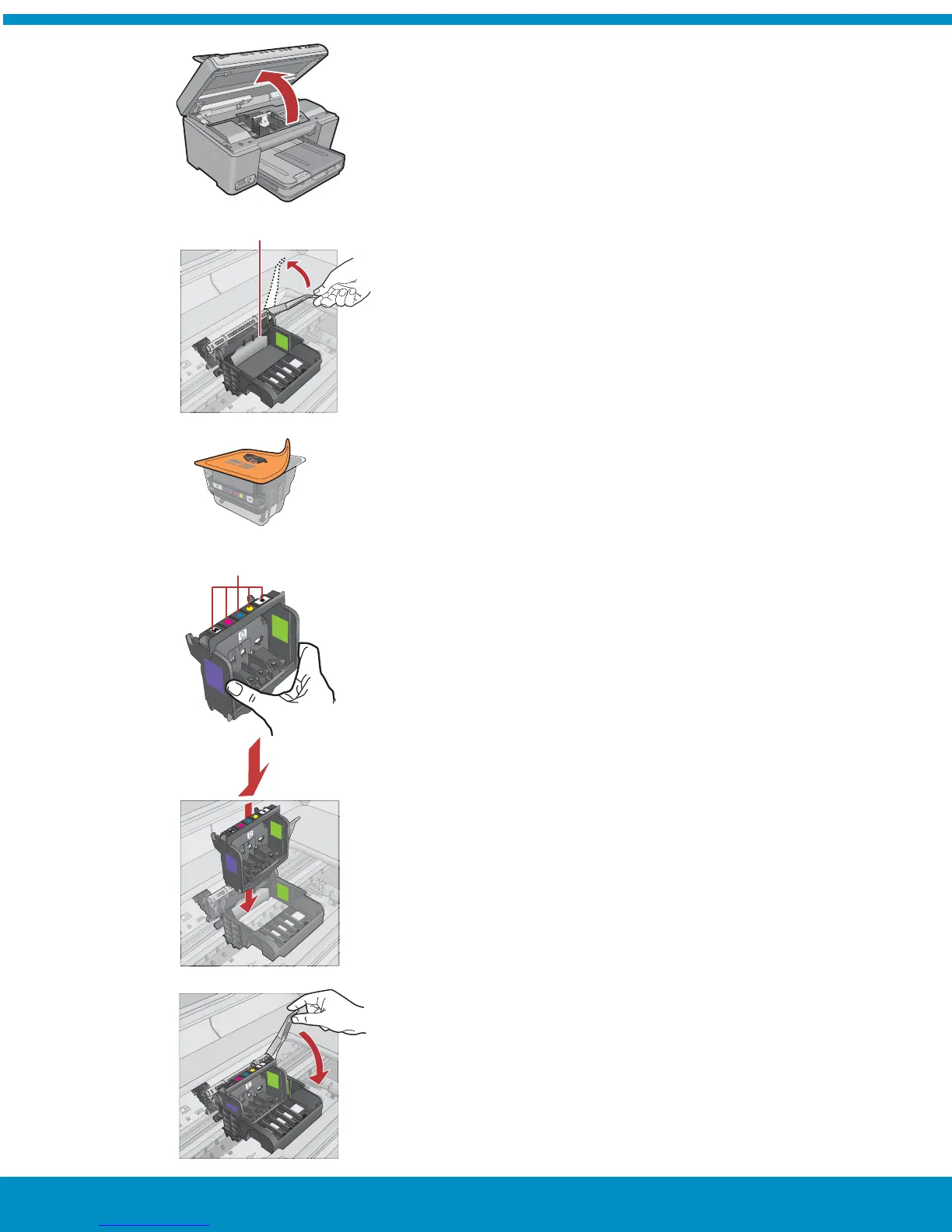

Remove the printhead from the packaging.
Do not touch the copper colored contacts.
Do not scratch the contacts on the printer or other surface.
c.
Open the ink cartridge access door. a.
Firmly raise the gray latch, as shown. b.
Hold the printhead upright, as shown. d.
Lower the printhead into the device so that the purple and
green blocks on the printhead are aligned with the purple
and green blocks on the device.
e.
Slowly lower the latch. f.
