HP LaserJet Printers

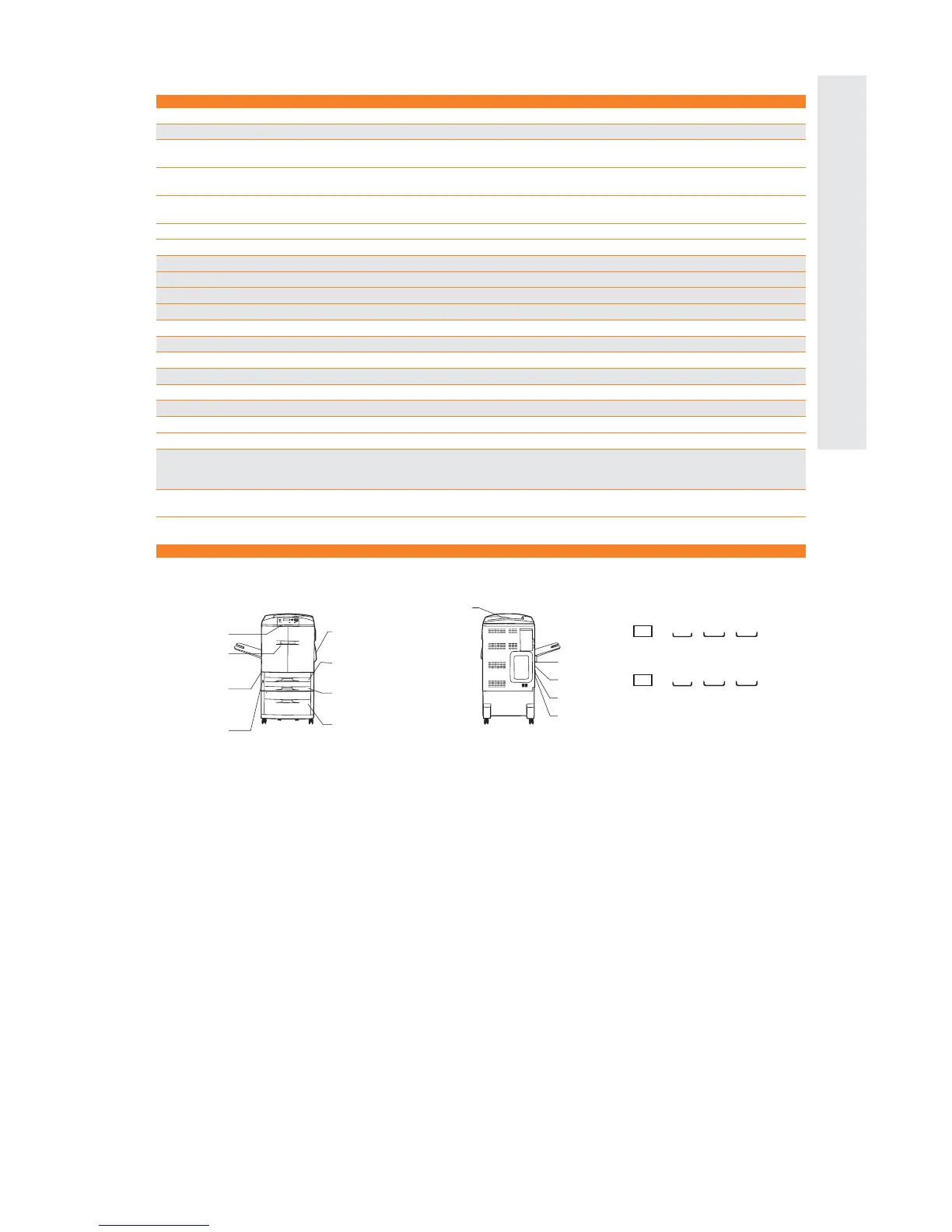

Model specifications, schematic and memory map
•Shaded rows indicate variations between models.
•See page 101 for complete specifications and comparisons to other HP LaserJet Printers.
Supplies and accessories
See pages 314–319 for additional information on paper-handling solutions and printer memory. Please see the November 2005 Supplies
IRG for complete supplies information (4AA0-0791ENUC).
1
Approximate page yield based on 5% coverage.
Print cartridges
•HP Color LaserJet Black Print
Cartridge with Smart Printing
Technology (25,000
1
) C8550A
•HP Color LaserJet Cyan Print
Cartridge with Smart Printing
Technology (25,000
1
) C8551A
•HP Color LaserJet Yellow Print
Cartridge with Smart Printing
Technology (25,000
1
) C8552A
•HP Color LaserJet Magenta Print
Cartridge with Smart Printing
Technology (25,000
1
) C8553A
Media
•HP Color LaserJet Presentation Paper,
soft gloss, letter (200 sheets) Q6541A
•HP Color LaserJet Brochure Paper,
matte, letter (150 sheets) Q6543A
•HP Color LaserJet Photo and Imaging
Paper, glossy, letter (200 sheets) Q6545A
•HP Color LaserJet Photo and Imaging
Laser Paper, matte, letter (100 sheets)
Q6549A
Paper-handling accessories
•3,000-Sheet Stacker C8084A
•3,000-Sheet Stapler/Stacker C8085A
•Automatic Two-Sided Printing
Accessory C9674A
•Multifunction Finisher C8088A
LaserJet font solutions
These and many other font products
are available only from HP at:
661-257-5571 opt. 1 or
www.hp.com/go/laserjetfonts
•Barcodes and
More DIMM 36596DB C06
•4 in 1 Barcode DIMM 36596DT 0104
•Tax 1 DIMM 36596DB 00T
•Scalable Code
39/OCR-B DIMM 36596DT 0W1
Memory and mass storage
•SDRAM DIMM (168-pin):
64 MB C7848A
128 MB C7850A
256 MB C9653A
•20 GB EIO Hard Disk
(std on 9500hdn) J6073A
Other
•Imaging Drums:
40,000-Page Black C8560A
40,000-Page Cyan C8561A
40,000-Page Yellow C8562A
40,000-Page Magenta C8563A
•50,000-Page Image
Cleaning Kit C8554A
•200,000-Page Image
Transfer Kit C8555A
•100,000-Page Image
Fuser Kit C8556A
Tray 1
100-sheet
Tray 2
500-sheet
Tray 3
500-sheet
Tray 4
2,000-sheet
Control panel
Print cartridge
access
Automatic
two-sided
printing
accessory
Power
HP Color LaserJet 9500 series
(9500hdn shown)
Front view Rear view
Memory map
9500n
Firmware
4 DIMM slots (J1, J2, J3, J4); J1 slot is taken by flashable
firmware DIMM, 3 DIMM slots (J2, J3, J4) can receive
168-pin, non-parity, SDRAM memory modules; extended
data output (EDO) DIMMs are not supported; CAUTION;
J4 slot is not available if J5 (100-pin slot) is occupied.
Open
416 MB Maximum Usable Memory/3 Slots
32 MB
Installed
Open
128 MB
Note: For 9500n,
2,000-sheet tray 4
is not available and
automatic two-sided
printing accessory
is optional. On rear
view, ports and slots
are located on side
panel. EIO slot 2
shows hard disk,
optional on 9500n.
EIO slot 3
EIO slot 2
EIO slot 1
Parallel port
9500hdn
Firmware Open
416 MB Maximum Usable Memory/3 Slots
32 MB
Installed
Open
256 MB
Output tray
9500n 9500hdn
Product Number C8546A C8547A
Print Speed Black, Best
Quality, Letter
Up to 24 ppm Up to 24 ppm
Print Speed Color, Best
Quality, Letter
Up to 24 ppm Up to 24 ppm
First Page Out
Ready state: 17.5 secs; Powersave (idle less than 1 hour):
2.5 mins; cold start or power-up: 5.9 mins
Ready state: 17.5 secs; Powersave (idle less than 1 hour):
2.5 mins; cold start or power-up: 5.9 mins
Processor
500 MHz 500 MHz
Duty Cycle, Monthly
200,000 pages 200,000 pages
Paper Trays, Std 3 4
Paper Trays, Max 3 4
Input Capacity, Std 1,100 sheets 3,100 sheets
Input Capacity, Max 1,100 sheets 3,100 sheets
Output Capacity, Std
600 sheets 600 sheets
Output Capacity Max 600 sheets 3,500 sheets
Envelope Input, Max
10 10
Two-Sided Printing Automatic (optional) Automatic (standard)
Media Sizes, Std
Letter, legal, executive, tabloid, foolscap, envelopes Letter, legal, executive, tabloid, foolscap, envelopes
Memory, Std 160 MB 288 MB
Memory, Max
416 MB 416 MB
Typefaces
80 built-in scalable PCL, 80 built-in scalable PostScript 80 built-in scalable PCL, 80 built-in scalable PostScript
Connectivity, Std IEEE 1284-compliant bidirectional parallel, Jetlink,
HP Jetdirect 620n print server in EIO slot, 2 open EIO slots
IEEE 1284-compliant bidirectional parallel, Jetlink,
HP Jetdirect 620n print server in EIO slot, hard disk in
EIO slot, 1 open EIO slot
Connectivity, Opt
Fast Infrared (FIR), HP Jetdirect internal, external and wireless
print servers, connectivity card for USB/Serial/LocalTalk
Fast Infrared (FIR), HP Jetdirect internal, external and wireless
print servers, connectivity card for USB/Serial/LocalTalk
Print Languages, Std
HP PCL 5c, PCL 6, HP postscript level 3 emulation,
direct PDF
HP PCL 5c, PCL 6, HP postscript level 3 emulation,
direct PDF
