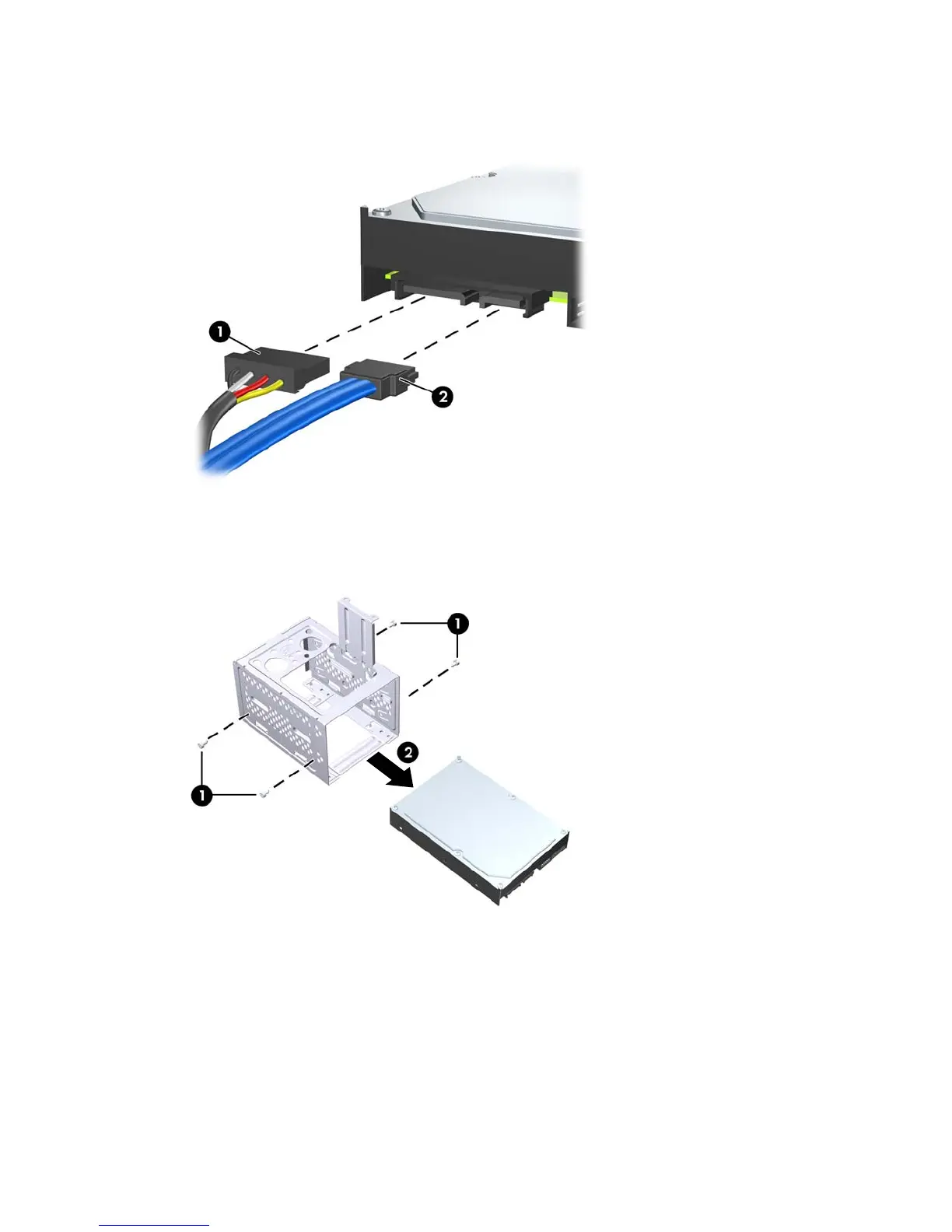

9. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 24 Disconnecting the Hard Drive Cables
10. Remove the four screws that secure the hard disk drive to the hard disk drive cage (1), then slide
the hard disk drive out of the hard disk drive cage (2).
Figure 25 Removing the Hard Drive
22 Hardware Upgrades
