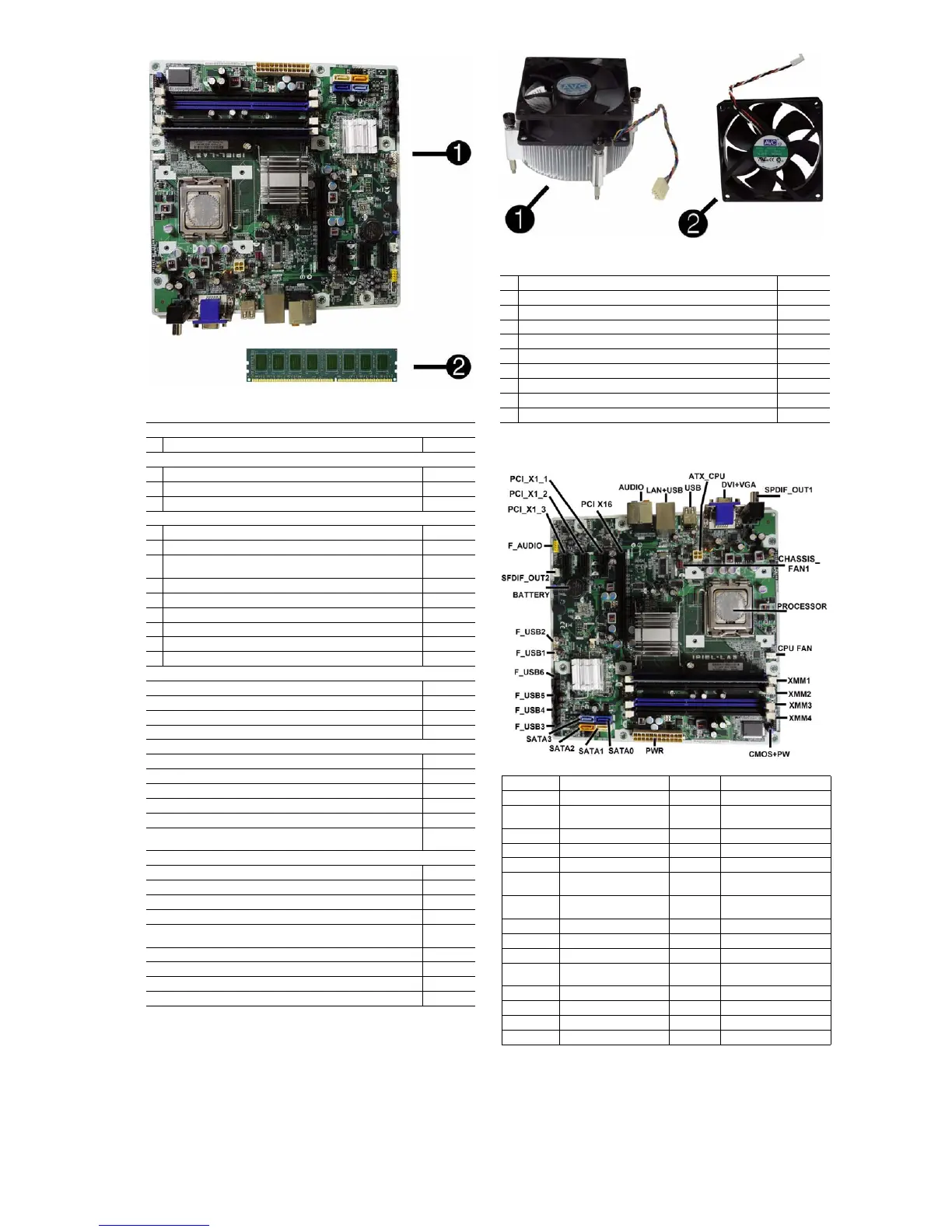

HP Pro 3010 Illustrated Parts & Service Map, MT chassis 597660-001 page 2
System Board
Standard and Optional Boards
System boards with thermal grease, alcohol pad, and CPU socket cover
1 System board 583365-001
Memory modules (PC3-10600, CL9)
21 GB
576109-001
*2 GB
576110-001
* 4 GB (4 x 1-GB DIMM)
576109-001
Other boards
* Agere International 56K LSI v92 modem, includes bracket 490689-001
* ATI Radeon HD4550 (RV710) PCIe x16 graphics card, 256 MB 538051-001
* ATI Radeon HD4650 (RV730) PCIe x16 graphics card, 1 GB, 15 month
warranty, EMEA only
578174-001
* Nvidia Quadro NVS2100 512-MB PCIe graphics card, low profile 589145-001
* Nvidia Quadro NVS4100 512-MB PCIe graphics card 589146-001
* GeForce GT230 1.5-GB PCIe graphics card 586381-001
* GeForce GT210 512-MB PCIe graphics card (for use in MT) 586382-001
* 802.11b/g/n WLAN PCIe adapter 538048-001
* Intel Gigabit NIC, includes bracket 490367-001
Intel Celeron Processors with alcohol pad and thermal grease:
E3300, 1-MB cache, 2.50 GHz 585886-001
E3200, 1-MB cache, 2.40 GHz 585885-001
E1500, 512-KB cache, 2.20 GHz 516899-001
440, 512-KB cache, 2.00 GHz 449166-001
Intel Core2 Quad Processors with alcohol pad and thermal grease:
Q9650, 12-MB cache, 3.00 GHz 497734-001
Q9550, 12-MB cache, 2.83 GHz 465758-001
Q9400, 6-MB cache, 2.66 GHz 497733-001
Q9300, 6-MB cache, 2.5 GHz 466172-001
Q8400, 4-MB cache, 2.66 GHz 573955-001
Q8300, 4-MB cache, 2.5 GHz 583005-001
516901-001
Intel Core2 Duo Processors with alcohol pad and thermal grease:
E8600, 6-MB cache, 3.33 GHz 497732-001
E8500, 6-MB cache, 3.16 GHz 466170-001
E8400, 6-MB cache, 3.00 GHz 466169-001
E7600, 3-MB cache, 3.06 GHz 573954-001
E7500, 3-MB cache, 2.93 GHz 583006-001
531988-001
E6500, 2-MB cache, 2.93 GHz 586748-001
E6300, 2-MB cache, 2.80 GHz 580748-001
E5400, 2-MB cache, 2.70 GHz 586743-001
E5300, 2-MB cache, 2.60 GHz 586747-001
* Not shown
Miscellaneous Parts
1 Heatsink with alcohol pad and factory-applied thermal grease 592506-001
2 Chassis fan 438741-001
*
Media card reader 480032-001
*
USB powered speakers 571536-001
*
Backplate, heat sink 486446-001
* Foot kit 530593-001
* Mouse, USB 537749-001
* Mouse, optical 537748-001
* Mouse, laser 570580-001
* Antenna, 802.11 583345-001
*Not shown
System Board Connectors and Jumpers (component location may vary)
PCI X16 PCIe X16 connector SATA0 Primary SATA hard drive
AUDIO Double stack audio connector SATA1 1st SATA optical drive
LAN+USB Stacked RJ-45/Double USB
connectors
SATA2 2nd SATA optical drive
USB USB connector SATA3 2nd SATA hard drive
ATX_CPU CPU power connector F_USB3 1st USB header
DVI+VGA Stacked DVI/VGA connector F_USB4 2nd USB header
SPDIF_
OUT1
Digital line-in/line-out audio
connector (external)
F_USB5 3rd USB header
CHASSIS_
FAN1
System fan connector F_USB6 4th USB header
PROCESSOR Processor slot F_USB1 Front I/O USB connector
CPU FAN CPU/heat sink fan connector F_USB2 Media card reader connector
XMM1 Memory socket 1 BATTERY Battery slot
XMM2 Memory socket 2 SPDIF_
OUT2
Digital line-in/line-out audio
connector (internal)
XMM3 Memory socket 3 F_AUDIO Front panel connector
XMM4 Memory socket 4 PCIE_X1_3 PCIe X1,slot 3
CMOS+PW CMOS/Password header PCIE_X1_3 PCIe X1, slot 2
PWR Main power connector PCIE_X1_1 PCIe X1, slot 1
