HP Pro 3330/3380, MT 670583-001 page 2
System Board
Standard and Optional Boards
Memory modules (PC3-10600, CL9)
*1 GB
635802-001
*2 GB
635803-001
*4 GB
585157-001
Other boards
* ATI Radeon HD 6350 512-MB graphics adapter 637995-001
* ATI Radeon HD 6450 512-MB graphics adapter 637996-001
* ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16 666330-001
* nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16 632486-001
* nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1 632827-001
* nVidia GeForce GT405 512-MB graphics adapter 657108-001
* Intel Gigabit NIC, includes bracket 490367-001
Intel Core i7 processors (include thermal material)
* 2600, 3.4 GHz, 8-MB L3 cache 638632-001
Intel Core i5 processors (include thermal material)
* 2500, 3.3 GHz, 6-MB L3 cache 638631-001
* 2400, 3.1 GHz, 6-MB L3 cache 638630-001
* 2390, 2.7 GHz, 3-MB L3 cache 663349-001
* 2310, 2.9 GHz, 6-MB L3 cache 657111-001
Intel Core i3 processors (include thermal material)
* 2120, 3.3 GHz, 3-MB L3 cache 638629-001
* 2105, 3.1 GHz, 3-MB L3 cache 655970-001
* 2100, 3.1 GHz, 3-MB L3 cache 638628-001
Intel Pentium Dual-Core processors (include thermal material)
* G850, 2.9 GHz, 3-MB L3 cache 655973-001
* G840, 2.8 GHz, 3-MB L3 cache 655972-001
* G620, 2.6 GHz, 3-MB L3 cache 655971-001
Intel Celeron Dual-Core processors (include thermal material)
* G540, 2.5 GHz, 2-MB L3 cache 666892-001
* G530, 2.4 GHz, 2-MB L3 cache 666891-001
* G440, 1.6 GHz, 1-MB L3 cache 666890-001
* Not shown
Diagnostic LEDs
LED Color LED Activity State/Message
Power Green On Computer on
Power Green 1 blink every 2 seconds Normal Suspend Mode
Power Red 1 blink every second followed
by a 2 second pause
CPU thermal shutdown
Power Red 3 blinks, 1 blink every second
followed by a 2 second pause
Processor not installed
Power Red 4 blinks, 1 blink every second
followed by a 2 second pause
Power failure (power supply overload)
Power Red 5 blinks, 1 blink every second
followed by a 2 second pause
Pre-video memory error
Power Red 6 blinks, 1 blink every second
followed by a 2 second pause
Pre-video graphics error
Power Red 7 blinks, 1 blink every second
followed by a 2 second pause
System board failure (ROM
Power Red 8 blinks, 1 blink every second
followed by a 2 second pause
Invalid ROM based on Checksum
Power Red 9 blinks, 1 blink every second
followed by a 2 second pause
System powers on but is unable to boot
Power Red 10 blinks, 1 blink every second
followed by a 2 second pause
Bad option card
Power Red 11 blinks, 1 blink every second
followed by a 2 second pause
Current processor does not support a
feature previously enabled.
none none System does not power on and
LEDs are not flashing
System unable to power on

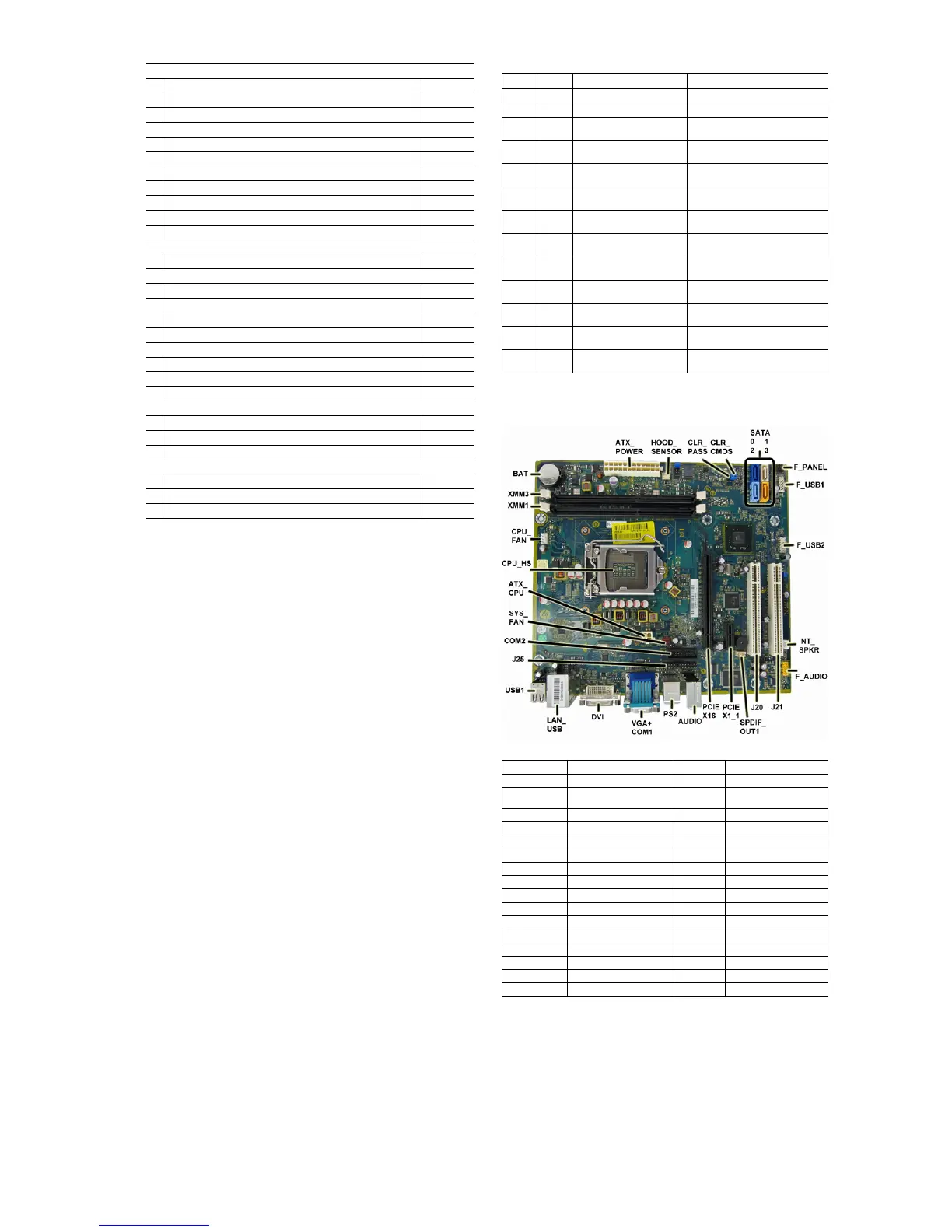

System Board Connectors and Jumpers (component location may vary)
ATX_POWER Main power connector PCIEX16 PCIe X16 expansion slot
HOOD_SENSOR Hood sensor connector AUDIO Audio connectors
CLR_PASS Password header PS2 Legacy keyboard and mouse
connectors
CLR_CMOS CMOS header VGA+COM1 Monitor+serial connector
SATA0 1st hard drive DVI DVI connector
SATA1 2nd hard drive LAN+USB LAN + USB connector
SATA2 1st optical drive USB1 USB connectors
SATA3 2nd optical drive J25 Parallel port connector
F_PANEL Front panel connector COM2 2nd serial port connector
F_USB1
1st USB connector SYS_FAN Fan connector
F_USB2
2nd USB connector ATX_CPU CPU power connector
INT_SPRK Speaker connector CPU HS
Processor socket
F_AUDIO Front audio connector
CPU_ FAN
Heat sink fan connector
J21 PCI expansion slot XMM1 Memory socket - Channel A
J20 PCI expansion slot XMM3 Memory socket - Channel B
SPDIF_OUT1 S/PDIF audio connector BAT RTC battery socket
PCIEX1_1 PCIe x1 expansion slot
