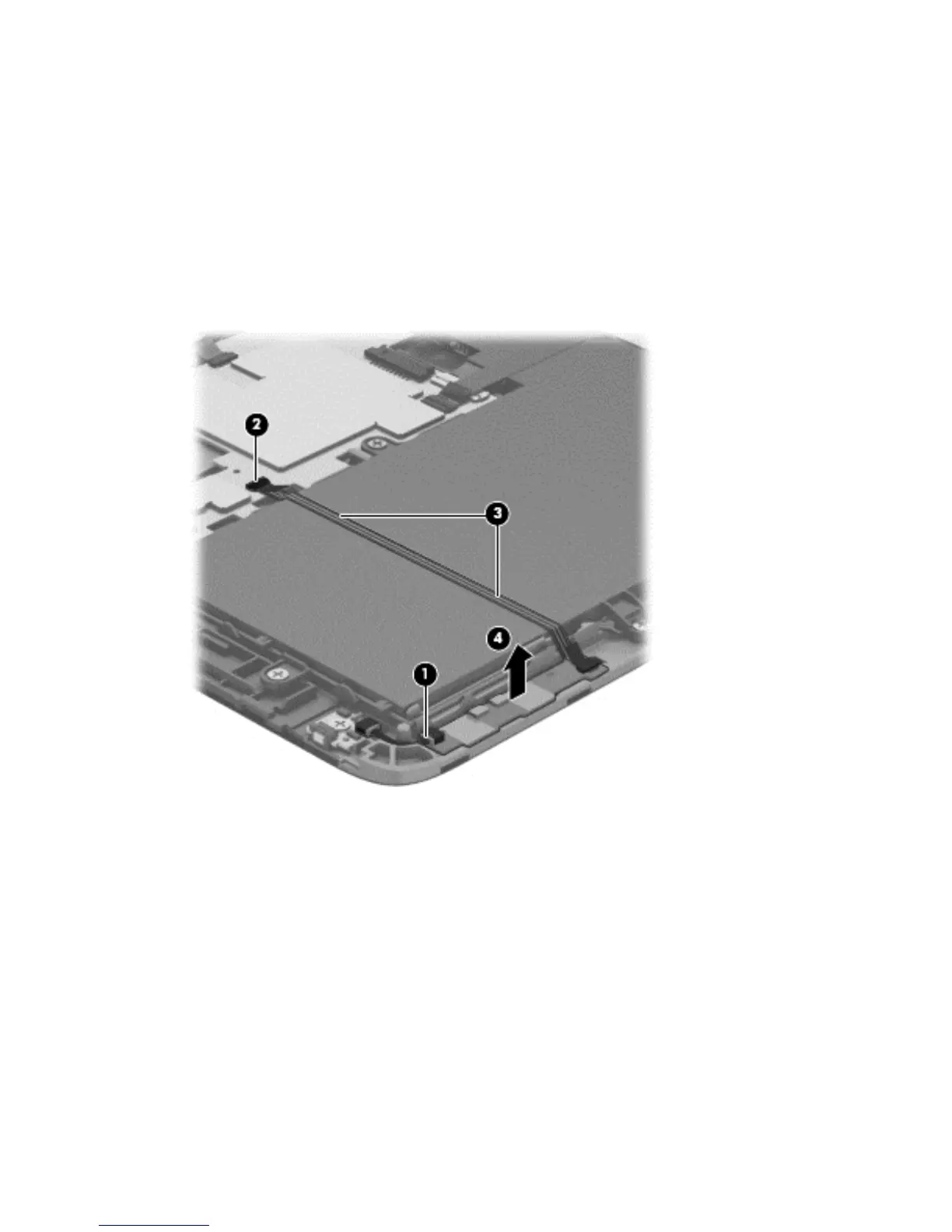

Remove the volume button board:
1. Disconnect the power button board cable (1) from the volume button board.
2. Release the zero insertion force (ZIF) connector (2) to which the volume button board cable is
attached, and then disconnect the volume button board cable from the system board.
3. Detach the volume button board cable (3) from the battery. (The volume button board cable is
attached to the battery with double-sided adhesive.)
4. Detach the volume button board (4) from the display assembly. (The volume button board is
attached to the display assembly with double-sided adhesive.)
5. Remove the volume button board and cable.
Reverse this procedure to install the volume button board.
24 Chapter 5 Removal and replacement procedures
