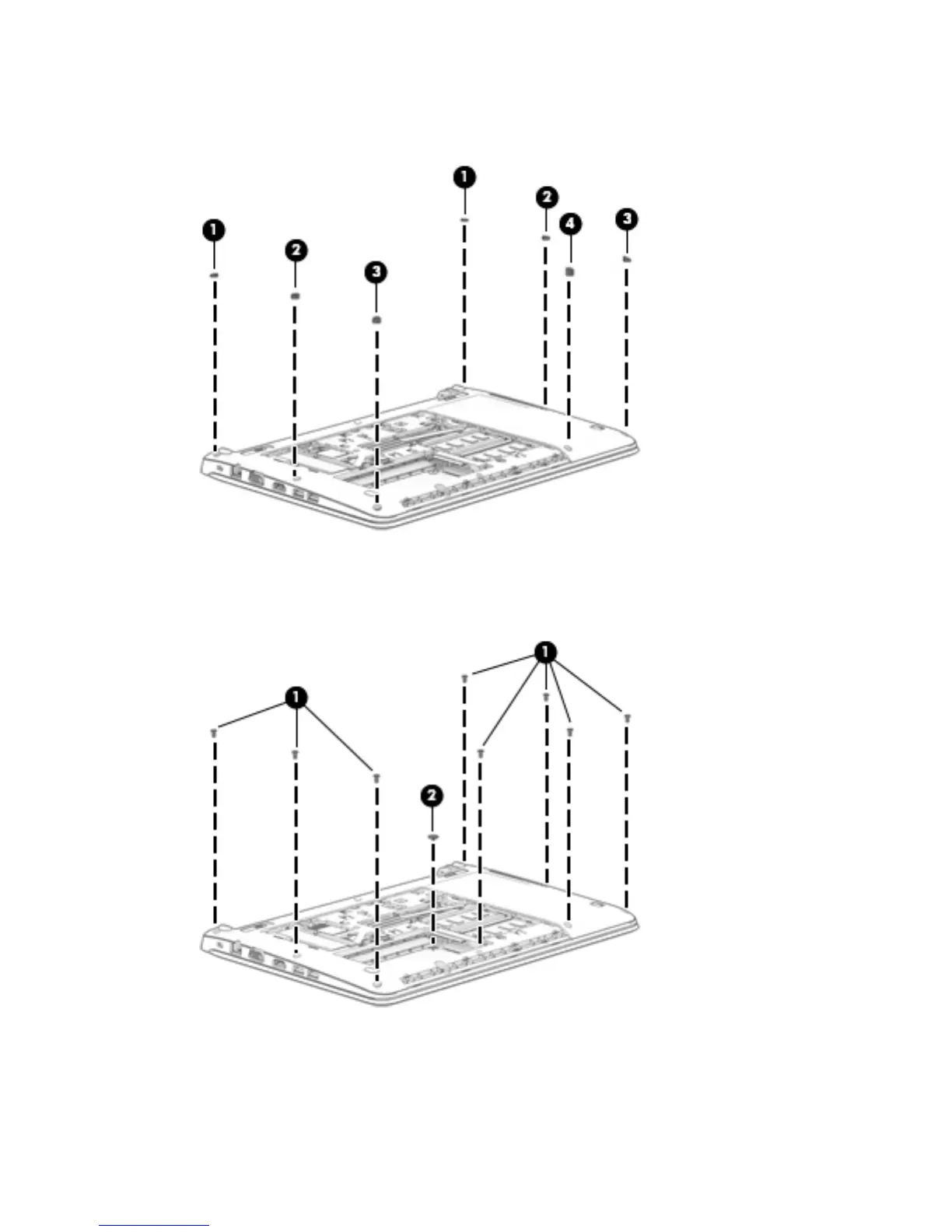

2. Remove the 2 large rubber screw covers on each side of the battery (1), 2 rubber screw covers near the
middle sides (2), 3 small rubber screw covers from the bottom corners (3), and large screw cover near
the bottom of the computer (4).
3. Remove the 8 Torx T8M2.5×6.0 screws (1) and the broadhead Phillips PM2.5×2.5 screw (2) that secures
the top cover to the computer.
4. Position the computer upright and open it as far as possible.
50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
