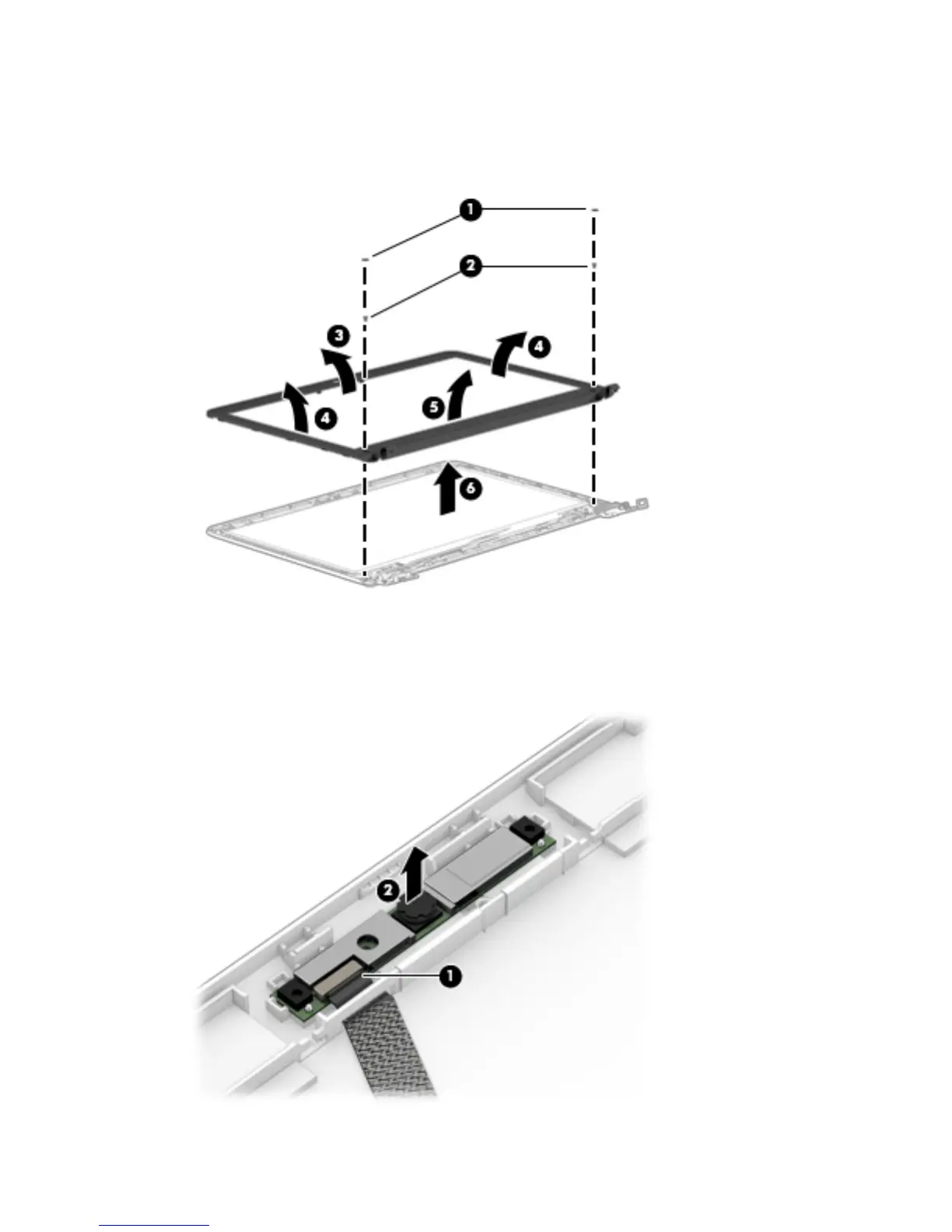

8. Remove the display bezel (6).
The display bezel is available using spare part number 826371-001 for models with a webcam and
826372-001 for models without a webcam. Display bezel mylar screw covers are available in the Rubber
Kit, spare part number 826389-001.
9. If it is necessary to replace the webcam or microphone module, disconnect the cable from the module
(1), and then gently pull the module away from the double-sided tape on the display enclosure (2).
The webcam module is available using spare part number 826395-001. The microphone module is
available using spare part number 826385-001.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
