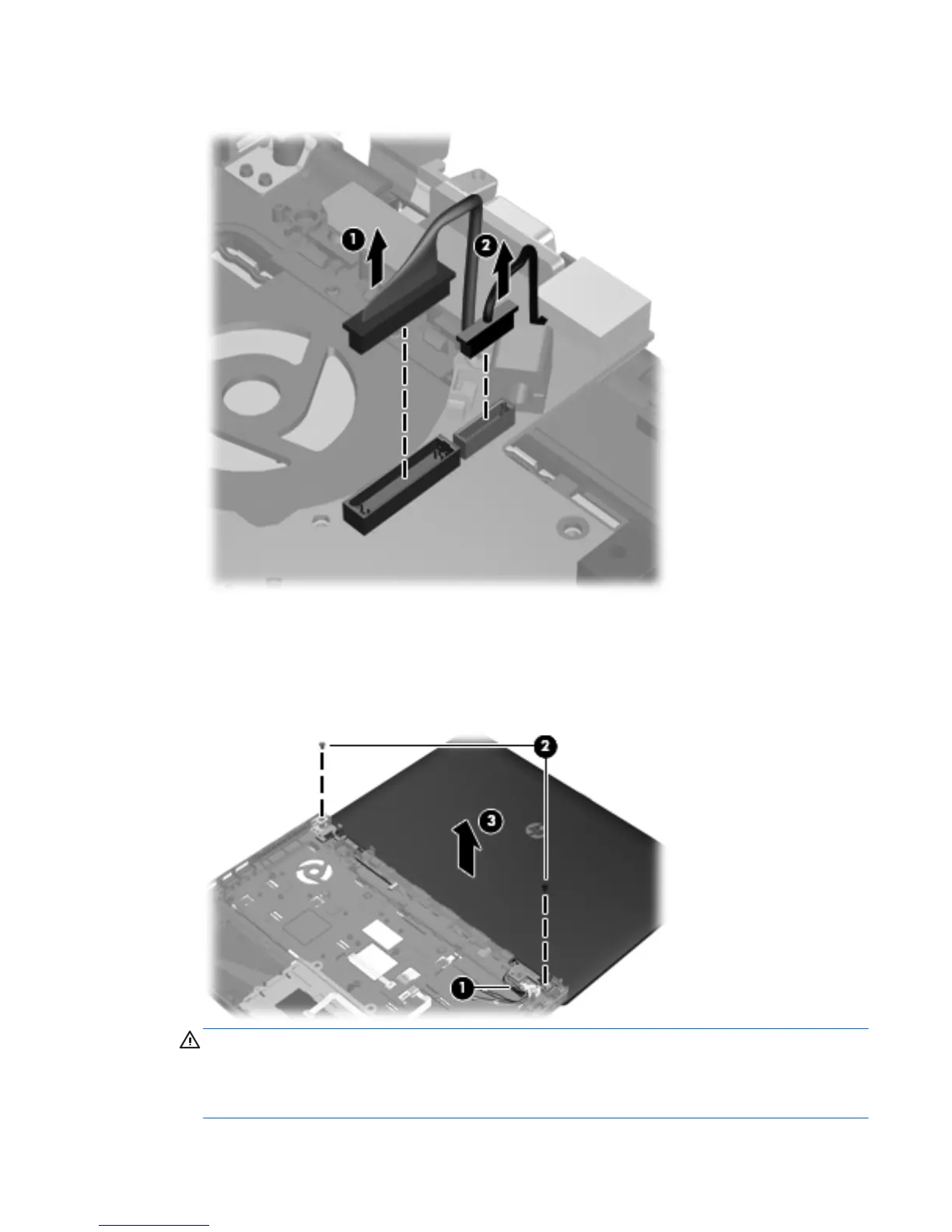

2. Disconnect the display cable (1) and webcam cable (2) from the system board.
3. Remove the antennas from the holes they route through in the computer (1) that secure the
display assembly to the computer.
4. Remove the two Phillips PM2.5×4.5 screws (2).
5. Lift the display assembly (3) straight up and remove it.
CAUTION: When installing the display assembly, be sure that the wireless antenna cables are
routed and arranged properly.
Failure to properly route the antennas can result in degradation of the computer's WLAN and
WWAN performance.
Component replacement procedures 111
