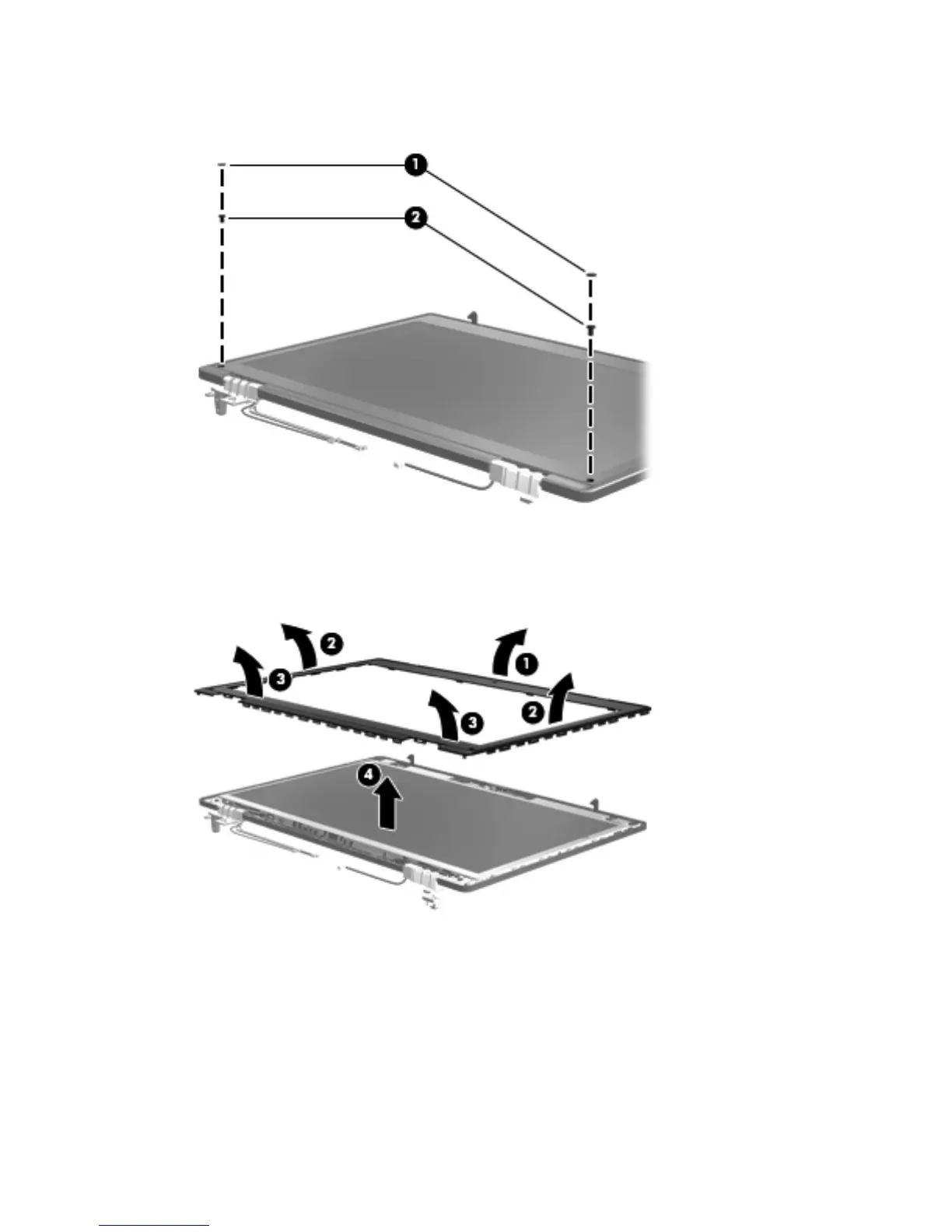

6. To remove the display bezel, remove the two rubber screw covers (1) and the two Phillips
PM2.5×5.0 screws (2) in the bottom corners of the display bezel.
7. Flex the top (1) of the bezel, the inside edges of the left and right sides (2), and then the bottom
(3) of the bezel until it disengages from the display enclosure.
8. Remove the display bezel (4).
9. If it is necessary to replace the display panel, remove the four Phillips PM2.5×5.0 screws (1) at
the bottom of the display panel.
10. Remove the two broadhead Phillips PM2.0×4.0 screws (2) at the top of the display panel.
112 Chapter 4 Removal and replacement procedures
