HP ProBook 4330s - Page 74

8.

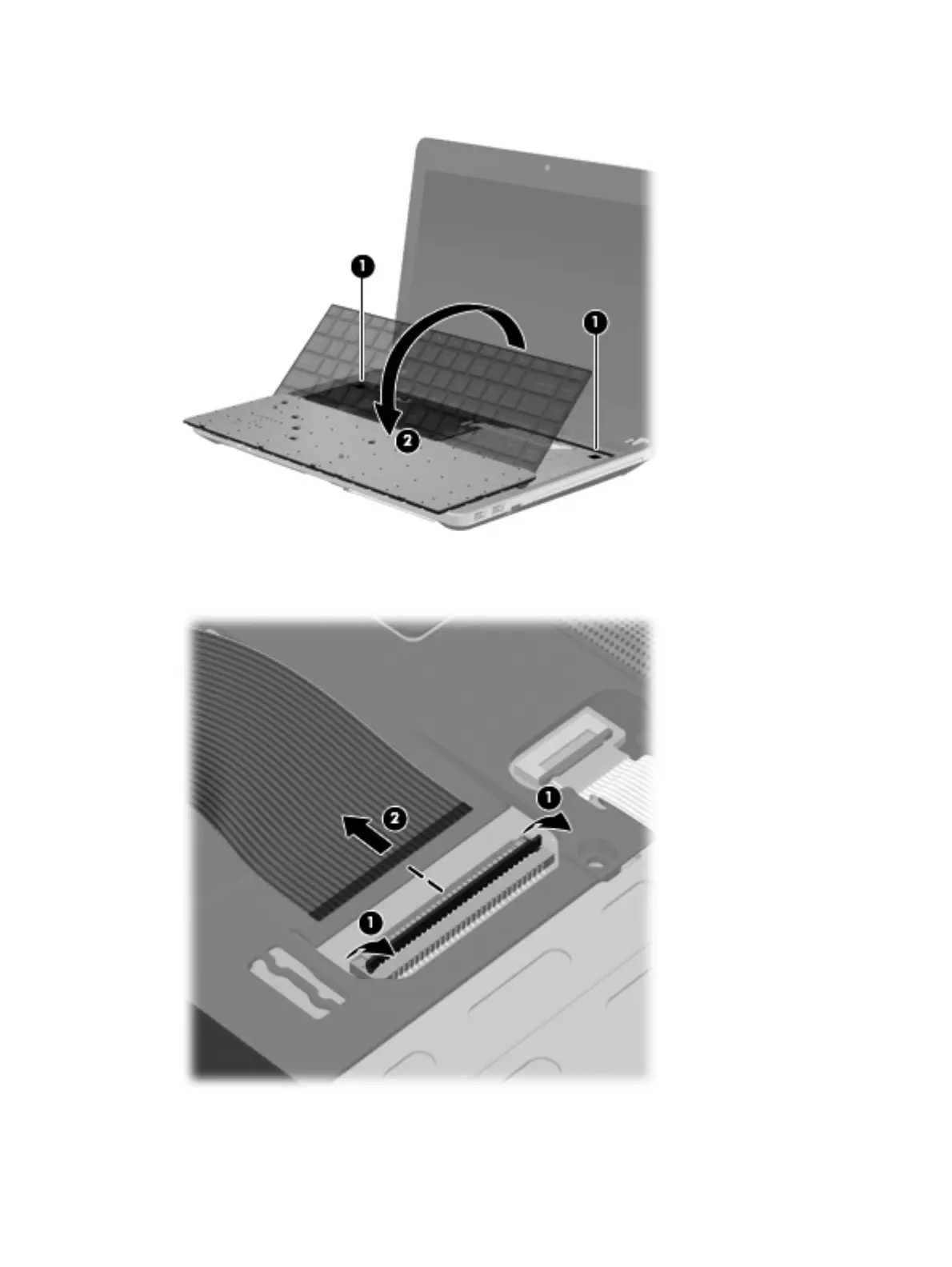

Lift and rotate the keyboard until it rests on the palm rest (2).
9. Lift the keyboard connector latch (1), and then disconnect the keyboard cable from the system
board (2).
10. Remove the keyboard.
66 Chapter 4 Removal and replacement procedures
