4.

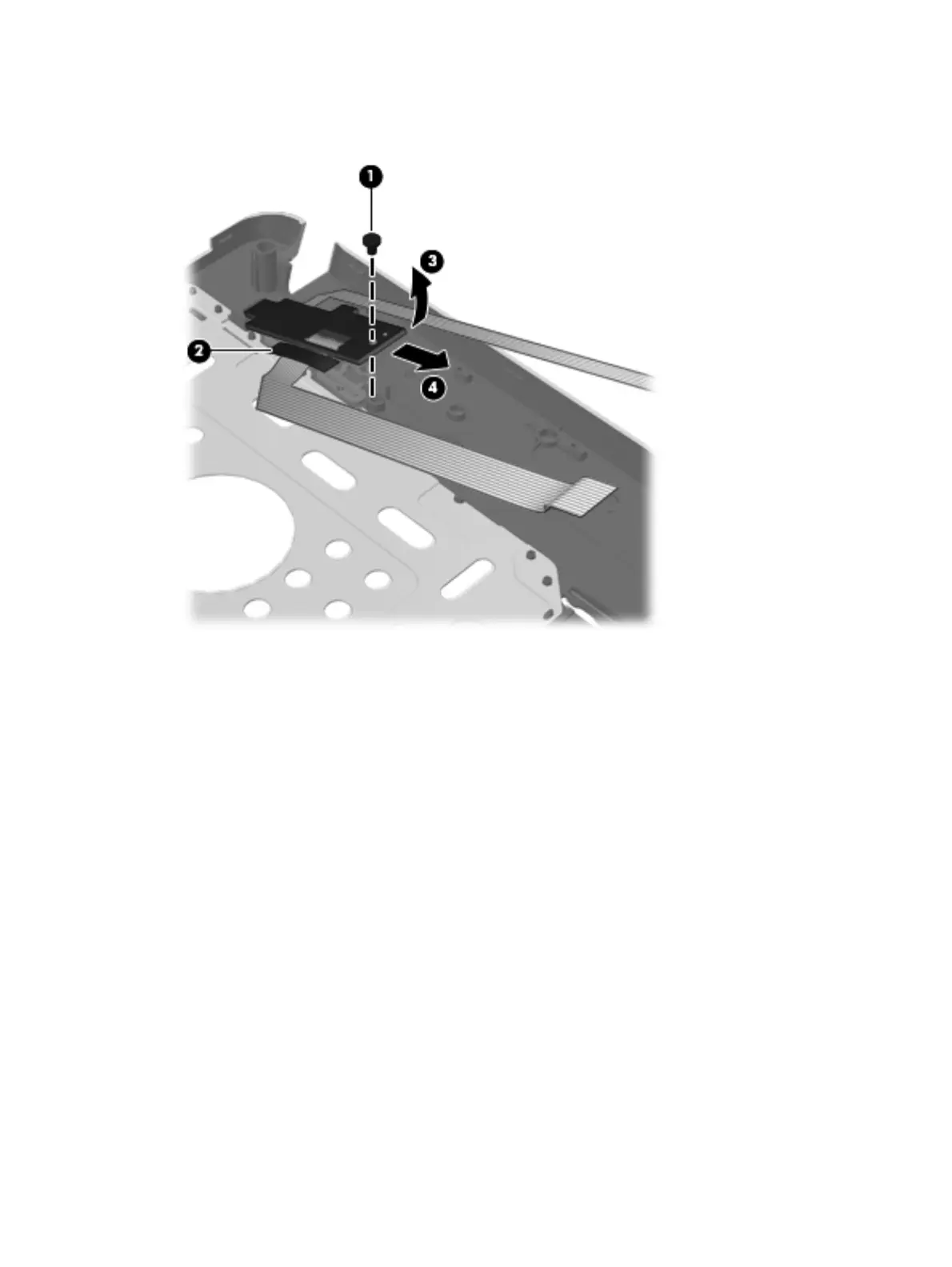

Lift the side of the board (3), slide it out from under the tab, and then remove the board from the
top cover (4).
5. Remove the Phillips PM2.0×3.0 screw (1) that secures the board to the top cover.
