13. If it is necessary to replace the webcam or microphone module, disconnect the cable from the module
(1), and then gently pull the module away from the double-sided tape on the display enclosure (2).
The webcam module is available using spare part number 721543-001, and the microphone module is
available using spare part number 721526-001.
NOTE: The removal and replacement procedure is the same for the webcam and microphone modules.

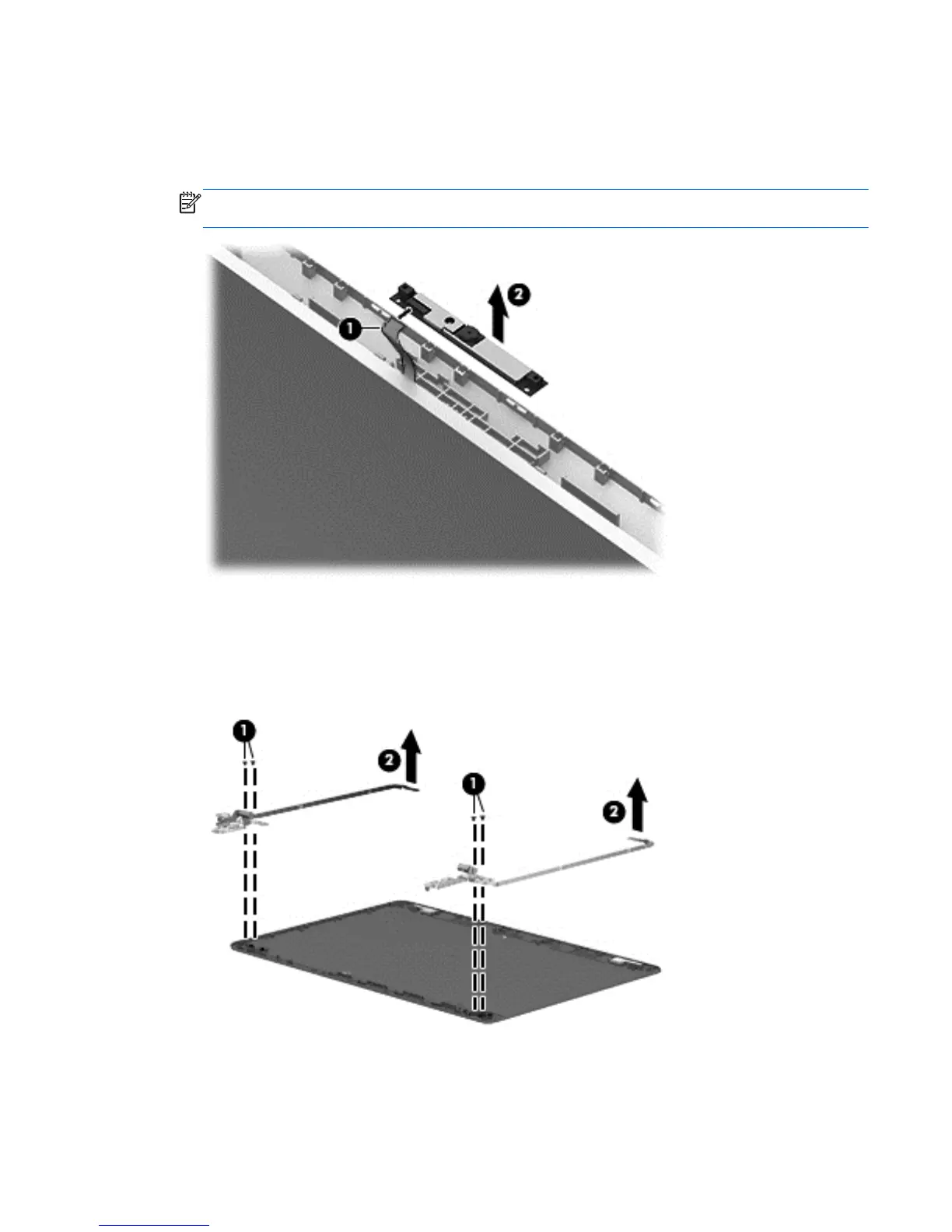

The following image illustrates a webcam module.
14. If it is necessary to replace the display hinges, remove the 4 Phillips PM2.5×3.0 screws (1) that secure
the display hinges to the display enclosure.
15. Remove the display hinges from the display enclosure (2).
Display hinges are available in the Display Hinge Kit using spare part number 721940-001.
Component replacement procedures 85
