e. Thermal shield (see Thermal shield on page 56)
f. Display assembly (see
Display assembly on computers with 15.6-in displays on page 71)
g. Palm rest (see
Palm rest on page 67)
h. Hard drive (see
Hard drive on page 69)
i. Top cover (see
Top cover on page 77)

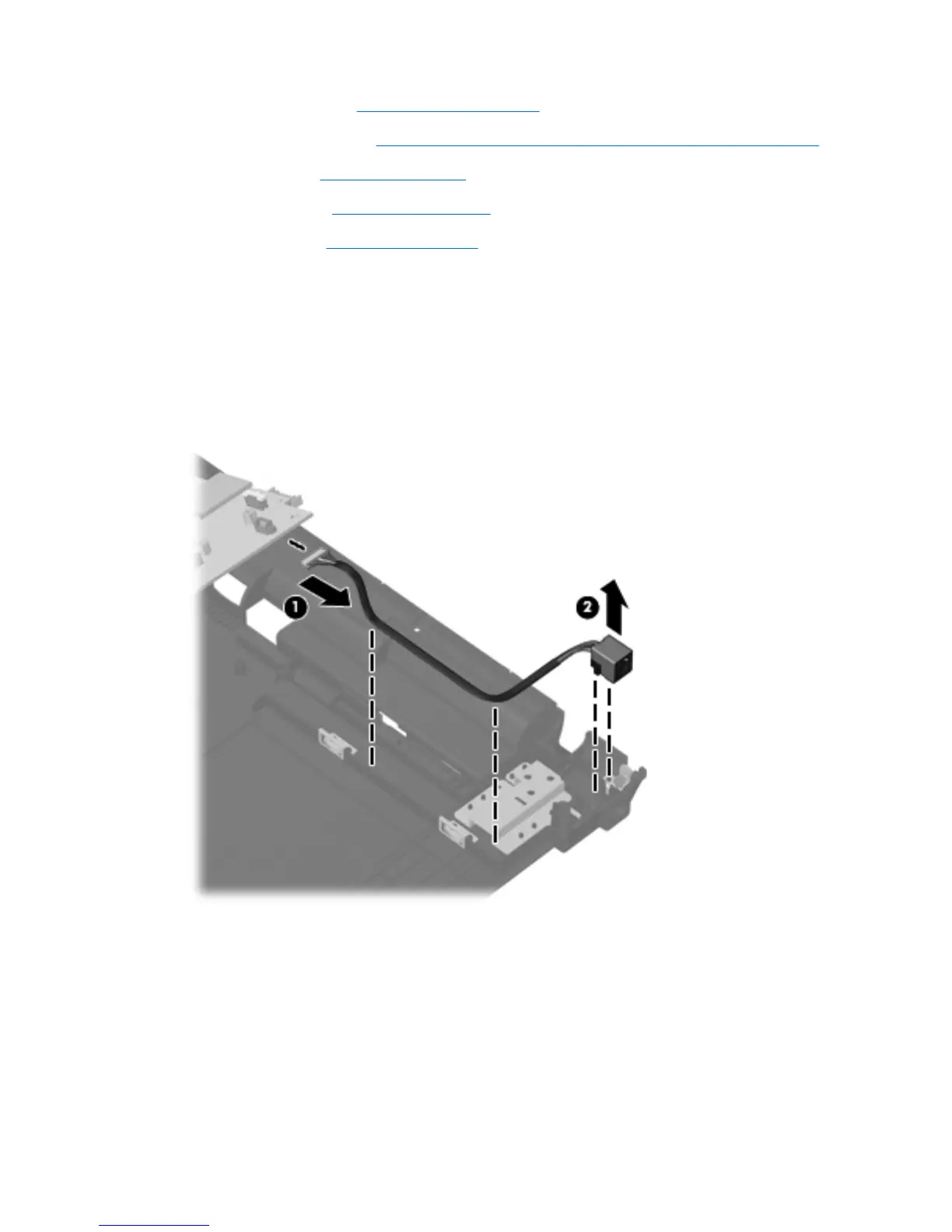

Remove the power connector assembly:
1. Position the computer right-side up with the right side toward you.
2. Disconnect the cable from the system board (1) and remove the tape and cable from the routing
channel in the base enclosure.
3. Lift the power connector (2) from the base enclosure.
Reverse this procedure to install the power connector.
94 Chapter 4 Removal and replacement procedures
