HP ProBook 4525s - Notebook PC - Network); Universal Serial Bus

HP ProBook 4525s - Notebook PC
149 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

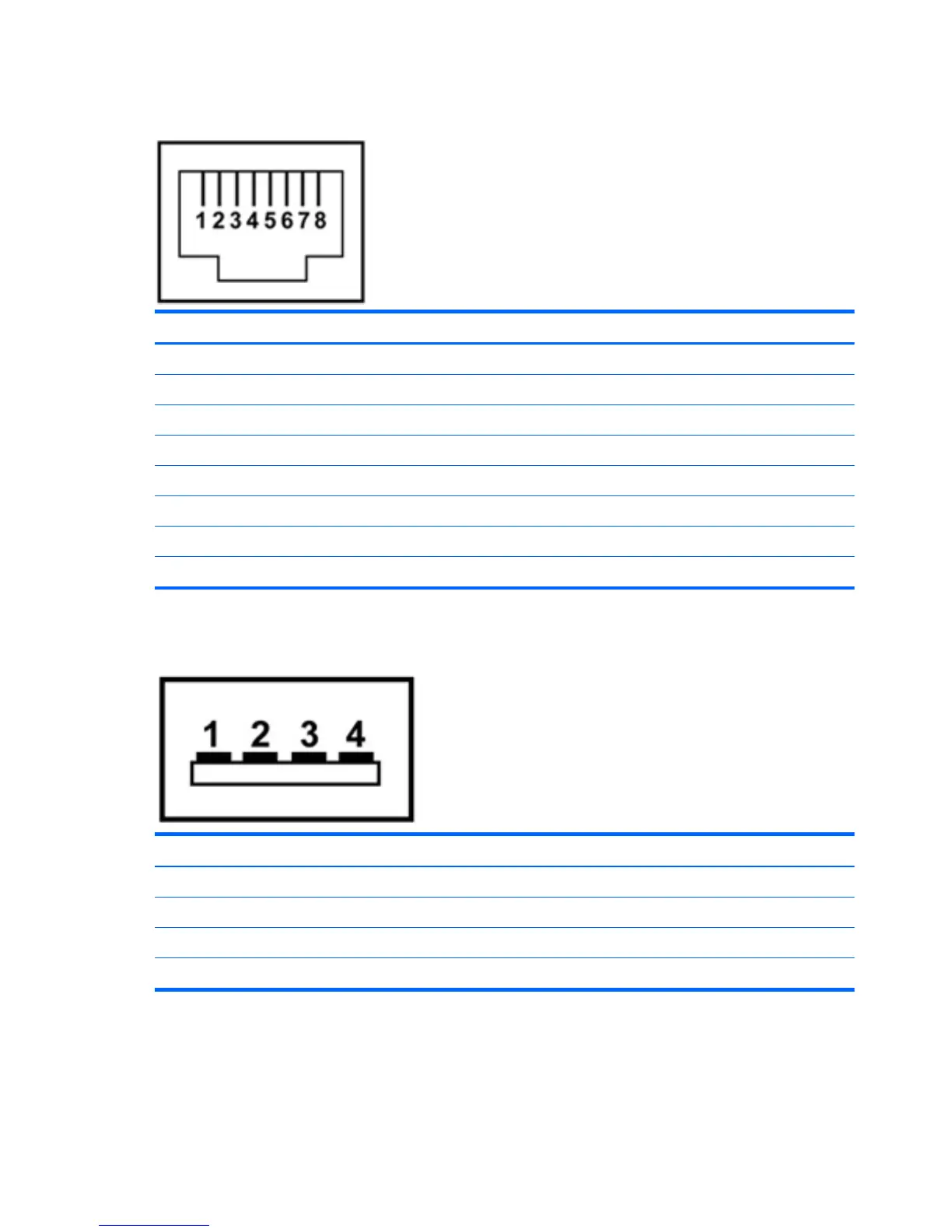

RJ-45 (network)
Pin Signal
1Transmit +
2Transmit -
3 Receive +
4Unused
5Unused
6 Receive -
7Unused
8Unused
Universal Serial Bus
Pin Signal
1 +5 VDC
2 Data -
3 Data +
4Ground
128 Chapter 8 Connector pin assignments
