4. Remove the battery (see Battery on page 45).
5. Remove the following components:
a. Switch cover and keyboard (see
Switch cover and keyboard on page 46).
NOTE: It is not necessary to disconnect the keyboard to remove or install the heat sink.
b. Thermal shield (see Thermal shield on page 56).
Remove the heat sink:
●
For computers with discrete subsystem memory on the system board, follow these steps:
1.
Position the computer right-side up with the front toward you.

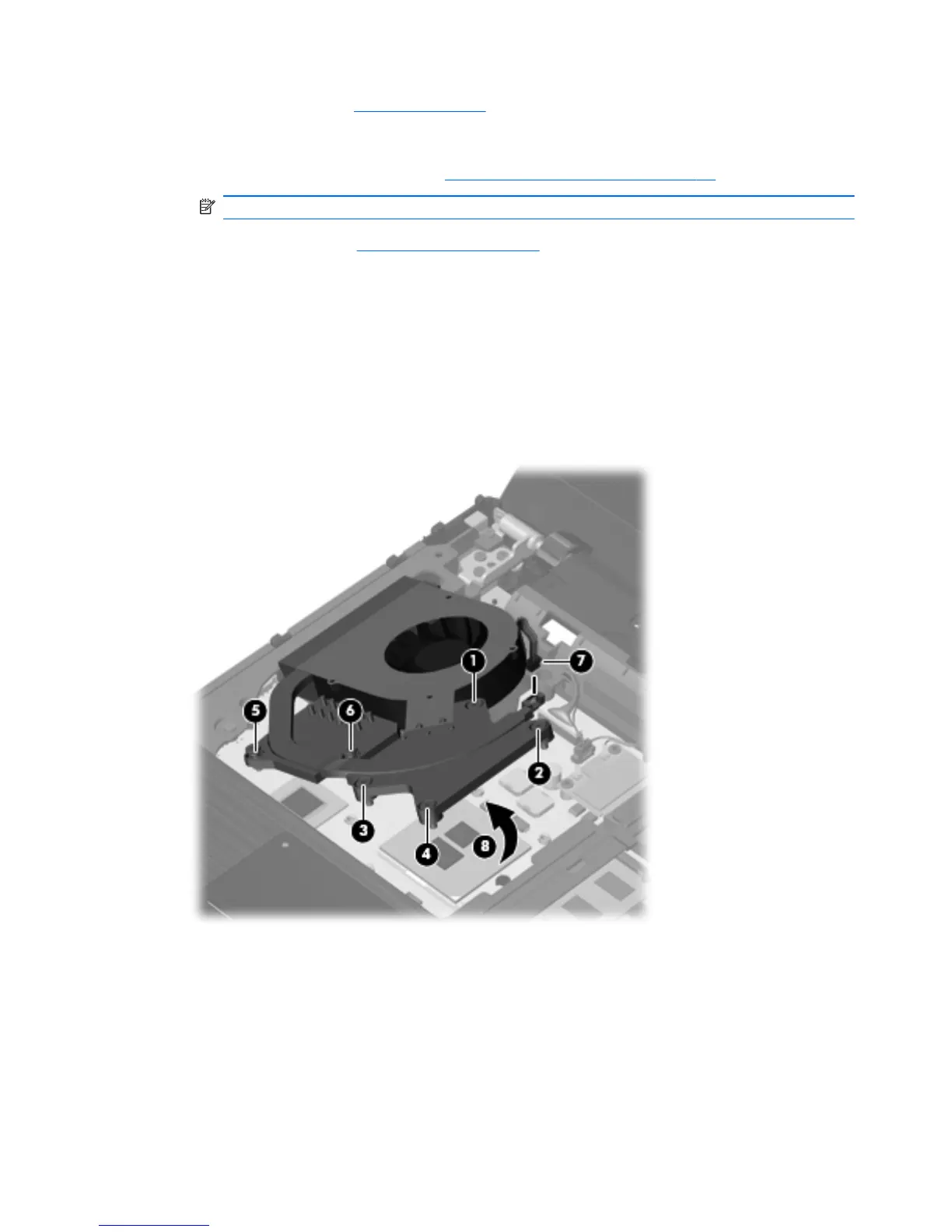

2. Following the sequence stamped into the heat sink, loosen the six captive screws (1), (2), (3),
(4), (5), (6), around the processor.
3. Disconnect the fan cable from the system board (7), and then remove the heat sink (8).
62 Chapter 4 Removal and replacement procedures
