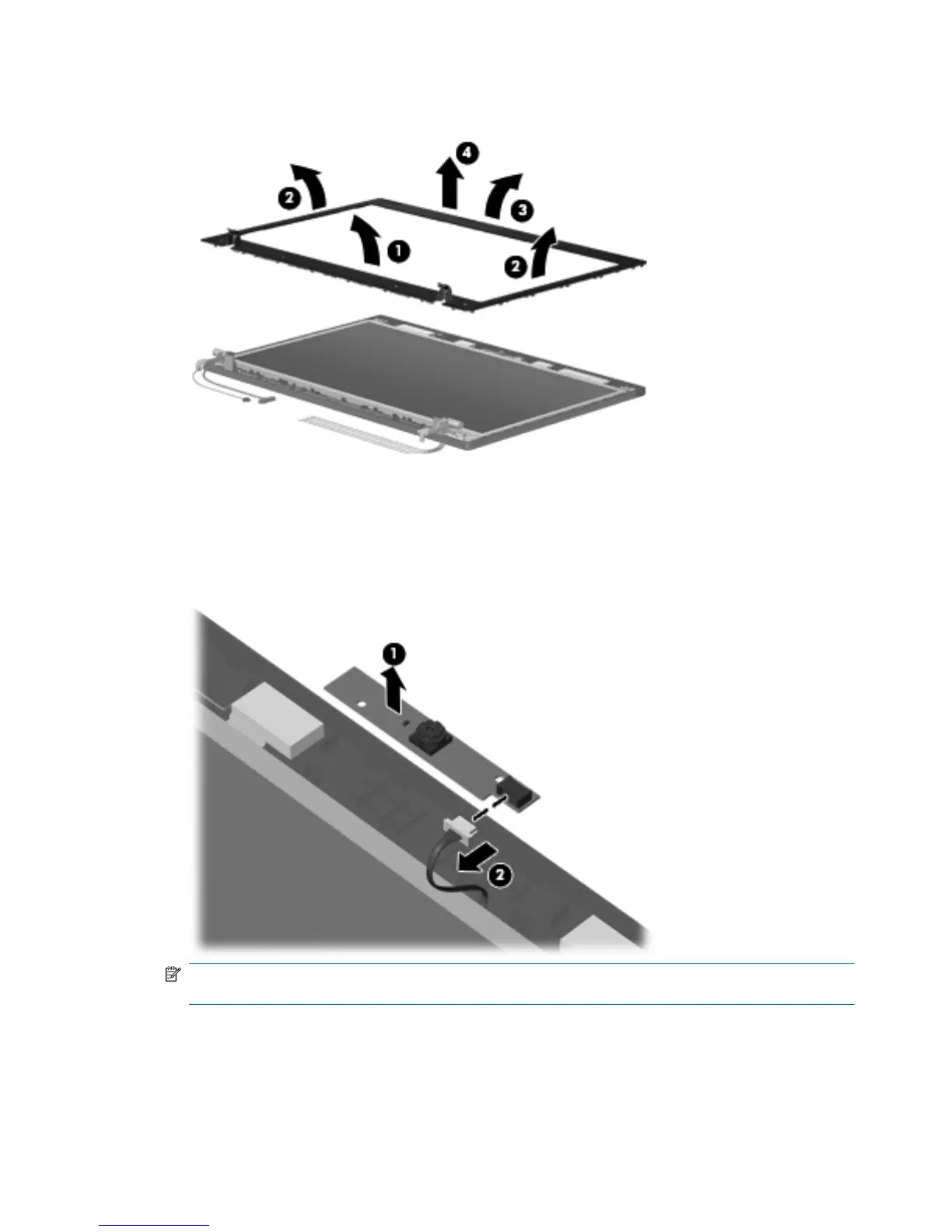

7. Lift the bezel (4) until it disengages completely.
8. If it is necessary to replace the webcam module, gently pull the webcam module away from the
double-sided tape on the display enclosure (1) and disconnect the webcam cable from the module
(2). The webcam module and cable can be ordered by using spare part number 598671-001.
NOTE: To replace the webcam module in the display enclosure, align the holes on the webcam
module with the pins on the display enclosure and press onto the double-sided tape.
9. If it is necessary to replace the display hinges, remove the Torx screws (1) at the top and bottom
of the display that secure the display to the display housing.
74 Chapter 4 Removal and replacement procedures
