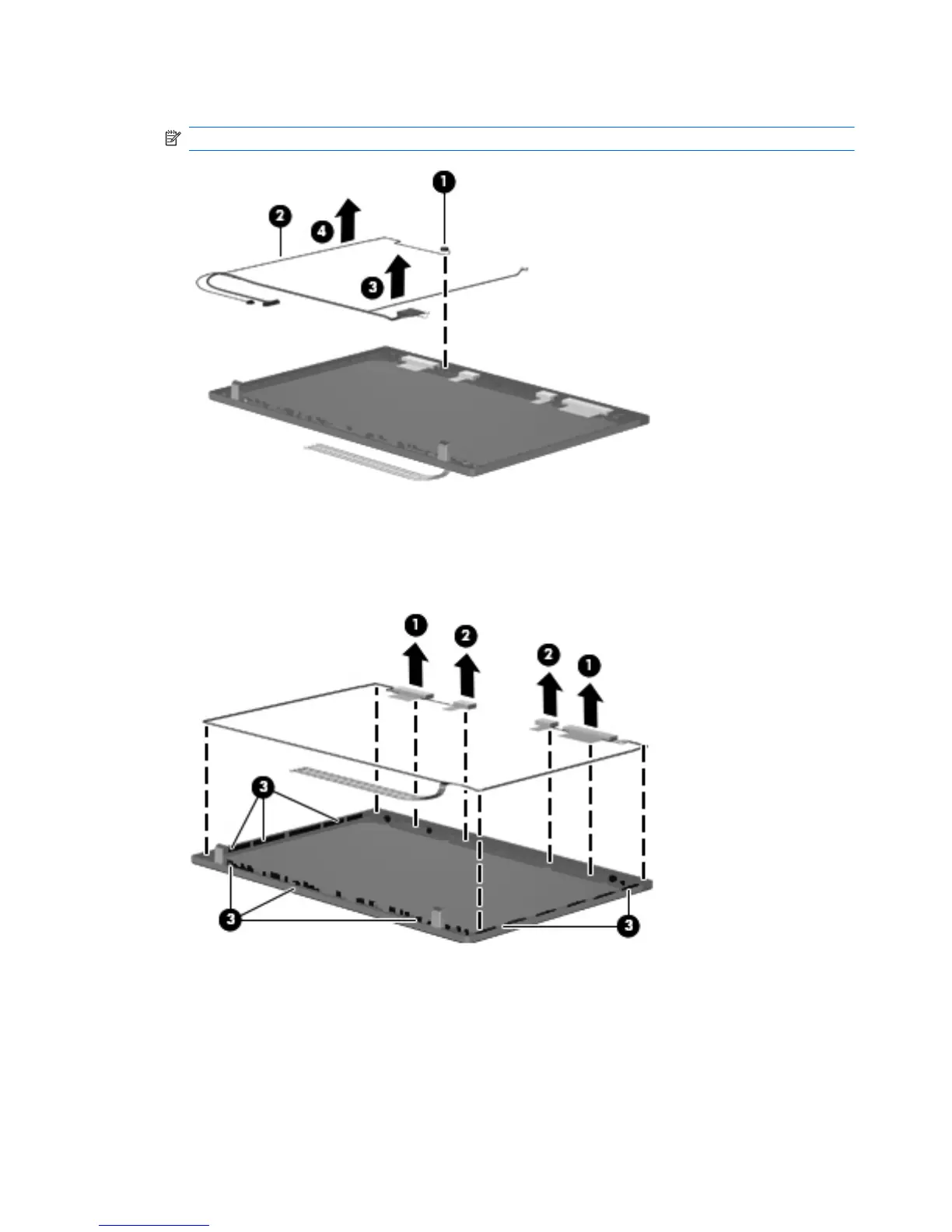

2. Remove the webcam cable (3) from the raceway and then, remove the cable assembly (4).
NOTE: The cables are attached to the display panel with adhesive tape.
To remove the WLAN and WWAN antennas:
1. Peel the WLAN (1) and WWAN (2) antenna receivers from the housing.
2. Route the antenna cables (3) out of the routing channels in the inside of the display housing.
Reverse this procedure to install the display assembly.
76 Chapter 4 Removal and replacement procedures
