HP ProBook 4525s - Notebook PC

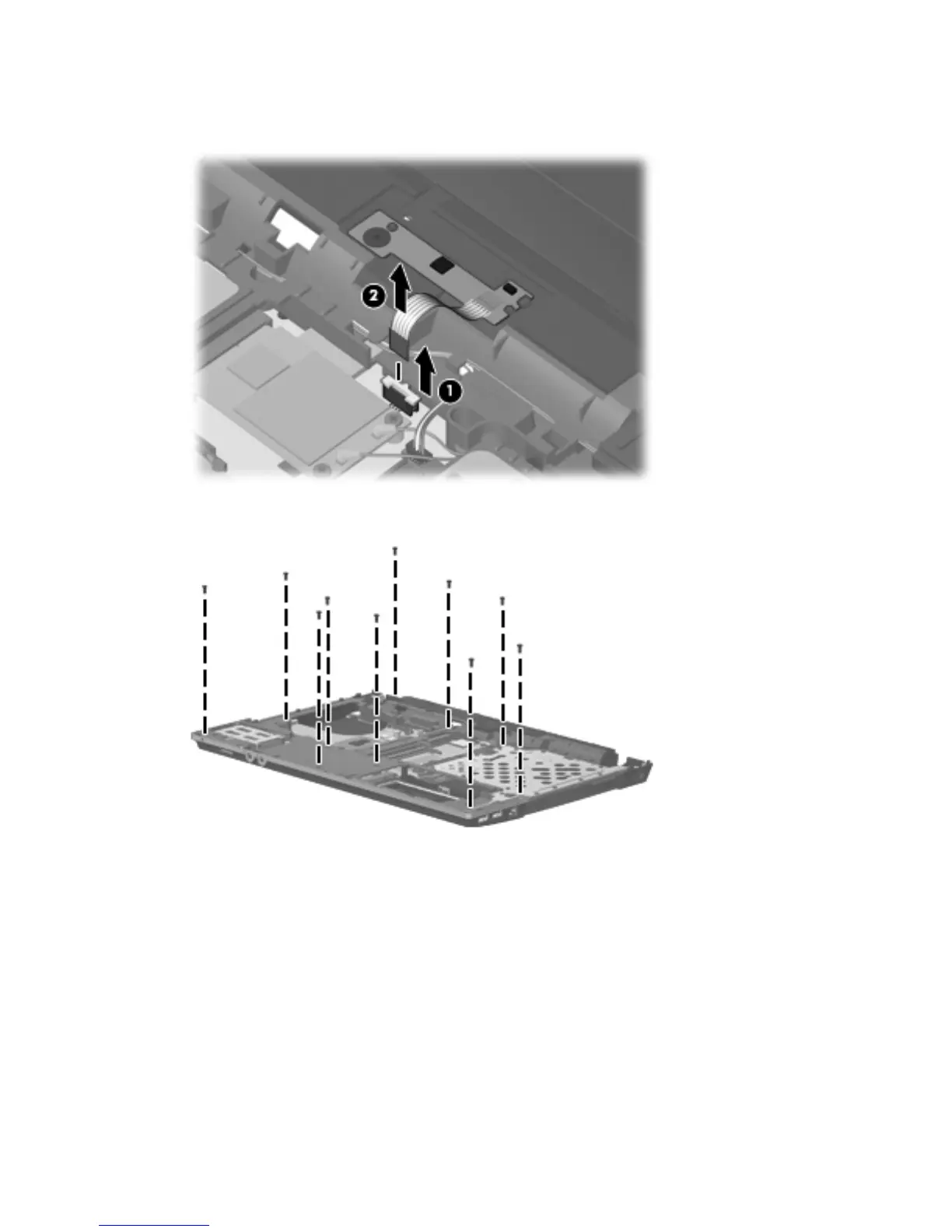

2. Disconnect the power button board cable from the system board by releasing the ZIF connector
(1), and then disconnecting the cable (2).
3. Remove the 10 Torx M2.5×6.0 screws that secure the top cover to the computer.
78 Chapter 4 Removal and replacement procedures
