EL-MF877-00 Page 4
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

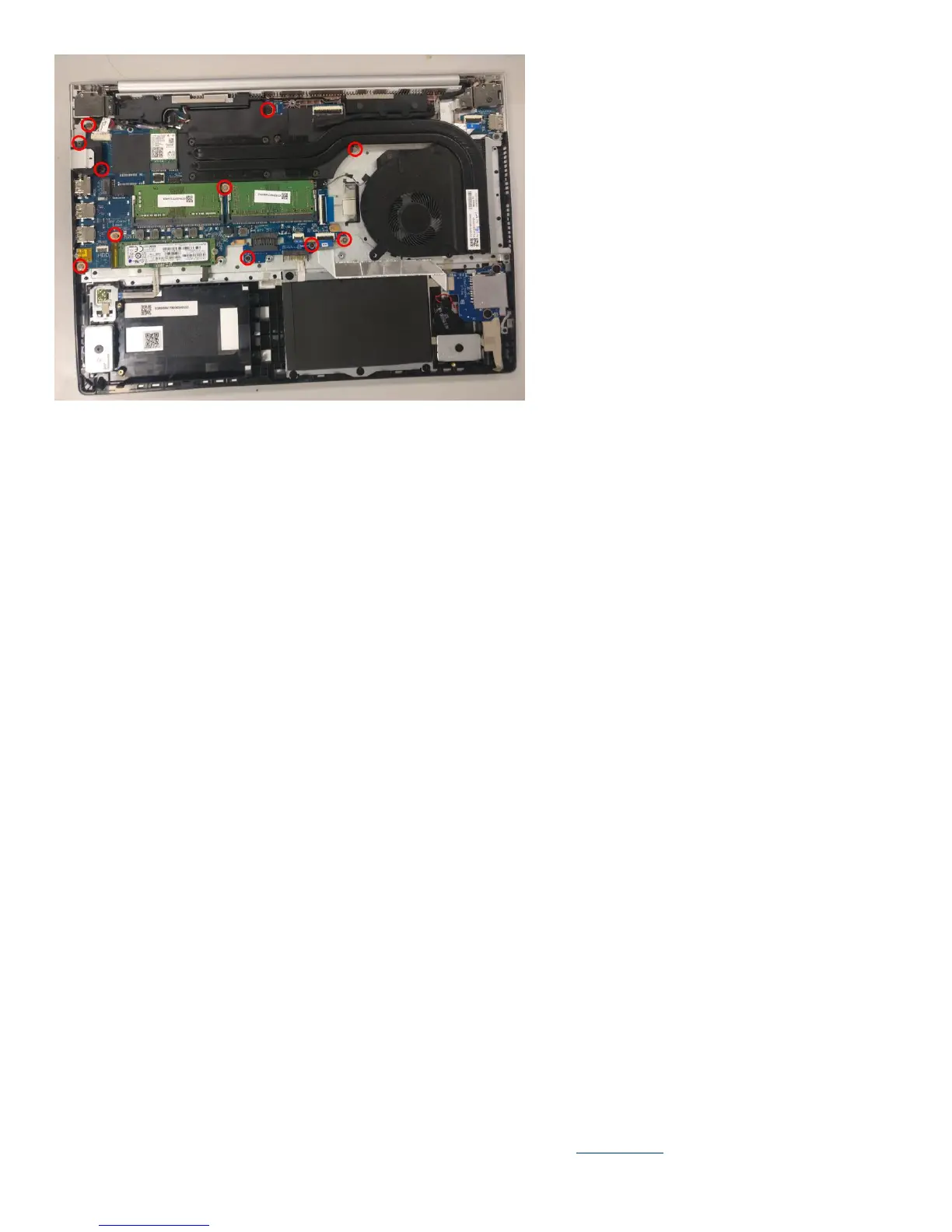

4 Release below cable: Speaker cable, DC-IN Cable, HDD cable, Finger Printer cable, backlight cable, TP cable , SD
card cable, KB Cable, Power board cable ,EDP cable ,WWan antenna cable, Wlan antenna cable. And Disassemble
Type-C BKT, RJ-45. Final step release main board
To Next Page
