c. WWAN cables (see WWAN module on page 45)
d. WLAN cables (see
WLAN module on page 42)
e. Top cover (see
Top cover on page 56)

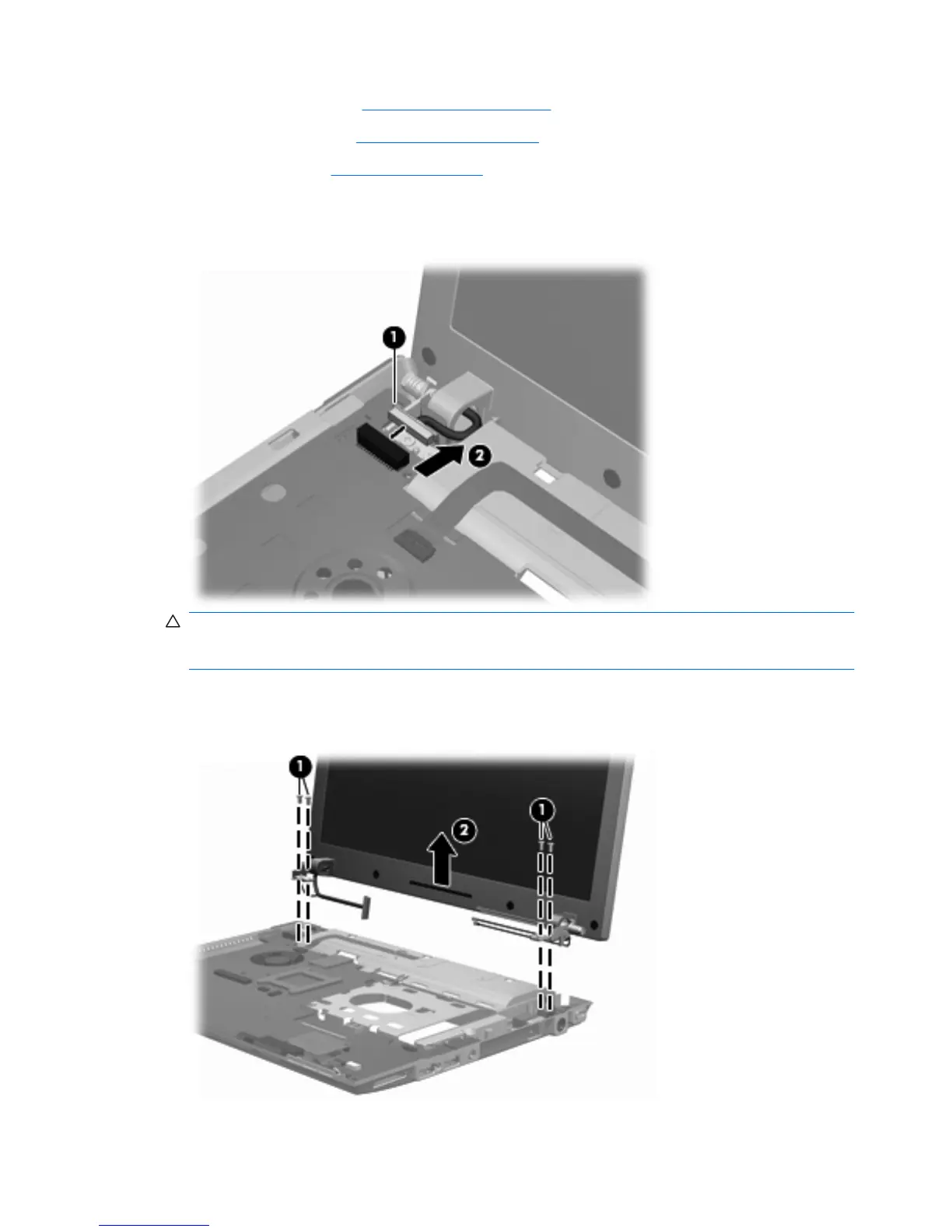

Remove the display assembly:
1. Disconnect the display cable (1) from the system board (2).
CAUTION: Support the display assembly when removing the following screws. Failure to support
the display assembly can result in damage to the display assembly and other computer
components.
2. Remove the four PM2.5×5.0 screws (1) that secure the display assembly to the base enclosure.
3. Lift the display assembly (2) straight up and remove it from the base enclosure.
