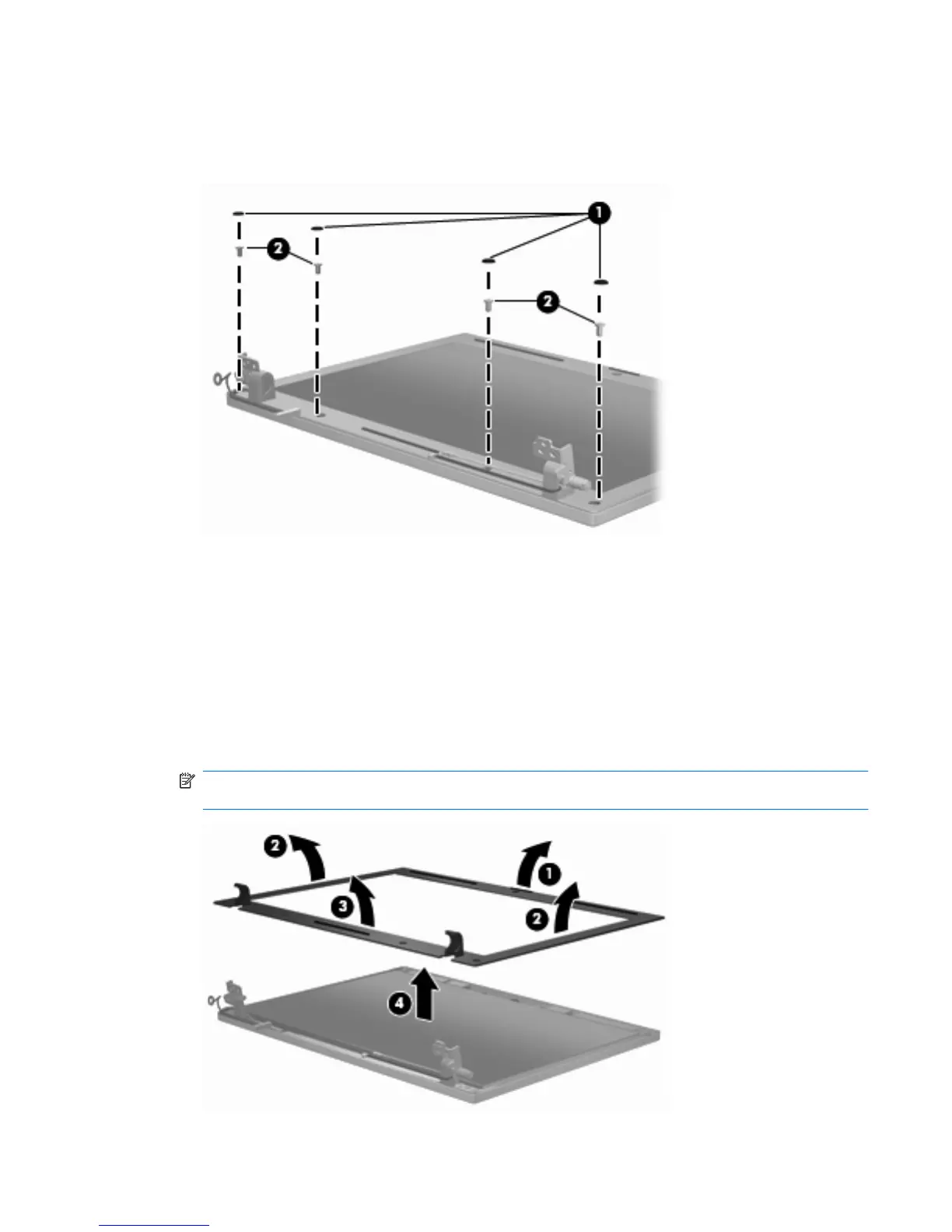

4. If it is necessary to replace the display bezel, display enclosure, or display hinges, remove the four
Mylar screw covers (1) and the four PM2.5×5.0 screws (2) that secure the display bezel to the
display assembly. The screw covers are available in the Rubber Kit, spare part number
610829-001.
5. Remove the bezel:
a. Flex the top (1) of the bezel from the inside edge until it disengages from the display back
cover.
b. Flex the inside edge of the left side and the right side (2) of the bezel until it disengages from
the display back cover.
c. Flex the bottom (3) of the bezel from the inside edge until it disengages from the display back
cover.
d. Remove the display bezel from the display back cover (4).
NOTE: While removing the display bezel, gently remove the double-sided tape that attaches the
bezel to the display panel.
