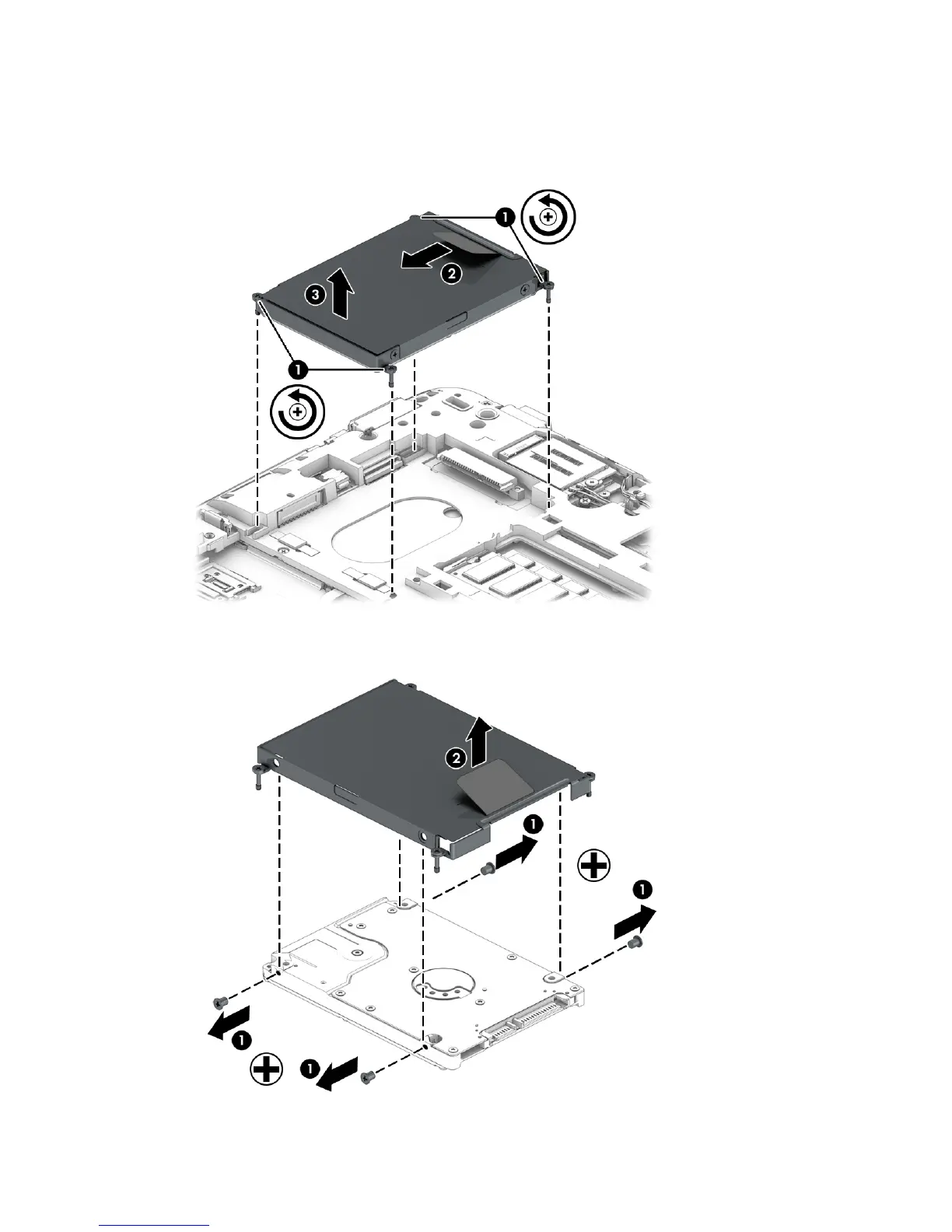

Remove the hard drive:
1. Loosen 4 P1 captive screws or remove 4 M 2.0x8L P1 screws (1).
2. Pull the plastic tab (2), and then remove the hard drive (3).
3. If it is necessary to disassemble the hard drive, remove the 4 screws (1), and then remove pull the tab
(2) to remove the cover from the hard drive.
40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
