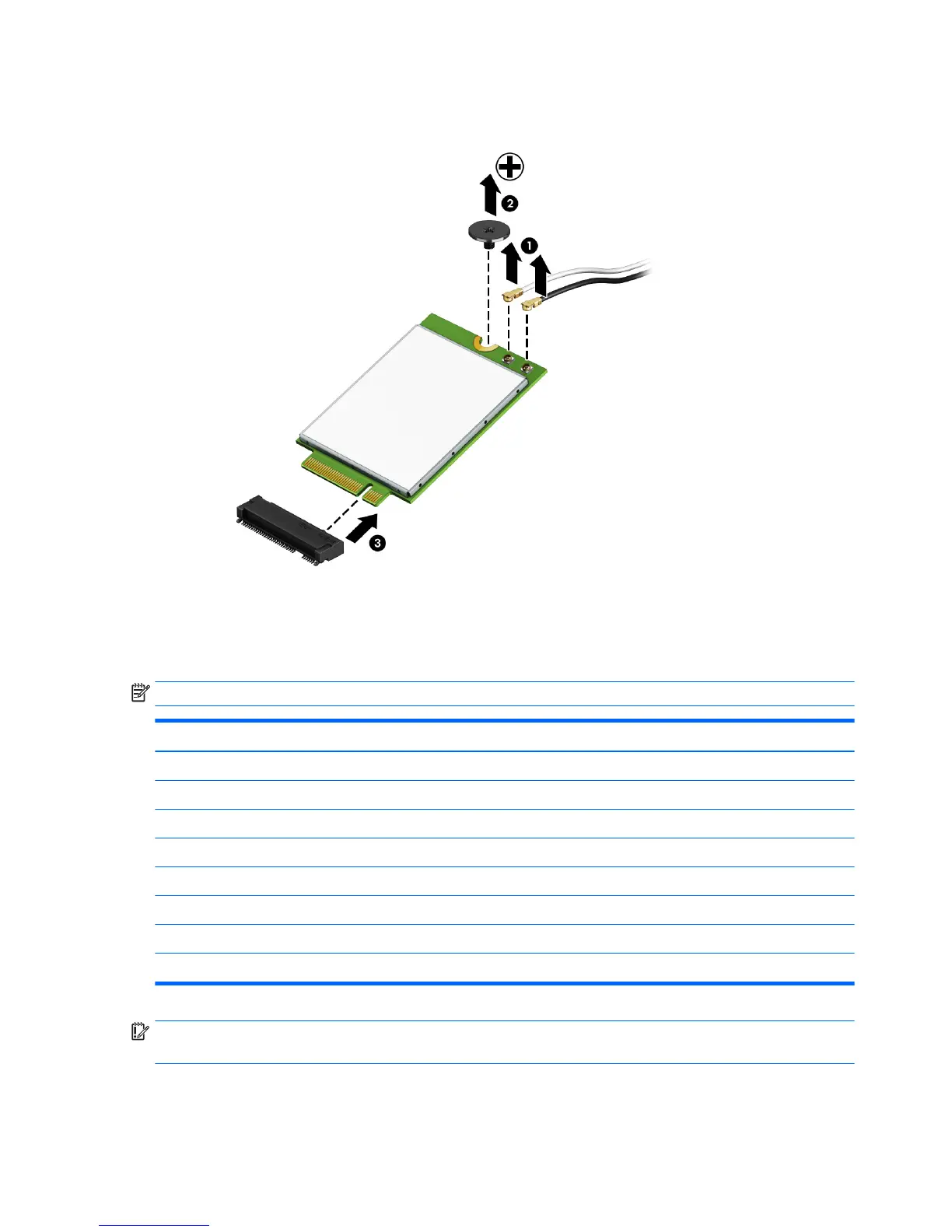

2. Remove 1 M 2.0x 3L P1screw (2), and then remove the WWAN module.
Reverse this procedure to install the WWAN module.
WLAN module
NOTE: The WLAN module spare part kit includes the cable.
Description Spare part number
WLAN
Broadcom Nami 43142 bgn 1x1 + BT 4 LE PCIe+USB NGFF 1630 MOW 792608-001
Realtek Shanks RTL8188EE bgn 1x1 PCI-e NGFF 2230 M.2 WW (NB) 792609-001
11AC 7265NV M.2 D0 MOW 793840-001
11ac 2x2 Intel 8260NGW Snoweld Peak 2 806721-001
11ac Intel 3165 M.2 MOW 806723-001
11 ABGN+BT4 x 2.2 LUFFY INDO 812132-001
Broadcom Luy 943228 abgn 2x2 + BT 4 LE PCIe+USB NGFF 2230 MOW 797884-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal and
replacement
Before removing the WLAN, follow these steps:
44 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
